KMP
- Features
- Fast LID measurements for F&E and EOL
Description

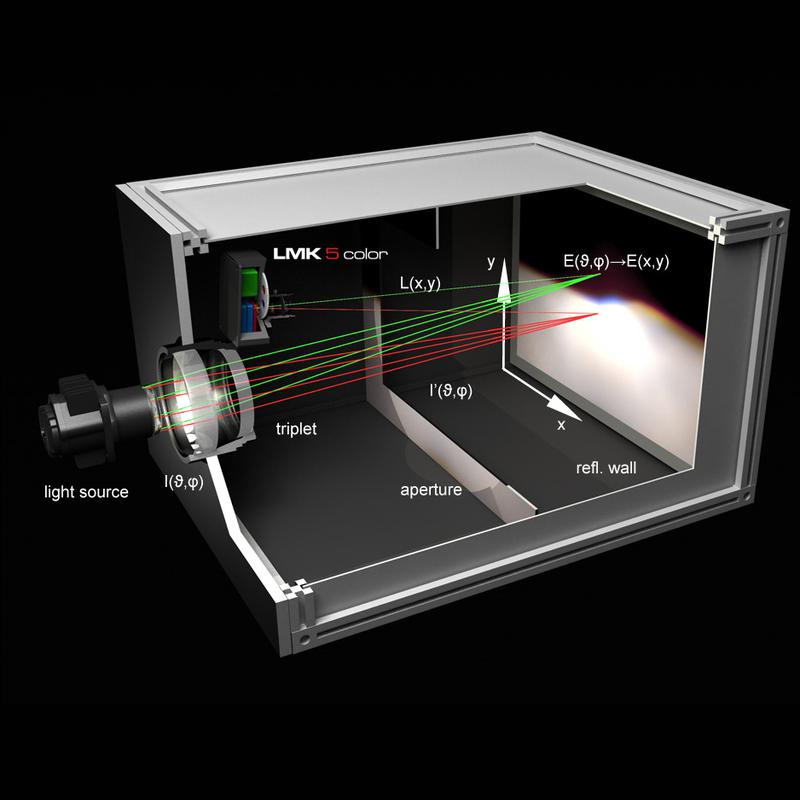

The KMP is the solution for bringing indirect light measurement technology cost-effectively to places with limited space. Its light and compact design enables integration into production lines, positioning next to production or in small lighting laboratories. Thanks to the integrated LMK, it can deliver luminous intensity, illuminance or color coordinates as measurement results. For R&D or larger measurement objects, we have the BV room in our product range.
Components- LMK 6 or LMK 6 color
- Optional further hardware (e.g. PC, power supplies)
- LabSoft for F&E
- LID Checker for F&E and EOL
- LightChecker for EOL
To make sure that your KMP is perfectly adapted to your needs and specifications, we offer extensive services:
- Photometric calibration (luminous intensity in cd, illuminance in lx, luminous flux in lm, luminance in cd/m²)
- Geometrical calibration (spherical coordinate system in °, metric coordinate system in mm)
- Selection of suitable front lens
- Maintenance and support
| Basic technical data | |
|---|---|
| Size of the device under test | Automotive: < 120 mm Airfield: < 190 mm 1 |
| Typical measuring distance | Automotive: 25 m – ∞ Airfield: 25 m – ∞ |
| Object field | Automotive: hor. ±24° by vert. ±15° Airfield: Hor. ±22°; vert. ±15° |
| Resolution | Automotive: ≥ 0.01° Airfield: ≥ 0.1° |
| Measuring range | Automotive: 0.3 cd – 50 Mcd Airfield: 5 cd – 10 Mcd |
| Measurable contrast2 | Automotive: 1:10 000 Airfield: 1:100 |
| Measuring time | Automotive: seconds Airfield: seconds |
| Dimensions | Automotive: 980 mm × 850 mm × 650 mm (L × W × H) Airfield: 980 mm × 850 mm × 650 mm (L × W × H) |
| 1 Depending on the measuring task and the front lens, it is possible to measure larger objects. 2 CIE244:2021 f25 |
|
