LMK SCREEN PHOTOMETRY
BV ROOM
- Features

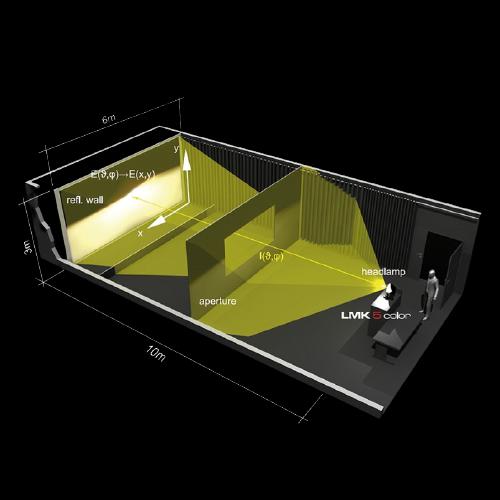

- The BV room is based on our core product, the LMK, our ILMD system. It is integrated into a custom-designed laboratory and returns luminous intensities, illuminances, or even color coordinates as measurement results.
- This system can be adapted to a wide range of applications, as it is almost freely scalable in terms of resolution and measuring distance. Thus, setups with a very short measuring distance of less than 1 m are possible for small measurement objects. However, large laboratories with a measuring distance of 10 - 25 m can also be realized for high-precision measurements in the automotive headlamp sector.
- Due to its size, the BV room is mainly used in the research and development area but also partly for production support. We also offer the KMP for EOL measurements.
Description
The BV room is based on our core product, the LMK, our ILMD system. It is integrated into a custom-designed laboratory and returns luminous intensities, illuminances, or even color coordinates as measurement results.This system can be adapted to a wide range of applications, as it is almost freely scalable in terms of resolution and measuring distance. Thus, setups with a very short measuring distance of less than 1 m are possible for small measurement objects. However, large laboratories with a measuring distance of 10 - 25 m can also be realized for high-precision measurements in the automotive headlamp sector.
Due to its size, the BV room is mainly used in the research and development area but also partly for production support. We also offer the KMP for EOL measurements.
| Basic technical data | |
|---|---|
| Size of the device under test | automotive1: < 2 m general lighting: < 2 m |
| Typical measuring distance | automotive1: 3.16 m to 25 m general lighting: 1 m to 3 m |
| Object field | automotive1: hor. ±90° by vert. ±22° (3.16 m) | hor. ±90° by vert. ±8.5° (10 m) general lighting: Hor. ±180°; vert. ±90° depending on size of laboratory and positioning system |
| Resolution | automotive1: 0.005° to 0.05° general lighting: 0.1° |
| Measuring range | automotive1: 0.01 cd - 10 Mcd general lighting: 0.01 cd - 10 Mcd |
| Measurable contrast2 | automotive1: 1:10 000 general lighting: 1:1 000 |
| Measuring time | automotive1: seconds to minutes3 general lighting: seconds |
| 1We offer a jointly patented solution with LMT for automotive headlight measurements 2CIE244:2021 f25 3With image stitching |
|
