LMK SOFTWARE & ADD-ONS
- Our production-accompanying software LMK LightChecker combines efficient photometric measurement for short cycle times with automated evaluation options. LMK LightChecker offers various solutions for different requirements in the production line, such as the use of communication protocols (TCP/IP) to automate the entire system. In addition, the LMK LightChecker offers customized software functions for frequently occurring measurement tasks and objects with clearly defined test or requirement profiles.
- The test data obtained is stored in predefined measurement protocols.
- The LMK LightChecker is available in the following versions: SymbolChecker, LEDChecker and LIDChecker
The SymbolChecker is an application of the LMK LightChecker, which enables the automated measurement of the average, maximum, and minimum luminance of a backlit symbol. In addition, further quality criteria, such as uniformity can be automatically determined from this measurement data. In combination with an LMK color, automated color measurement for testing color tolerances is also possible.
This application is designed for measurements and tests of backlit symbols in the interior of the automotive industry but is also increasingly used for the evaluation of small and very small display surfaces.
With the help of a simple user interface, reference symbol data can be learned quickly and close to the process to evaluate the symbol quality of the test specimen by sampling.
The LEDChecker is an application of the LMK LightChecker that performs an automated measurement of the luminance or color of individual LEDs or LED assemblies. The test information derived from this is luminance and color differences, or color distances between these assemblies. For emergency luminaires, for example, the measurement of each individual LED is mandatory. For this task, a well adapted and absolutely calibrated camera measuring system is required. For example, it must be possible to produce measurement images with a high dynamic range for different
light colors as well as light intensities and luminances. In addition, geometric information on the position and orientation of the LEDs on the assembly is also checked.
All this information can only be determined with imaging luminance and colorimetric camera systems. The LEDChecker application includes software-based image processing operations specifically tailored to such measurement tasks. For example, LEDs can be automatically detected and separated from each other in the measurement image.

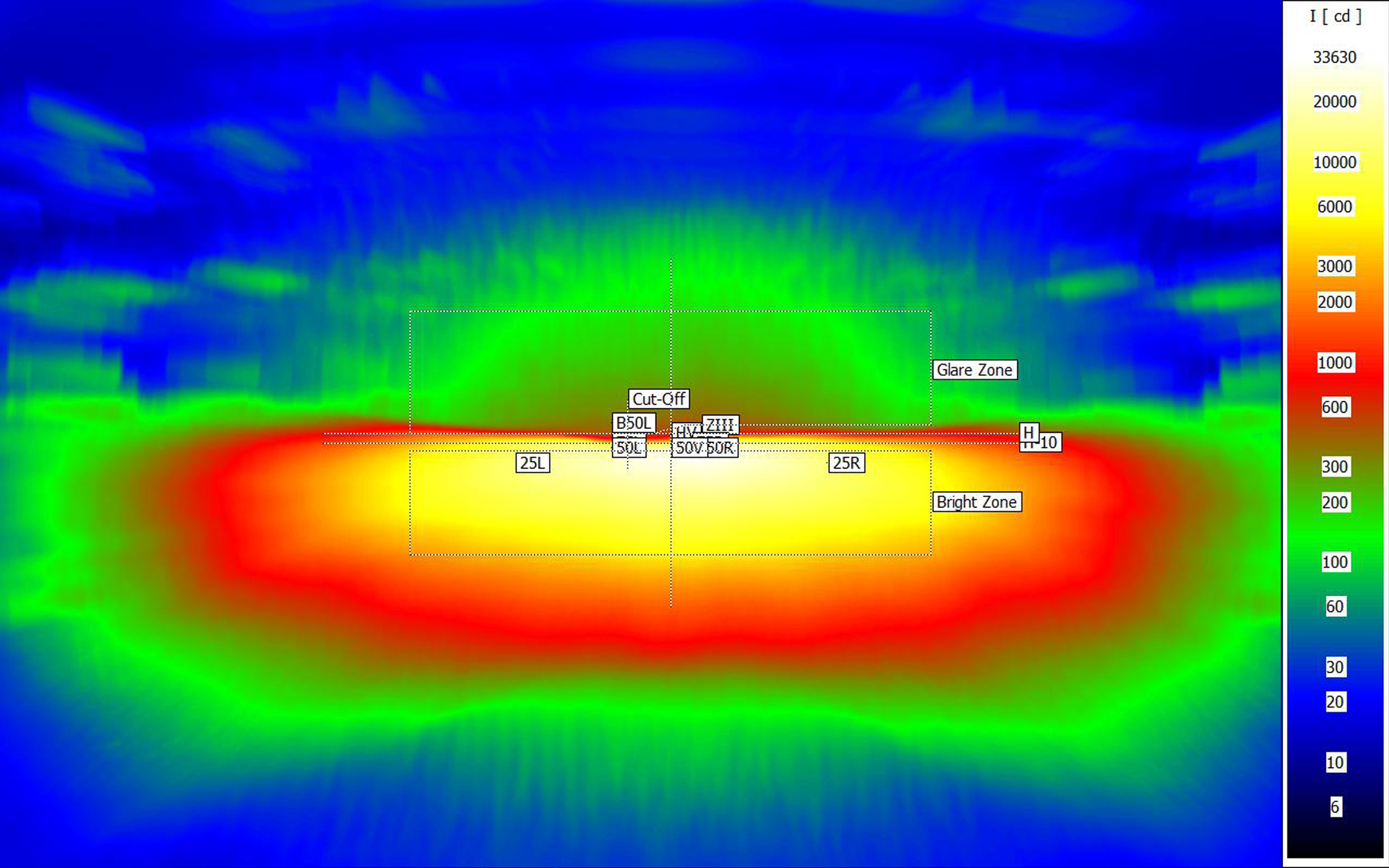

The LID Checker is used to record and analyze LID (luminous intensity distribution) recorded in either a KMP or a BV room. Those products use the principle of screen-based photometry to record LIDs indirectly.
