- Relay Lens RL1890-666
Relay lens

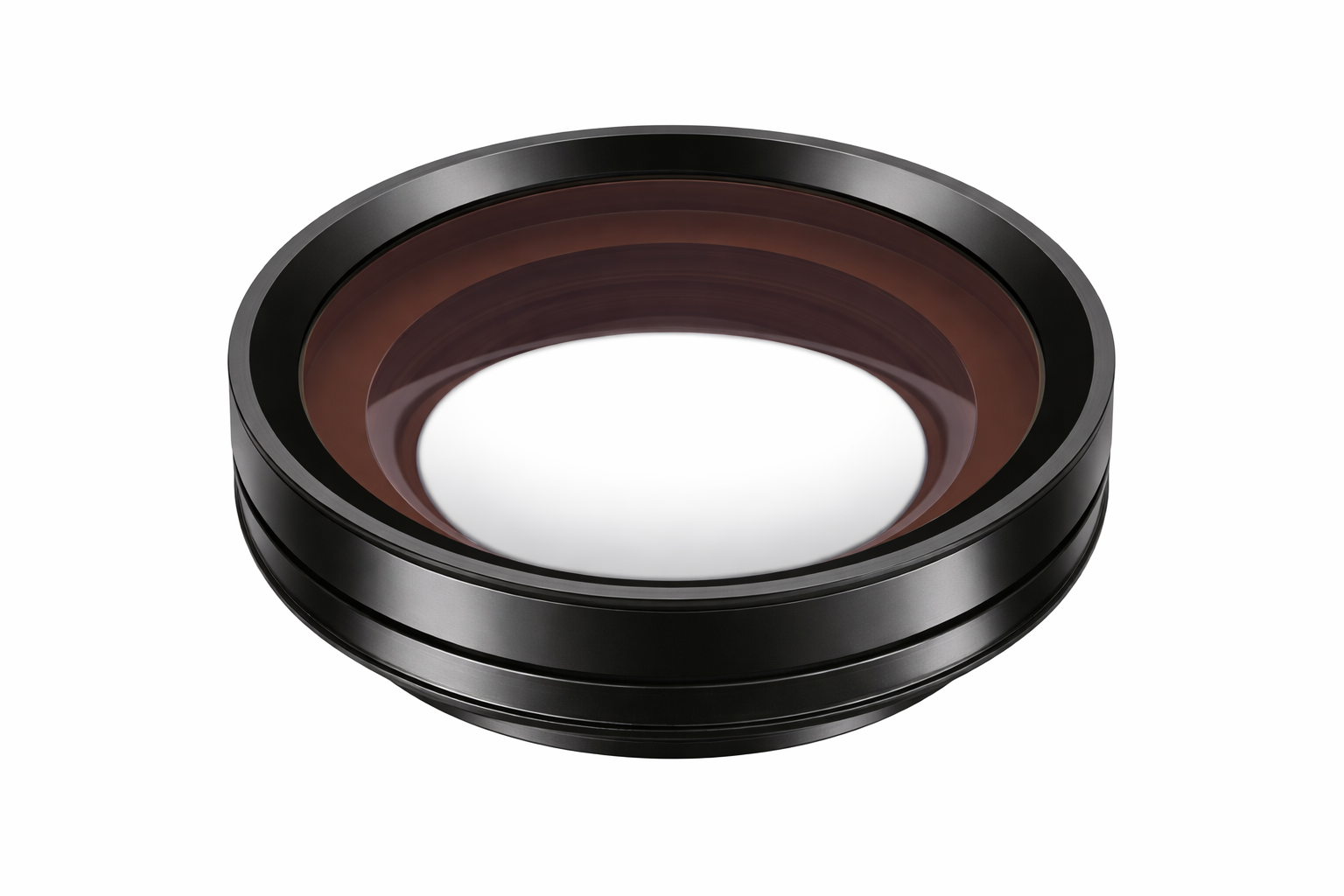

Relay Lens RL1890-666
Relay Lens RL1890-666
Product Features
- ① Custom product (customer-specific)
- ② Low distortion, compact lens body
- ③ Suitable for end-of-line inspection of 90° products
- ④ High cost-performance ratio
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL1890-666 | 90° | 17mm | 3mm | 0.127kg | 300-INF mm | <0.2% | Φ68x19.03mm |

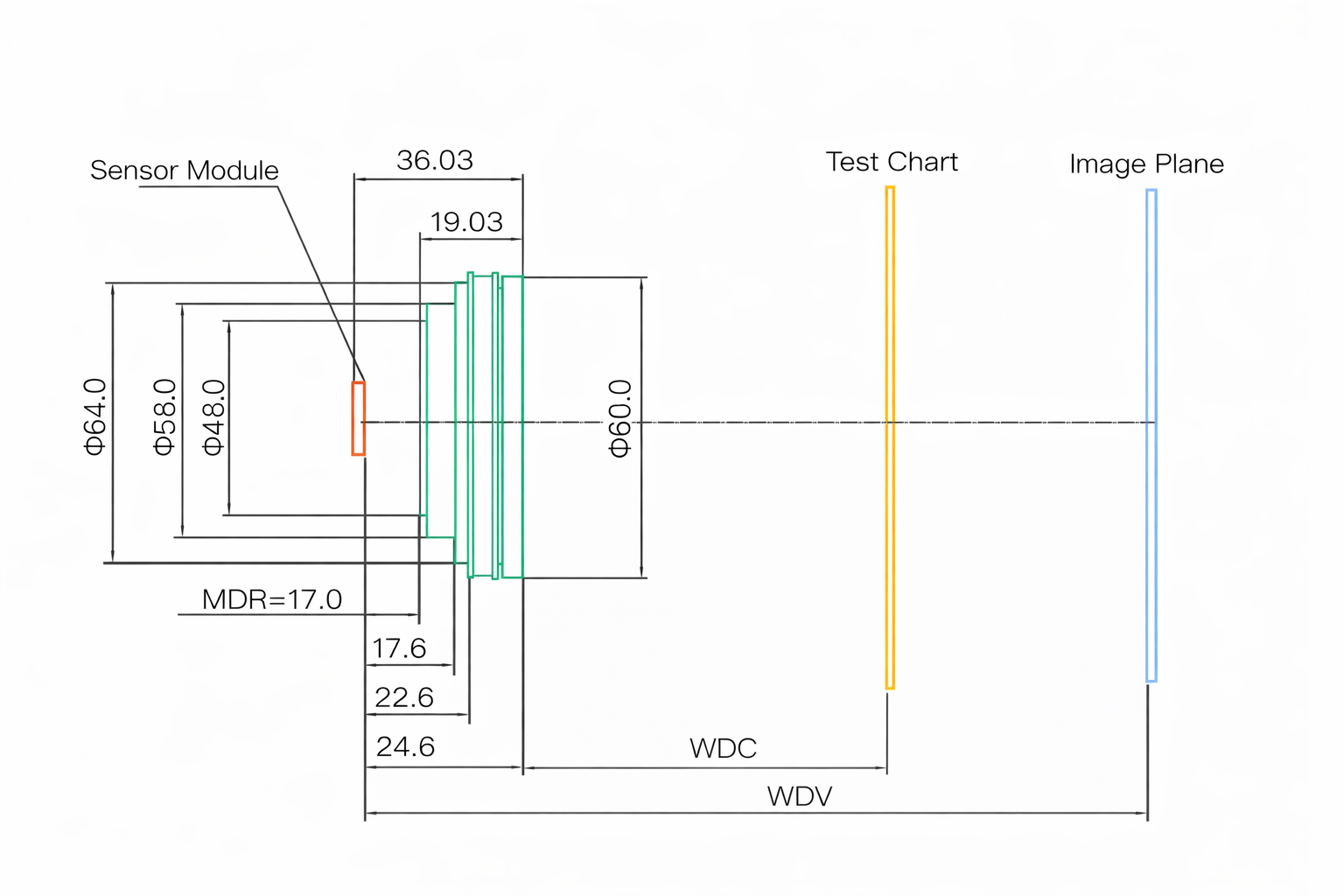

Mechanical Dimensions
*MDR: Installation distance from camera module to relay lens image-side
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
Test Chart Size at Maximum Field of View
| WDV (mm) | WDC (mm) | Test Chart Size (LxW) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera Module to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 400 | 263.5 | 505 | 284 | 463.5 | 347.6 |
| 1000 | 483.75 | 886 | 498.4 | 813.4 | 610 |
| 5000 | 826.79 | 1479.5 | 832.2 | 1358.1 | 1018.6 |
| Infinity | 998.46 | 1776.4 | 999.3 | 1630.8 | 1223.1 |
