OSA WAVEANALYZER
Coherent WaveAnalyzer 200A OSA
- Features

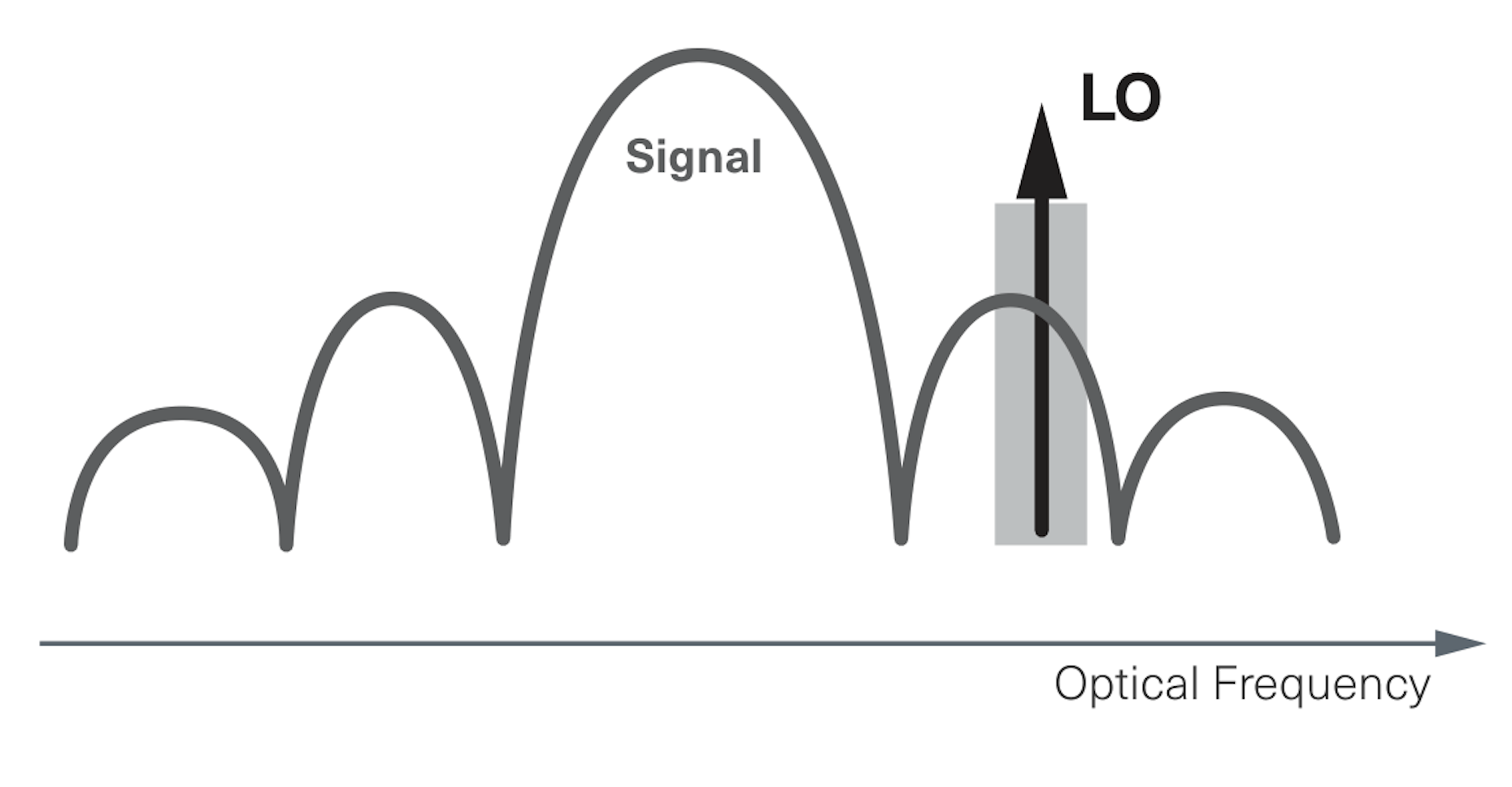

- Utilizes a rapidly scanning laser as a local oscillator (LO) to sweep across the target wavelength range.
- Detects beat frequency signals resulting from mixing with the test signal using a polarization-division multiplexing receiver.
- Features a design with no mechanical moving parts (except for fans), ensuring high stability and long-term reliable operation.

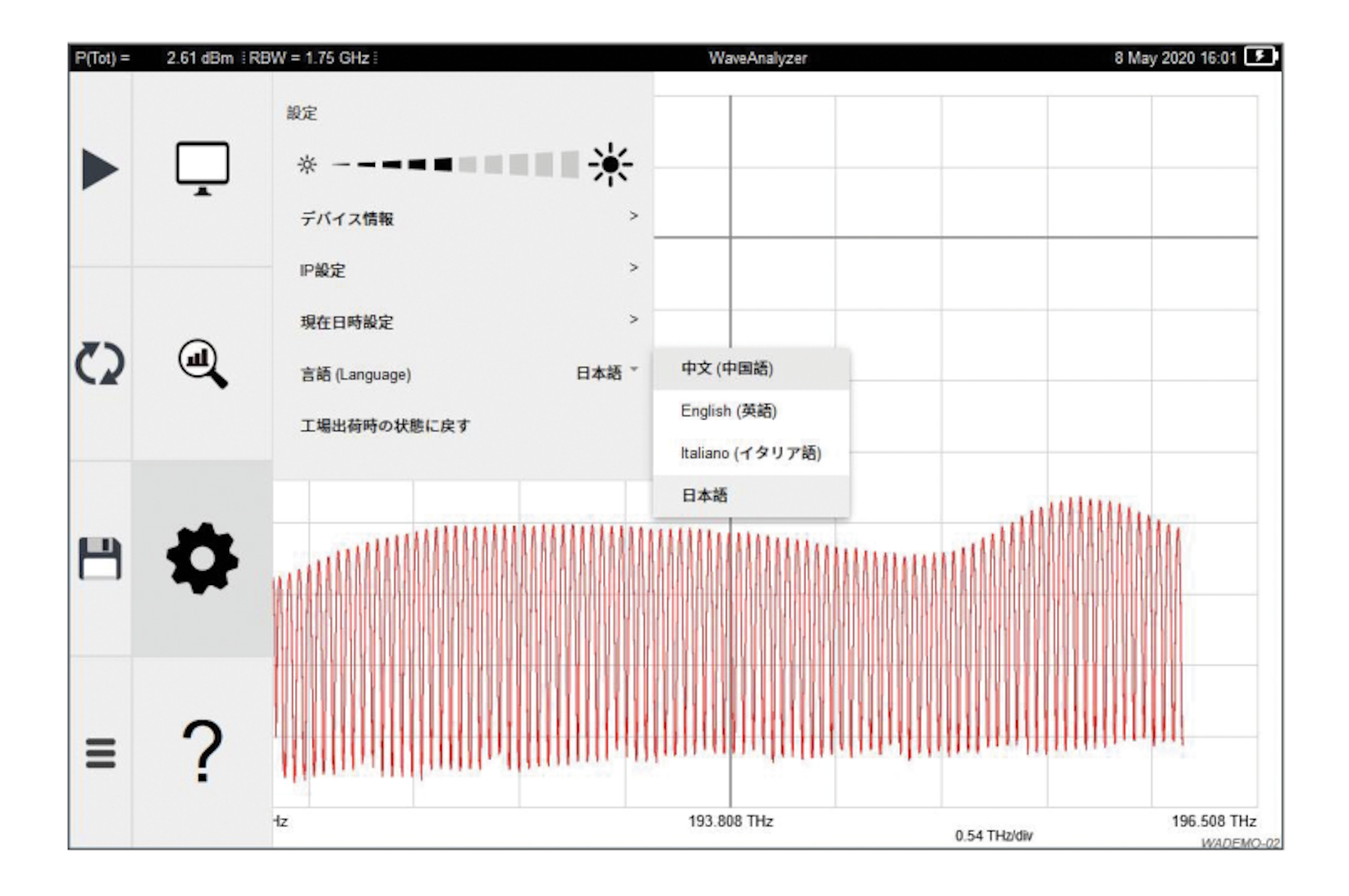

- WaveAnalyzer GUI: For data visualization and control (compatible with Windows 10/11).
- RESTful API: Allows remote access to analysis data via HTTP interface.
- Ethernet & USB Connectivity: Enables signal monitoring and data acquisition over LAN.
Description

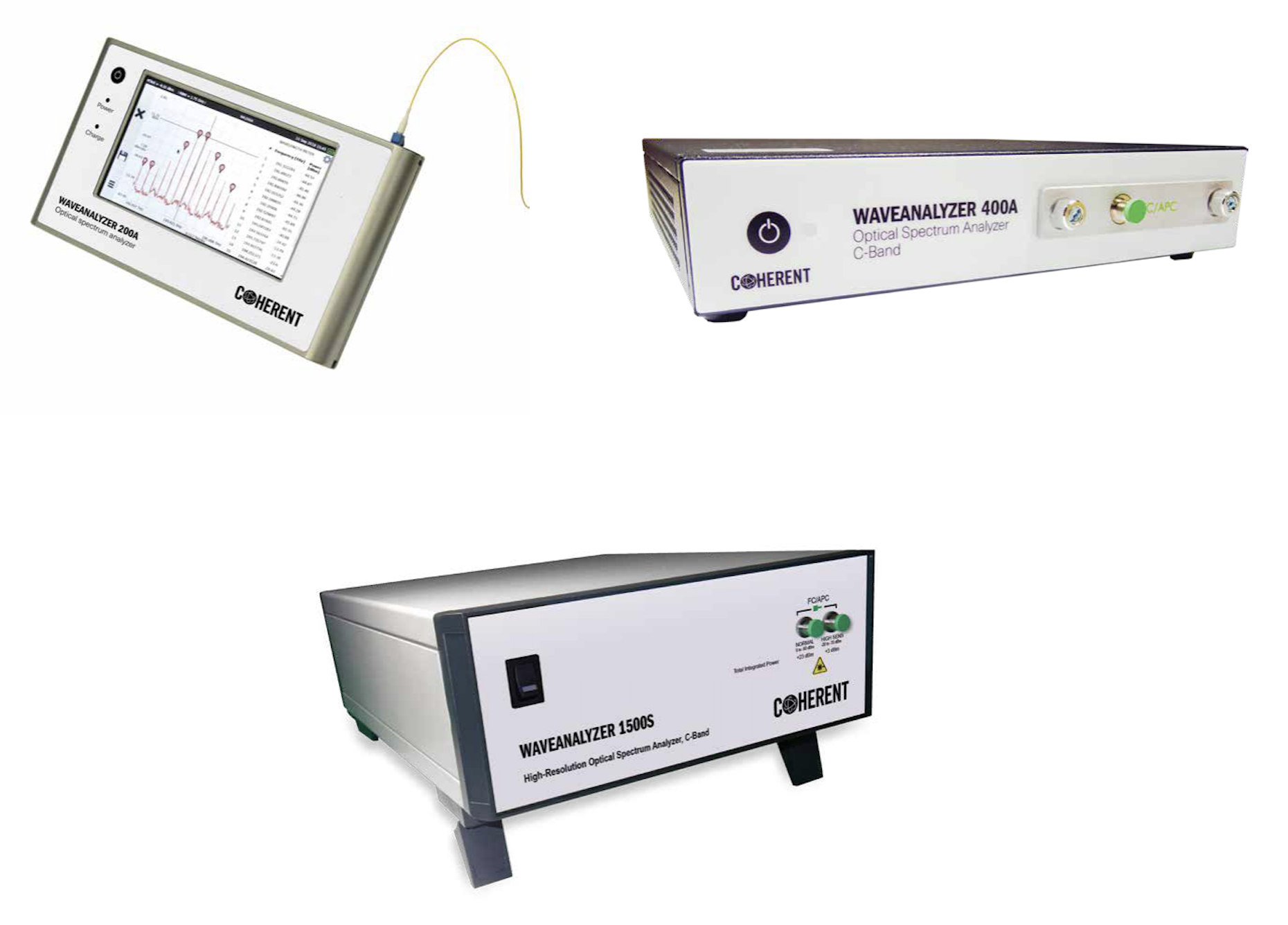

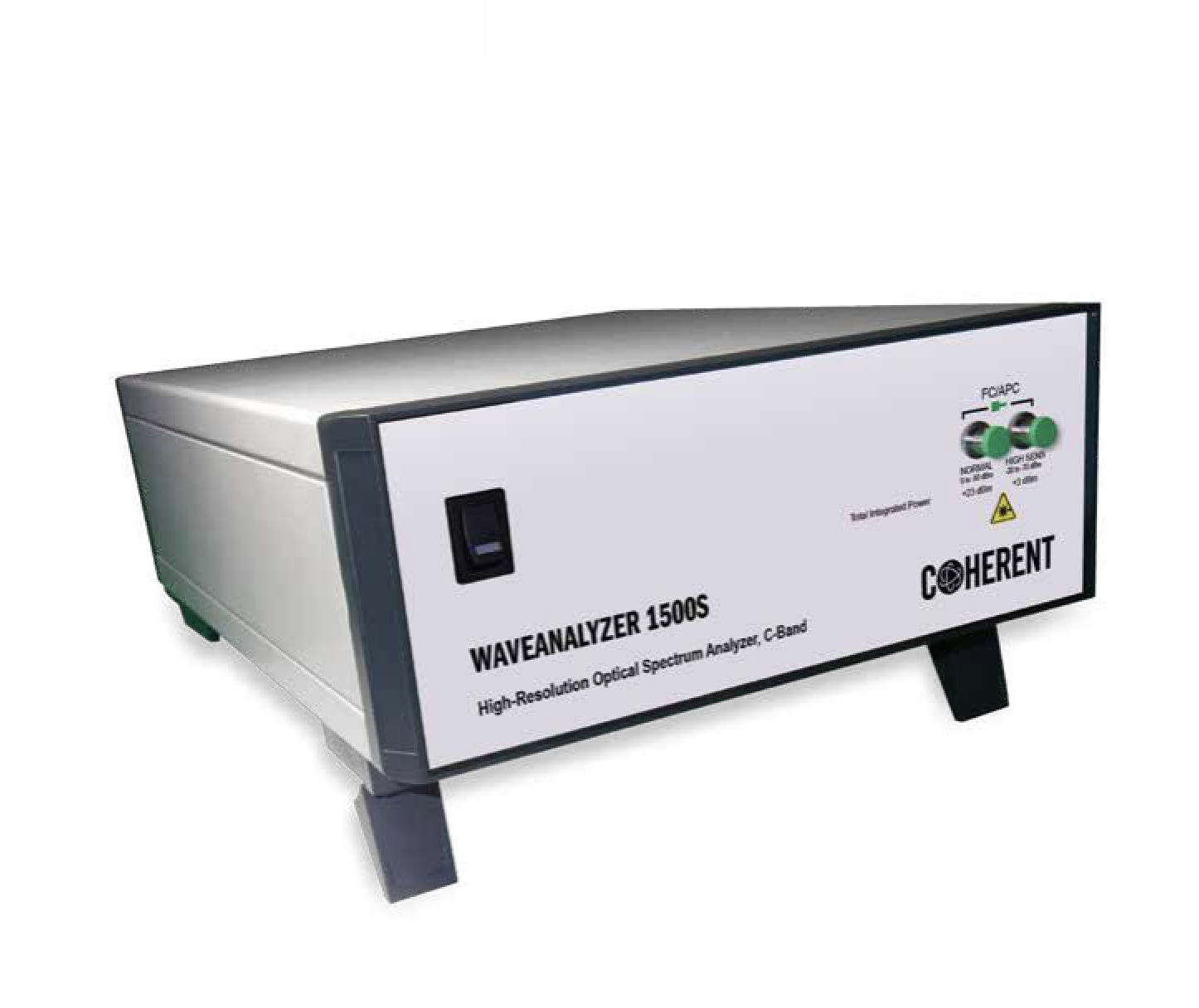

The Coherent OSA WaveAnalyzer™ Optical Spectrum Analyzer Series is a high-end optical testing equipment, offering comprehensive solutions ranging from portable field testing (WA 200A) to high-resolution laboratory testing (WA 1500S). Its heterodyne measurement technology, design without moving parts, and robust remote control capabilities make it an ideal choice for optical communication, optical component development, and network testing.Whether you're an engineer developing advanced communication systems or a technician focused on maximizing test throughput on the production floor, our OSA Optical Spectrum Analyzers deliver the ideal solution.
WaveAnalyzer is a high-resolution, high-sensitivity spectral analysis tool, ideally suited for spectral measurements and optical characterization of silicon photonic devices in the C/L bands.
It enables precise evaluation of transmission spectra, insertion loss, and wavelength-dependent behavior, making it an essential instrument for R&D and production testing in integrated photonics and optical
The WaveAnalyzer series features an intuitive user interface and comprehensive analysis of both C-band and L-band optical signals. Smart features like automatic measurement range adjustment are built-in. With industry-leading spectral resolution and ultra-fast scanning speed, the entire lineup is designed to boost efficiency without compromising measurement accuracy.

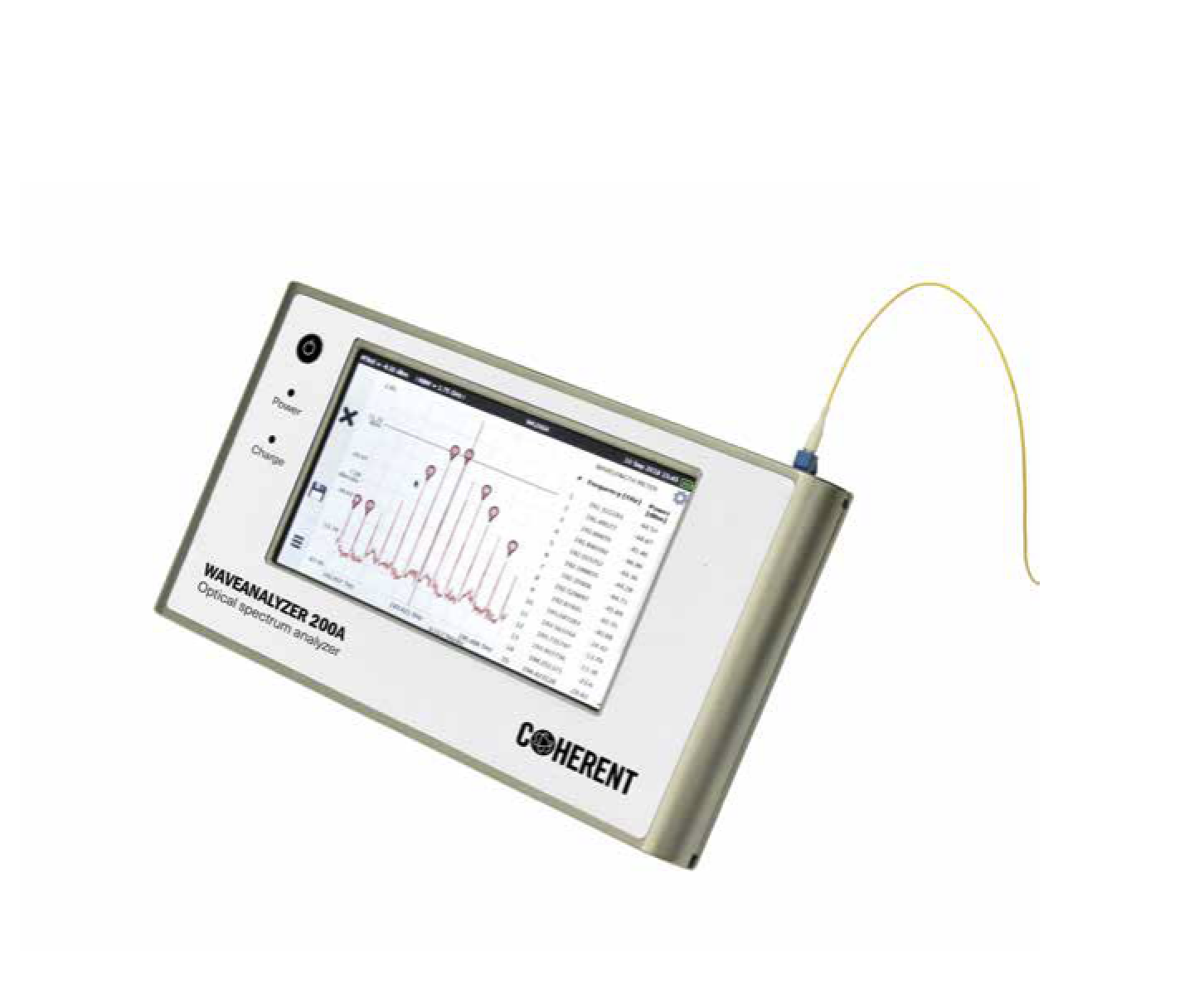

Coherent OSA WaveAnalyzer 200A – Portable Optical Spectrum Analyzer (C-Band)
WaveAnalyzer 200A – Portable Optical Spectrum Analyzer OSA
The WaveAnalyzer 200A OSA is a high-performance optical spectrum analyzer designed for portable applications in the C-Band. It features a compact, robust design, fast measurement capability, and intuitive user interface. Ideal for lab and field testing, the instrument offers high resolution, high dynamic range, and automated data acquisition.
Key Features
- High-resolution measurement (typ. 60 pm)
- Fast acquisition time (~0.25 s)
- Graphical user interface with touchscreen
- Lightweight & portable form factor
- USB and Ethernet connectivity
Applications
- Optical component testing
- Wavelength selective switch analysis

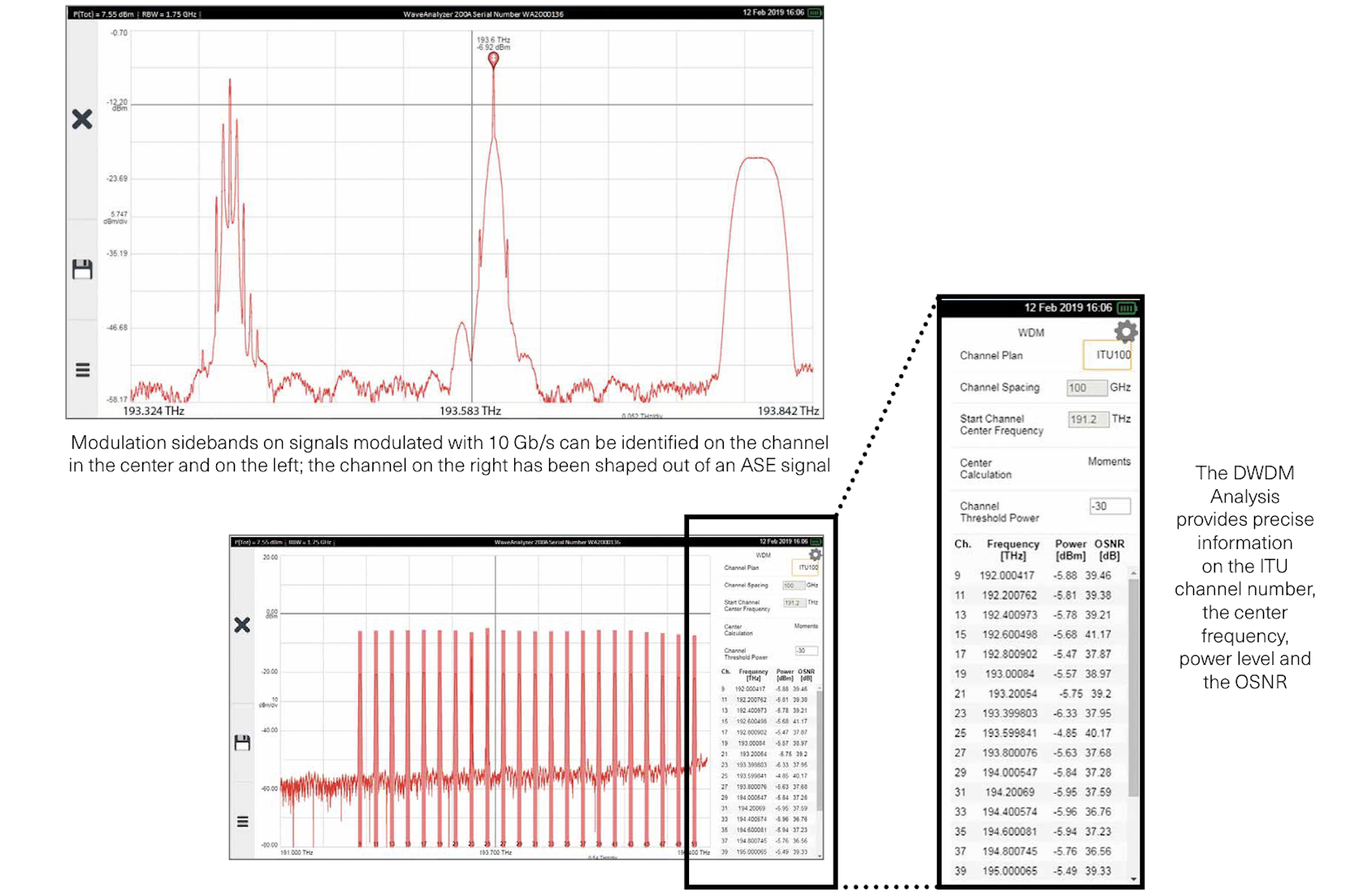

- DWDM transmission system verification
- ROADM and filter characterization
System Integration
The device supports SCPI command set for remote control via Ethernet or USB, allowing integration into automated test setups or production lines. Data can be exported in various formats for advanced analysis.
