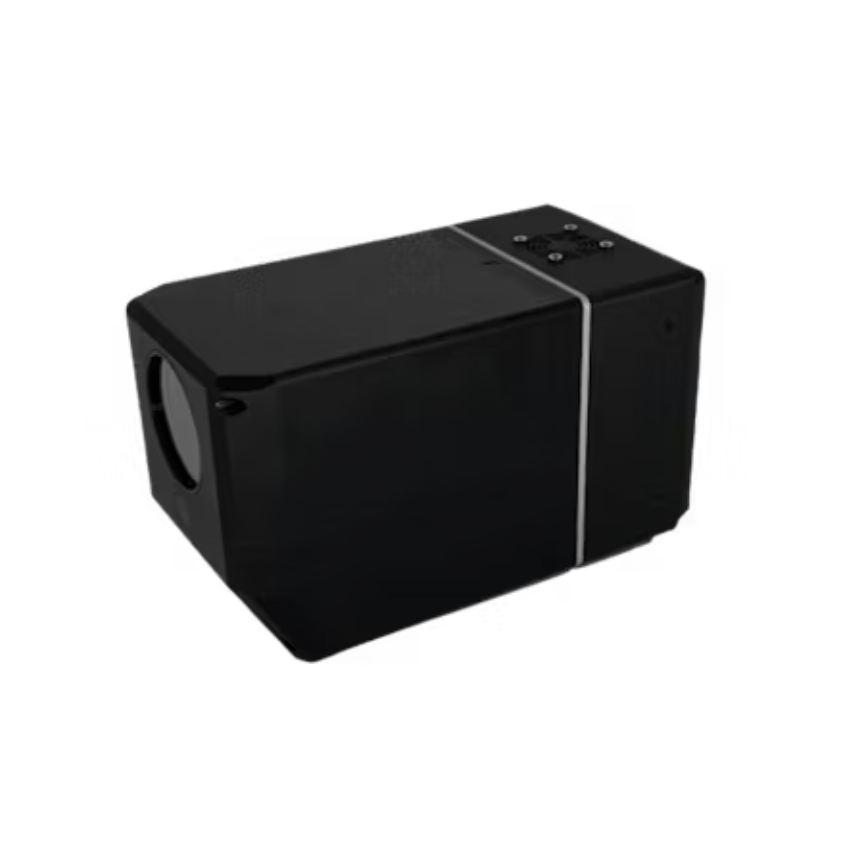

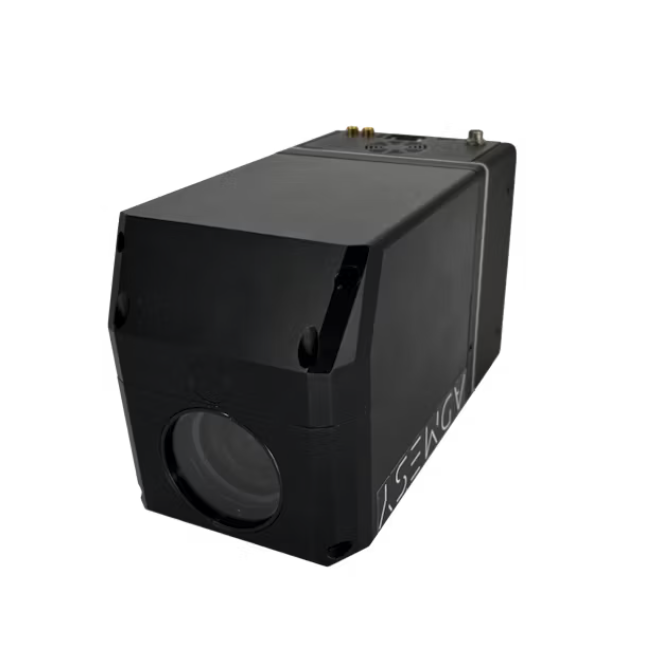

Helios XYZ Imaging Colorimeter
Ademesy Imaging ColorimeterHelios XYZ Imaging Colorimeter
25 MP XYZ
High-speed 2D imaging
colorimeter with highest color
accuracy and
highly uniform MTF
The Helios XYZ is the ultimate 2D imaging colorimeter combining high accuracy interference based XYZ filters with virtually flat response OD filters for a high dynamic range.
In order to mitigate the angle effects of interference filters the lens system is image space telecentric, this in combination with the in-house coated extreme uniform and accurate filters makes the Helios XYZ stand apart from any other solution on the market when accuracy is key.
Highlights
Specification
Software
Insights
- Image space telecentric in-house designed, unique lens system
- In-house coated XYZ filters with unseen uniformity
- Automated controlled focus by software command
- Working distances from 300 mm to 3 m
| Luminance range [cd/m²] | 0.02 - 20 000 |
| Luminance accuracy | ± 2% |
| Chromaticity accuracy | ± 0.002 |
| Dynamic range | 70 dB |
| Detector | 24.6 MP sony detector |
| Firmware | Admesy Imaging Suite for Helios and Titan series (Windows) |
| Application Note | Choosing a Spectrometer or a Colorimeter for Display Measurement |
