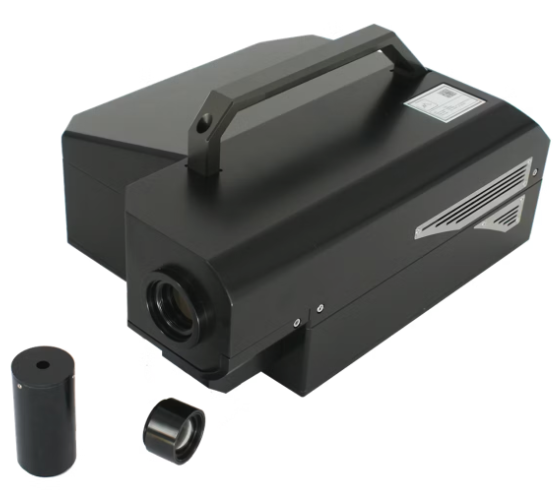

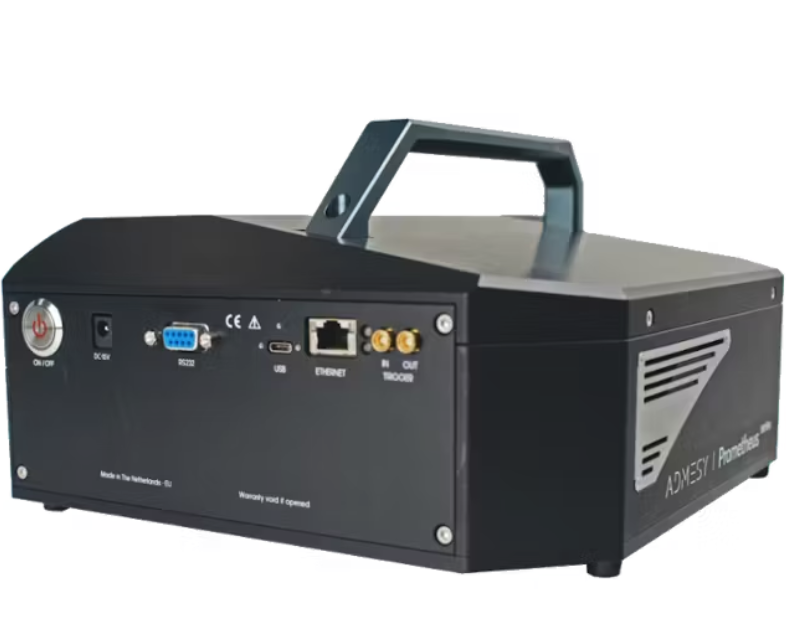

Prometheus Viewfinder X Spectrometer
Admesy Prometheus SeriesViewfinder X Spectrometer
3 Apertures 1° ‑ 0.2° ‑ 0.1° spot ⌀ 0.33 mm ‑ 5.3 m
Spectroradiometer with changeable apertures Working distance range from 0.22 mm to 305 m
Experience the next level of display characterization with our Prometheus Viewfinder X Spectroradiometer.
It's innovative changeable optics feature allows for easy adaption to different measurement requirements, enhancing versatility and precision.
Highlights
Specification
Software
Insights
- Fully automated optical Pritchard mirror design
- LED pointer for alignment purposes
- Camera enables to see the measurement spot on screen
- Close up lens and AR/VR accessories available
- Extremely low polarization sensitivity
| Spectrometer spectral range | 360 nm - 830 nm |
| Luminance Range 1° aperture | 0.0005 - 10 000 000 cd/m² |
| Luminance Range 0.1° aperture | 0.05 - 10 000 000 000 cd/m² |
| Luminance Range 0.2° aperture | 0.0125 - 250 000 000 cd/m² |
| Luminance accuracy | ± 2 % |
| Firmware | Prometheus Viewfinder Spectrometer |
| Manual | Prometheus Suite for Windows and macOS |
| Software | Prometheus Suite for Windows and macOS Libusbtmc driver for Windows (alternative driver option for Calman and ColourSpace) |
| Application Note | Choosing a Spectrometer or a Colorimeter for Display Measurement |
| Application Note | Choosing a Spectrometer or a Colorimeter for Display Measurement |
