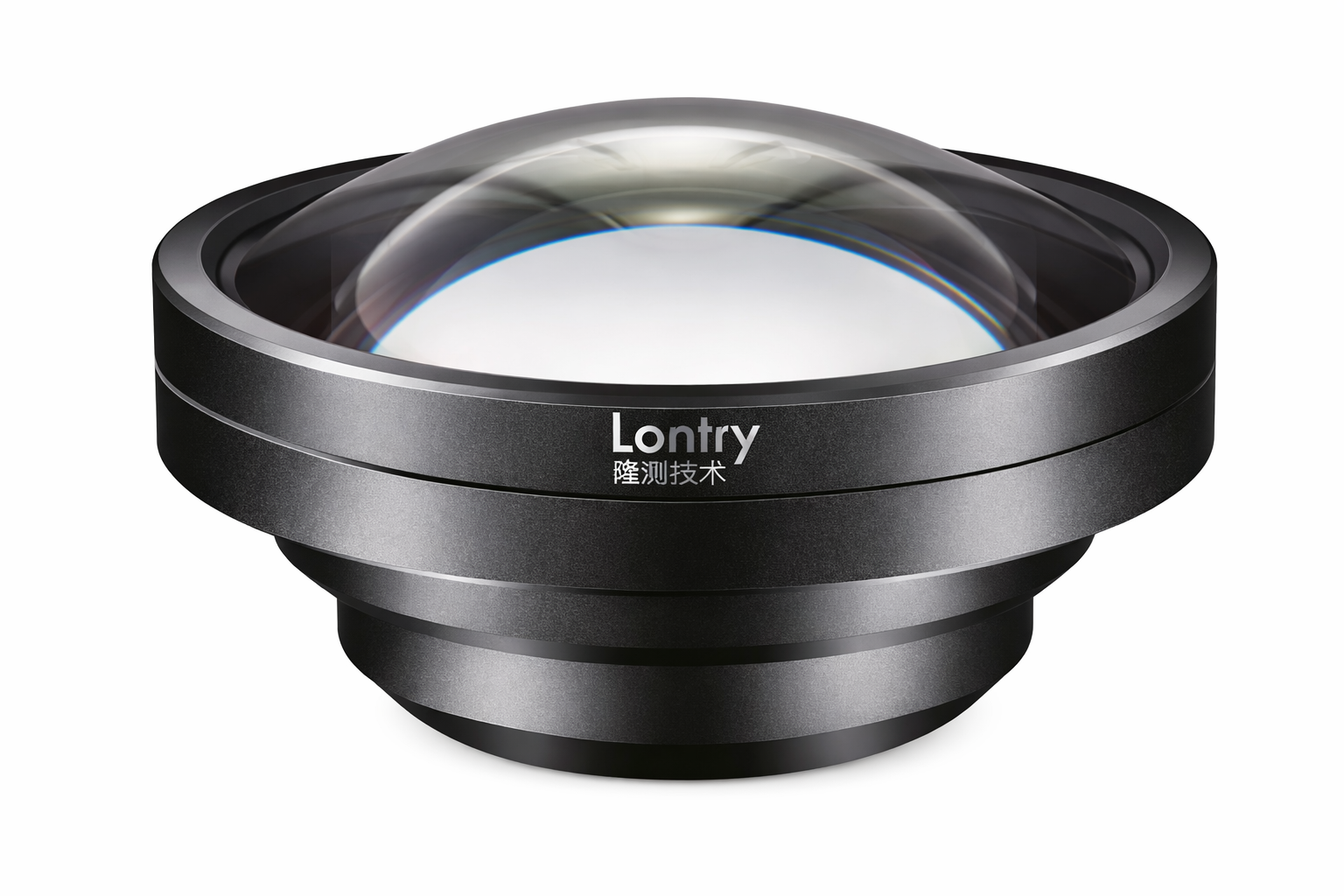

Relay Lens RLD1090B15
Relay Lens RLD1090B15
Key Features
- ① Primarily designed for simultaneous focusing of 2–4 identical mobile camera modules, significantly improving production efficiency
- ② High resolution performance
- ③ High image fidelity
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RLD1090B15 | 90° | 10 mm | 4 mm | 0.83 kg | 400 – INF mm | < 1% | Φ116 × 61.78 mm |

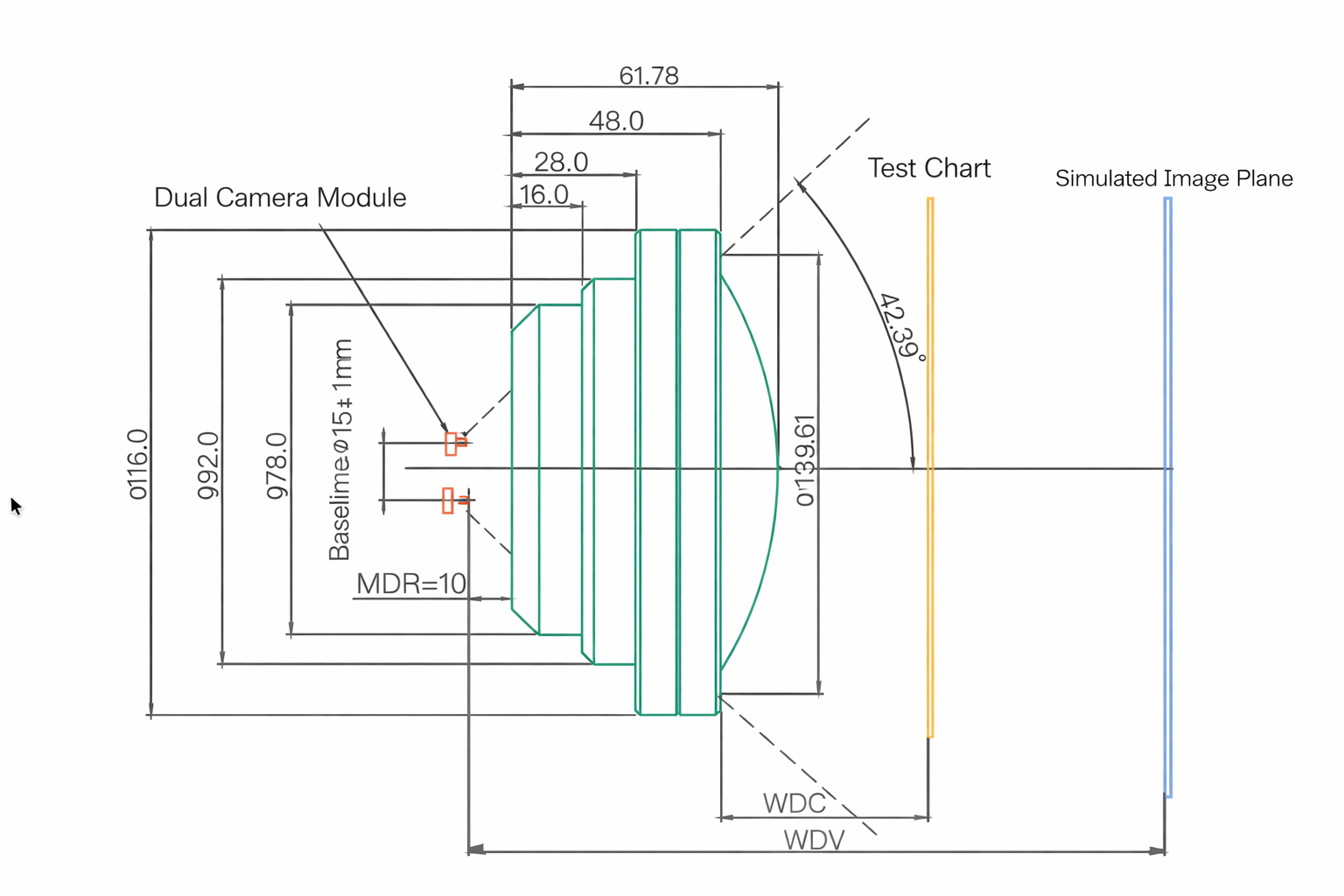

Mechanical Dimensions
* MDR: Mounting distance from camera module to the image-side of the relay lens
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object side to test chart
Test Chart Size at Maximum Angle
| WDV (mm) | WDC (mm) | Test Chart Size (L × W) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 400 | 166.98 | 355.78 | 200.12 | 326.56 | 244.92 |
| 1000 | 256.74 | 505.86 | 284.55 | 464.32 | 348.24 |
| 5000 | 344.04 | 651.94 | 366.72 | 598.40 | 448.80 |
| Infinity | 374.28 | 702.58 | 395.20 | 644.88 | 483.66 |
