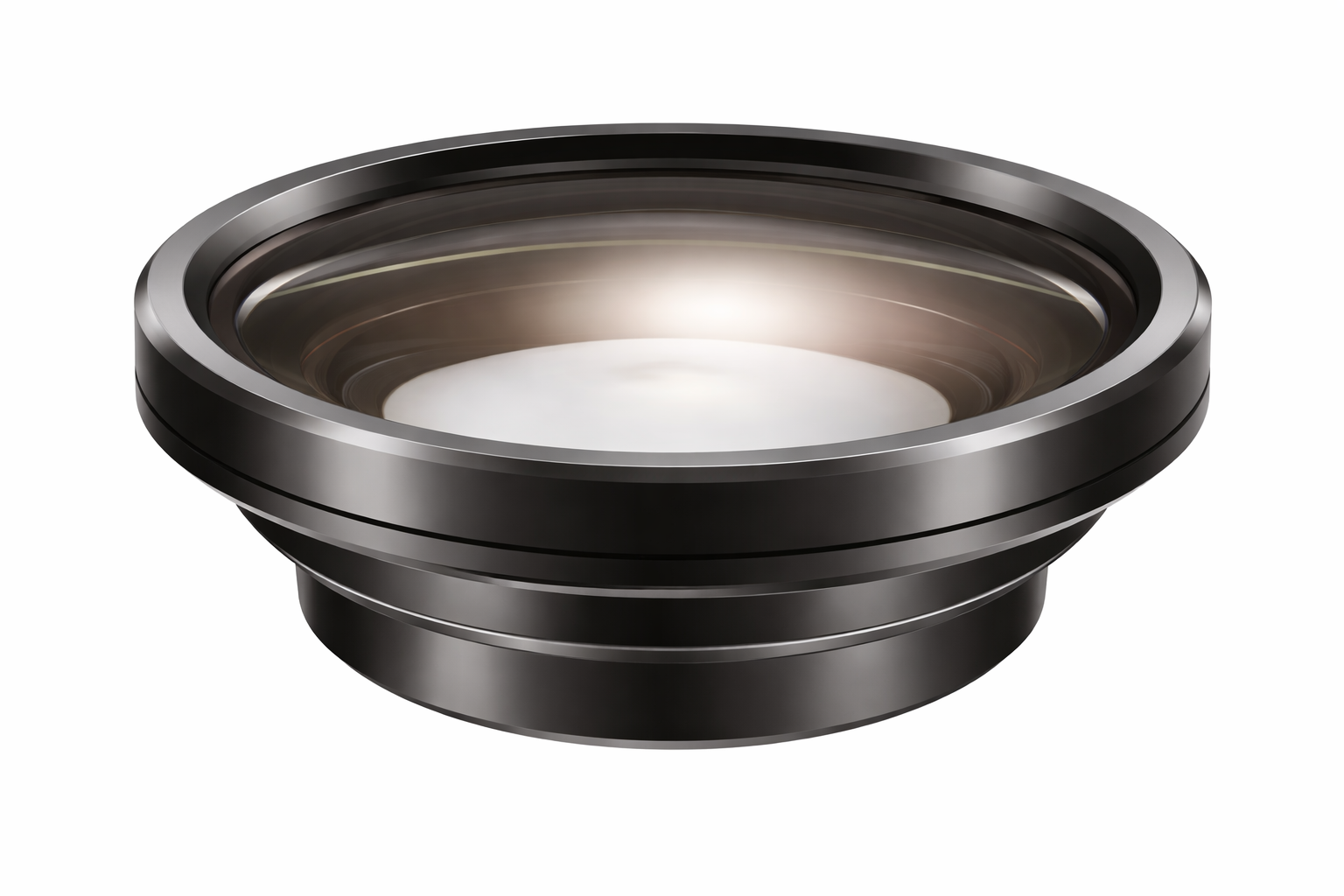

Relay Lens RL4090
Relay Lens RL4090
Key Features
- ① Large MDR
- ② Low Distortion
- ③ Suitable for AA Equipment and Module Focusing
- ④ High Compatibility
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL4090 | 90° | 40 mm | 5.5 mm | 1.6 kg | 300 – INF mm | < 1% | Φ155 × 56.6 mm |

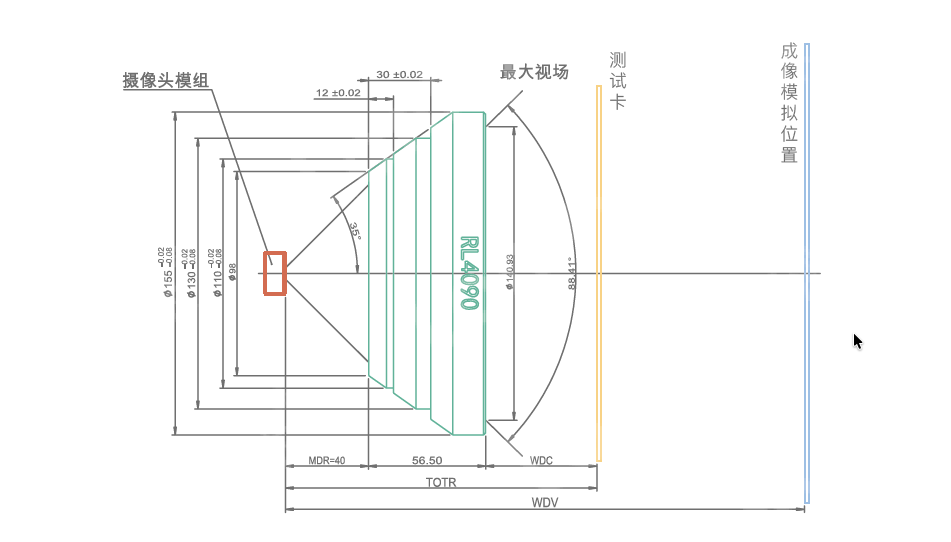

Mechanical Dimensions
.png)
* MDR: Mounting distance from camera module to relay lens image side
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object side to test chart
Test Chart Size at Maximum Angle
| WDV (mm) | WDC (mm) | Test Chart Size (L × W) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 400 | 150.74 | 378.09 | 212.68 | 347.04 | 260.28 |
| 1000 | 258.15 | 562.3 | 316.3 | 516.1 | 387.1 |
| 5000 | 371.3 | 756.4 | 425.5 | 694.3 | 520.7 |
| Infinity | 413.28 | 828.35 | 465.94 | 760.32 | 570.24 |
