<div class="container">
<header>
<div><span class="fov-tag">FOV < 90°</span>
<h1 class="model-title">中繼鏡 RL4045</h1>
</div>
</header>

<div class="product-main">
<div class="product-image"><img alt="RL4045 中繼鏡" src="/uploads/editor/images/ChatGPT%20Image%202026%E5%B9%B41%E6%9C%882%E6%97%A5%20%E4%B8%8B%E5%8D%8812_27_08.png" /></div>

<div class="product-features">
<div class="features-title">產品特點</div>

<ul class="features-list">
   <li data-num="①">超小型鏡體</li>
   <li data-num="②">大出瞳，支持 18mm 出瞳直徑</li>
   <li data-num="③">適用於長焦 / 潛望式鏡頭檢測</li>
   <li data-num="④">適用於陣列式檢測</li>
   <li data-num="⑤">適用於調焦，產品終檢</li>
</ul>
</div>
</div>

<table>
   <thead>
       <tr>
           <th>型號</th>
           <th>視場角</th>
           <th>MDR</th>
           <th>出瞳直徑</th>
           <th>重量</th>
           <th>模擬距離範圍</th>
           <th>畸變</th>
           <th>輪廓尺寸</th>
       </tr>
   </thead>
   <tbody>
       <tr>
           <td>RL4045</td>
           <td>45°</td>
           <td>40mm</td>
           <td>18mm</td>
           <td>0.1kg</td>
           <td>300-INF mm</td>
           <td><0.3%</td>
           <td>Φ58x34.17mm</td>
       </tr>
   </tbody>
</table>

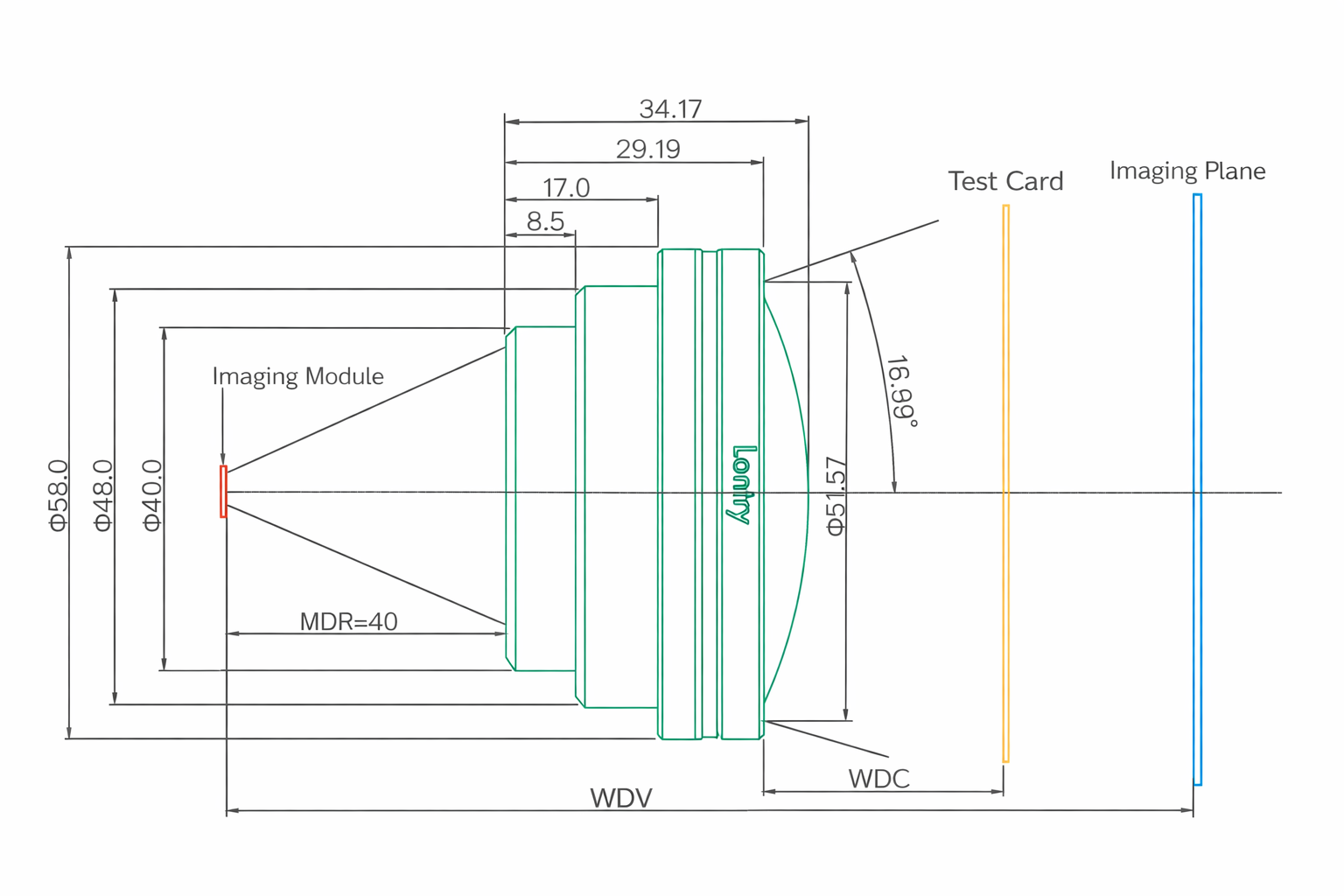

<div class="section-title">結構尺寸圖</div>

<div style="text-align:center;"><img alt="RL4045 結構圖" src="/uploads/editor/images/ChatGPT%20Image%202026%E5%B9%B41%E6%9C%882%E6%97%A5%20%E4%B8%8B%E5%8D%8812_45_46.png" style="max-width:100%;" /></div>

<div class="diagram-legend"><span>*MDR: 攝像頭模組到中繼鏡相端的安裝距離</span> <span>WDV: 攝像頭模組到模擬成像位置的距離</span> <span>WDC: 中繼鏡物端到測試卡的距離</span></div>

<div class="section-title">最大角度下測試卡的尺寸</div>

<table class="test-card-table">
   <thead>
       <tr>
           <th rowspan="2">WDV (mm)</th>
           <th rowspan="2">WDC (mm)</th>
           <th colspan="4">測試卡尺寸 (LXW)</th>
       </tr>
       <tr>
           <th colspan="2">16:9</th>
           <th colspan="2">4:3</th>
       </tr>
   </thead>
   <tbody class="sub-header">
       <tr>
           <td>攝像頭模組到模擬成像位置的距離</td>
           <td>中繼鏡物端到測試卡的距離</td>
           <td>長 (mm)</td>
           <td>寬 (mm)</td>
           <td>長 (mm)</td>
           <td>寬 (mm)</td>
       </tr>
   </tbody>
   <tbody>
       <tr class="row-alt">
           <td>500</td>
           <td>231.20</td>
           <td>183.32</td>
           <td>103.12</td>
           <td>168.26</td>
           <td>126.20</td>
       </tr>
       <tr>
           <td>1000</td>
           <td>315.16</td>
           <td>234.18</td>
           <td>131.73</td>
           <td>214.95</td>
           <td>161.21</td>
       </tr>
       <tr class="row-alt">
           <td>5000</td>
           <td>425.37</td>
           <td>300.95</td>
           <td>169.28</td>
           <td>276.24</td>
           <td>207.18</td>
       </tr>
       <tr>
           <td>無窮遠</td>
           <td>463.49</td>
           <td>324.05</td>
           <td>182.28</td>
           <td>297.43</td>
           <td>223.08</td>
       </tr>
   </tbody>
</table>
</div>
