Relay lens

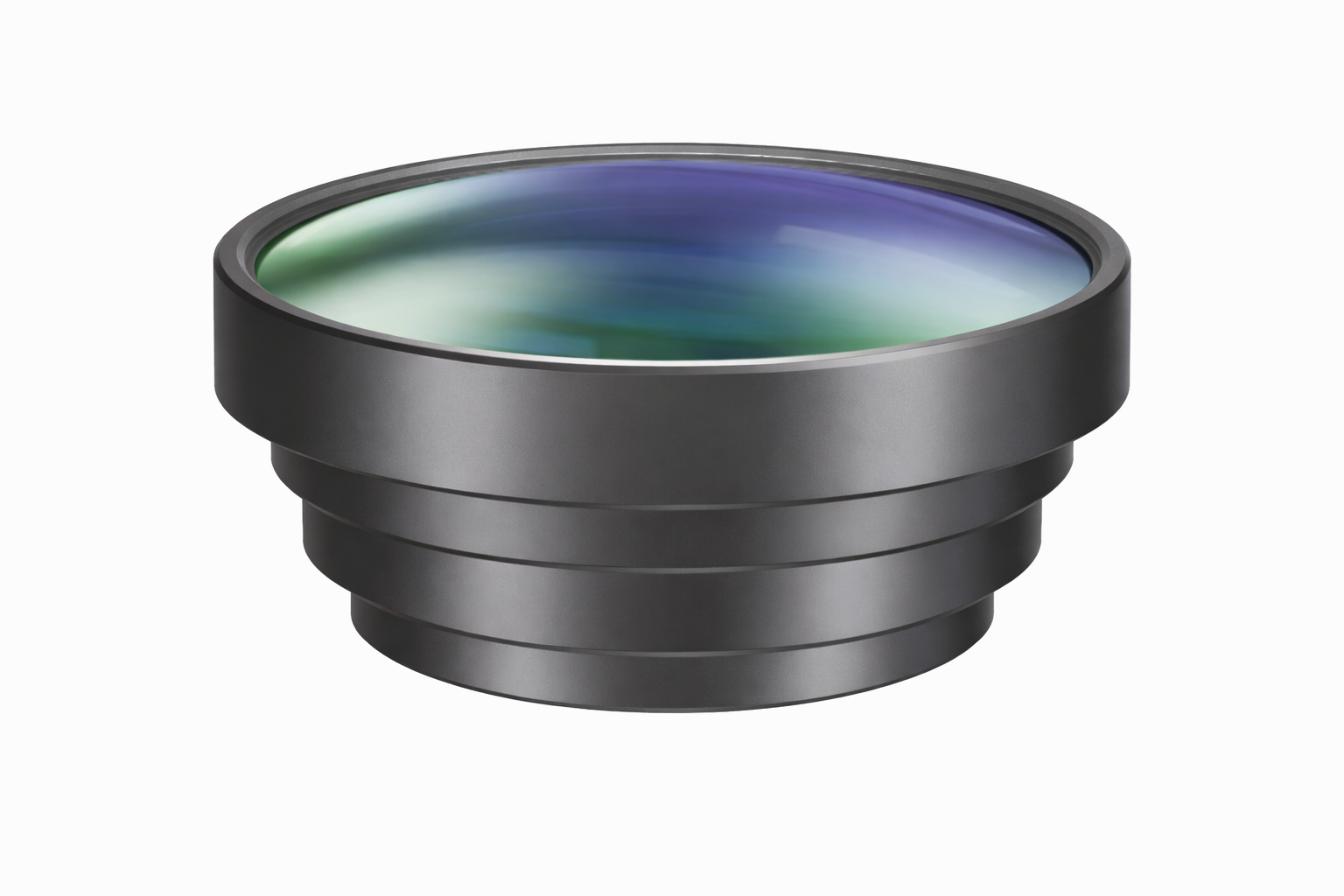

Relay Lens RL3075
Relay Lens RL3075
Key Features
- ① Large exit pupil supporting up to 10 mm aperture
- ② Suitable for telephoto and periscope lens inspection
- ③ High simulation distance accuracy
- ④ Low distortion
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL3075 | 75° | 30 mm | 10 mm | 0.55 kg | 1500 – INF mm | 0.25% | Φ120 × 55.21 mm |

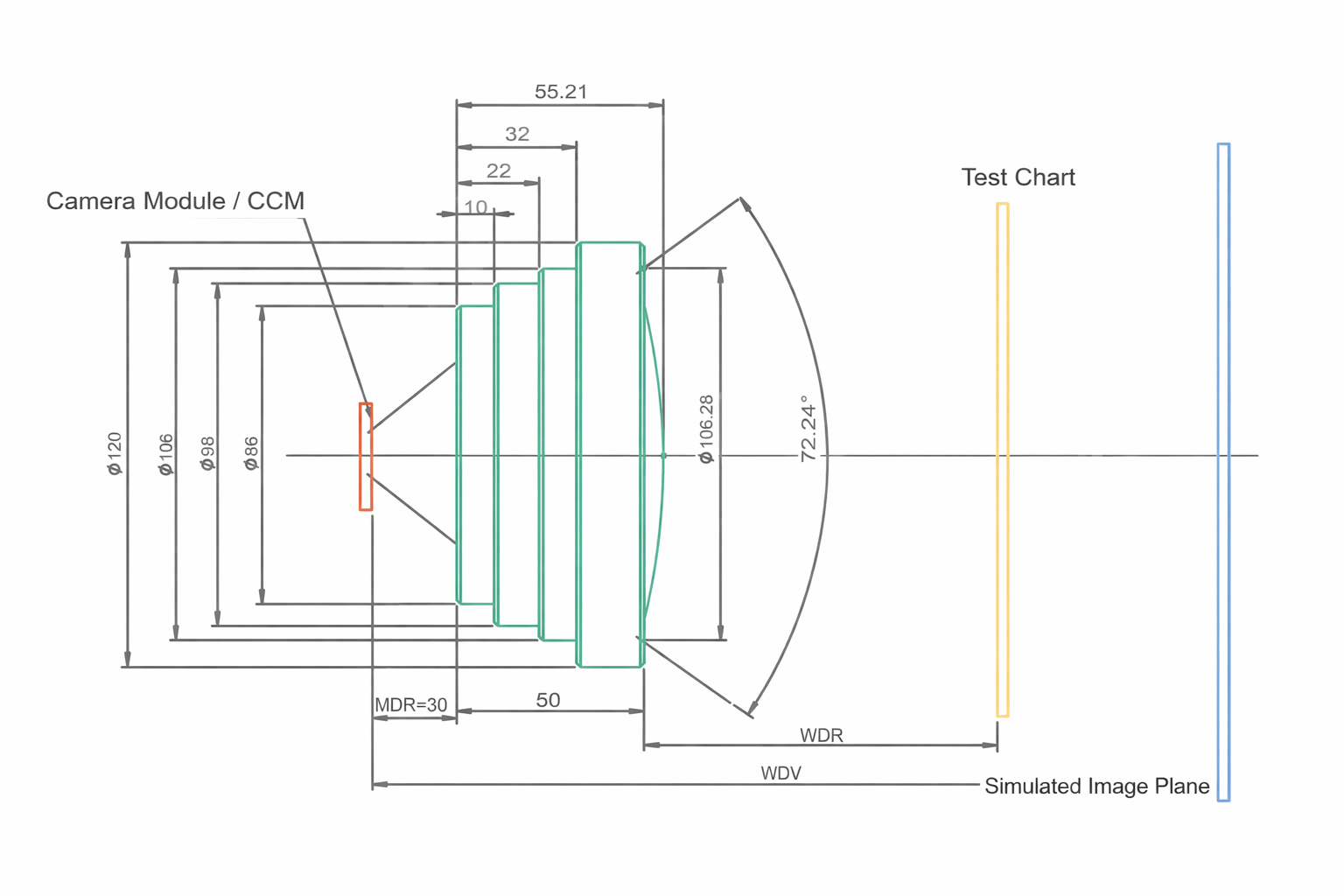

Mechanical Dimensions
* MDR: Mounting distance from camera module to the image-side of the relay lens
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object side to test chart
Test Chart Size at Maximum Angle
| WDV (mm) | WDC (mm) | Test Chart Size (L × W) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 1500 | 597.5 | 849 | 477.6 | 779.3 | 584.5 |
| 5000 | 863.6 | 1189.5 | 669.1 | 1091.8 | 818.8 |
| 10000 | 951 | 1301.2 | 731.9 | 1194.3 | 895.7 |
| Infinity | 1056.4 | 1436 | 807.8 | 1318.1 | 988.6 |
