Relay lens

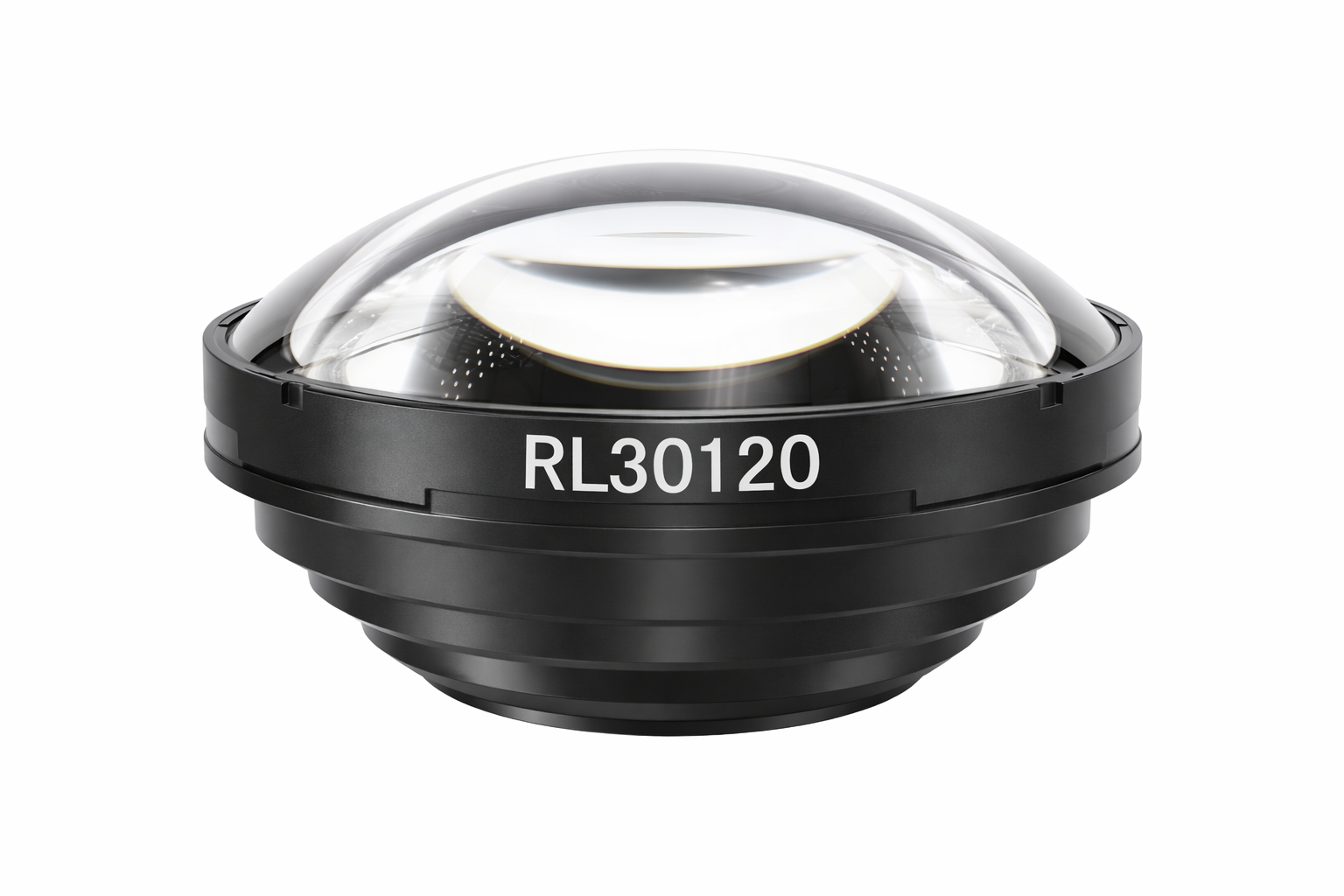

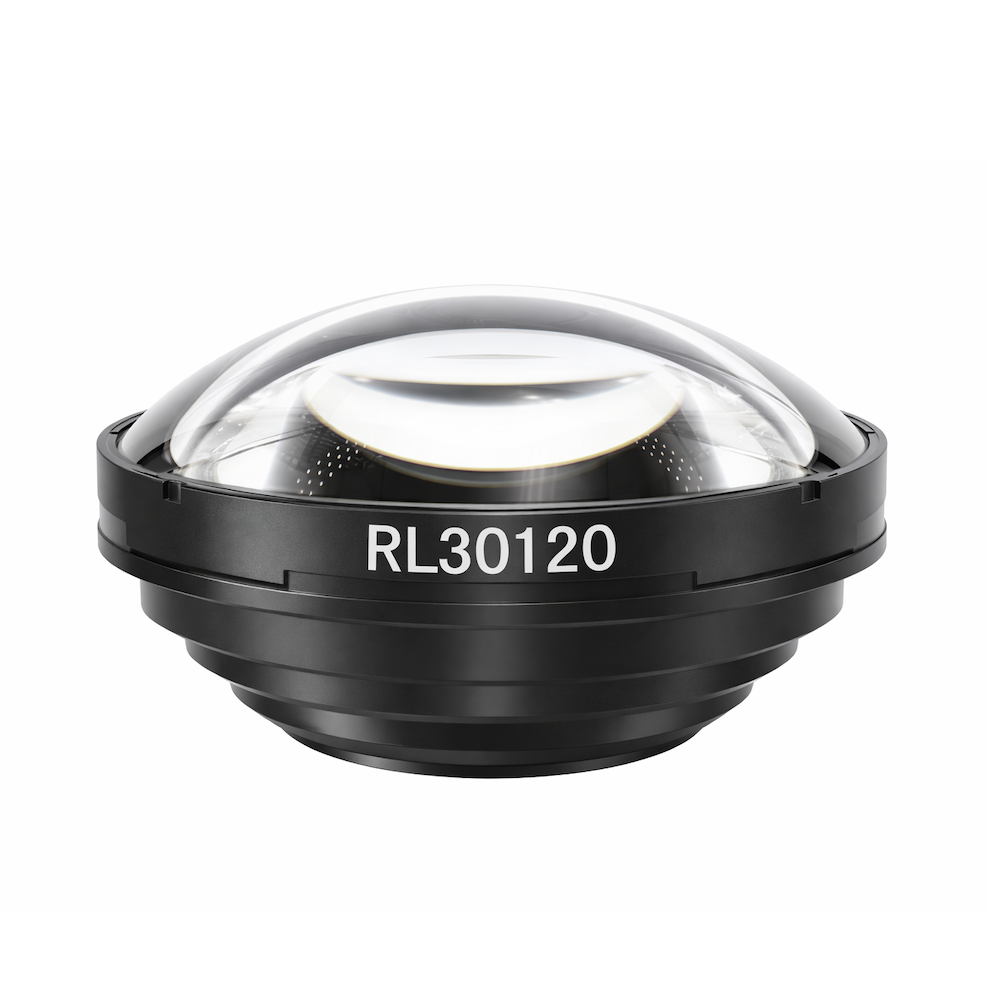

Relay Lens RL30120
Relay Lens RL30120
Product Features
- ① High image fidelity
- ② Suitable for AA and focus testing of wide-angle products up to 120°
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL30120 | 120° | 30mm | 4.5mm | 4.8kg | 5000-INFmm | <32% | Φ190x90.16mm |

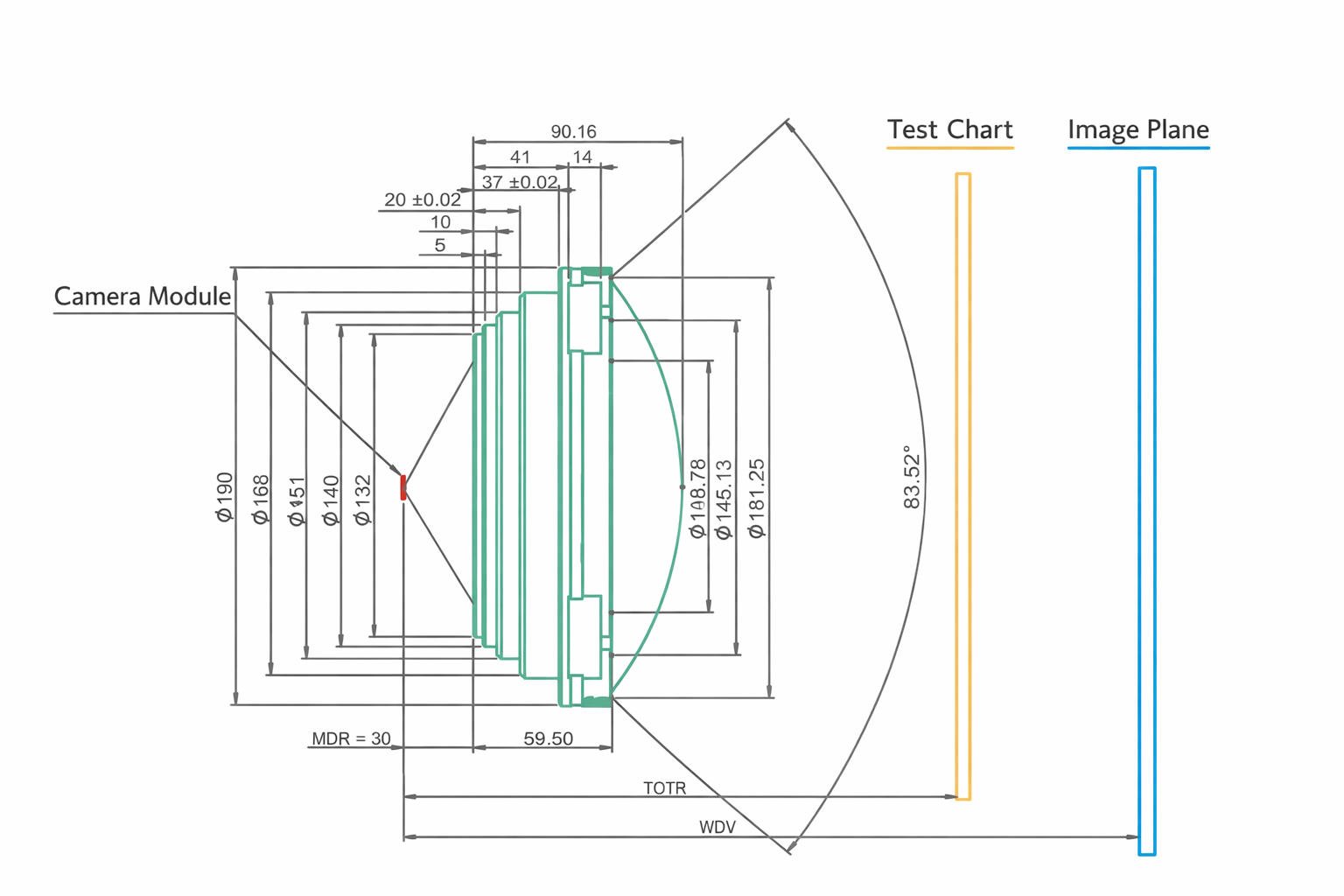

Mechanical Dimensions
*MDR: Installation distance from camera module to relay lens image-side
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
Test Chart Size at Maximum Field of View
| WDV (mm) | WDC (mm) | Test Chart Size (LxW) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera Module to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 5000 | 272.1 | 581.5 | 327.1 | 533.8 | 400.3 |
| 10000 | 279.2 | 592.6 | 333.3 | 543.9 | 407.9 |
| 20000 | 282.8 | 598.3 | 336.5 | 549.1 | 411.9 |
| Infinity | 286.5 | 604.1 | 339.8 | 554.5 | 415.9 |
