- Relay Lens RL25130-750
Relay lens

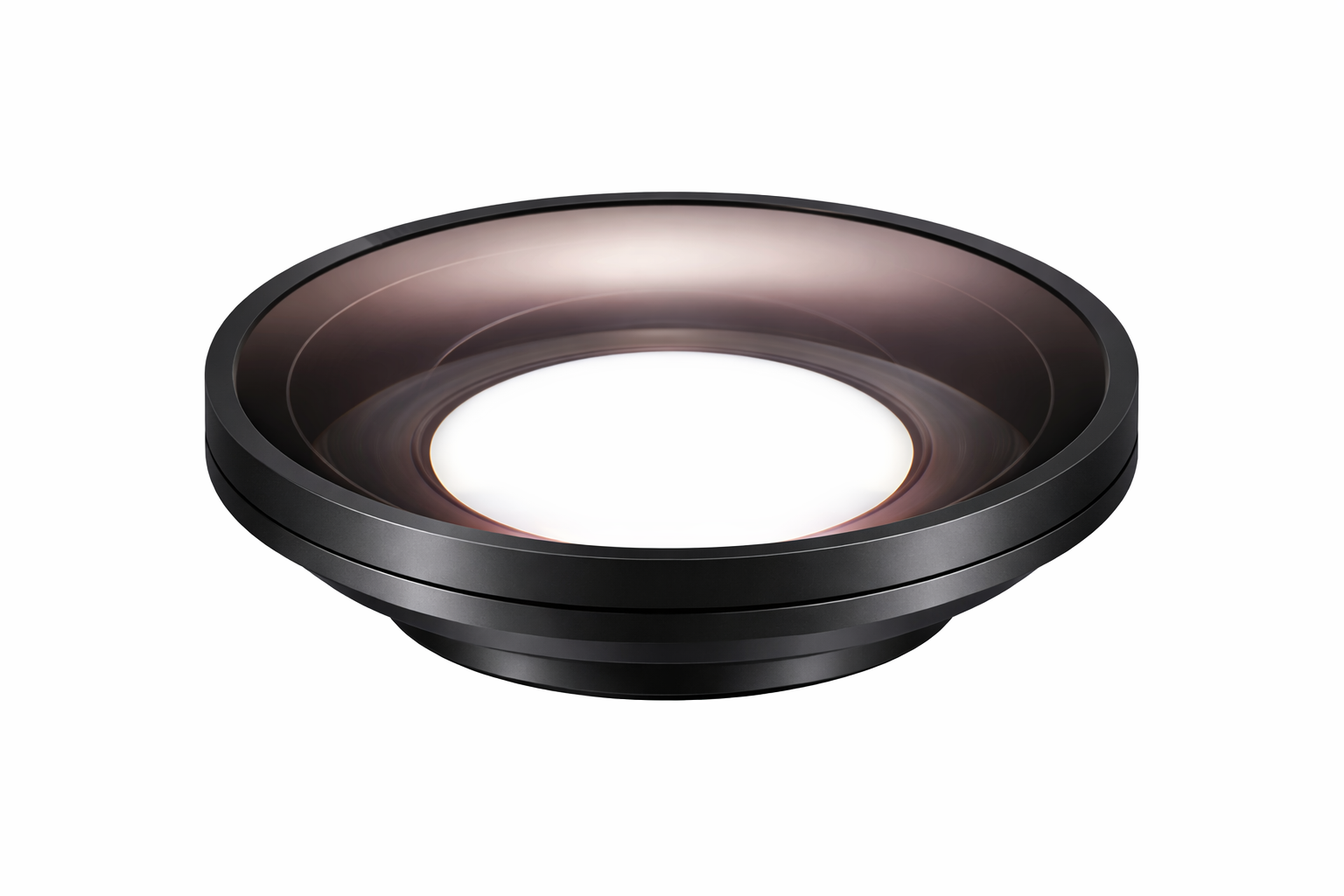

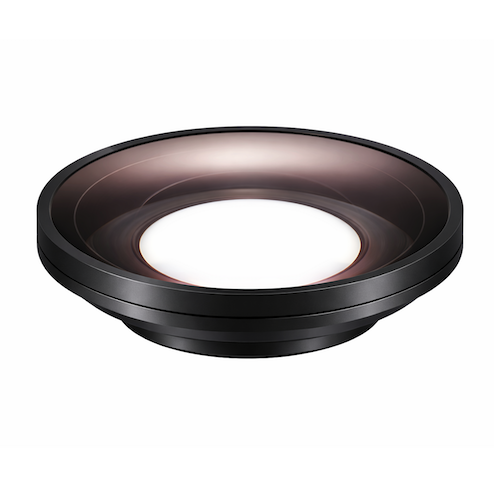

Relay Lens RL25130-750
Relay Lens RL25130-750
Key Features
- ① High fidelity / high correlation
- ② Low distortion
- ③ High cost-performance ratio
- ④ Supports focus and end-of-line (EOL) testing up to 130°
- ⑤ Applicable to wide-angle products such as automotive and security cameras
Specifications
| Model | FOV | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL25130-750 | 130° | 18 mm | 3 mm | 1.08 kg | 300–INF mm | <20% | Φ150 × 39.8 mm |

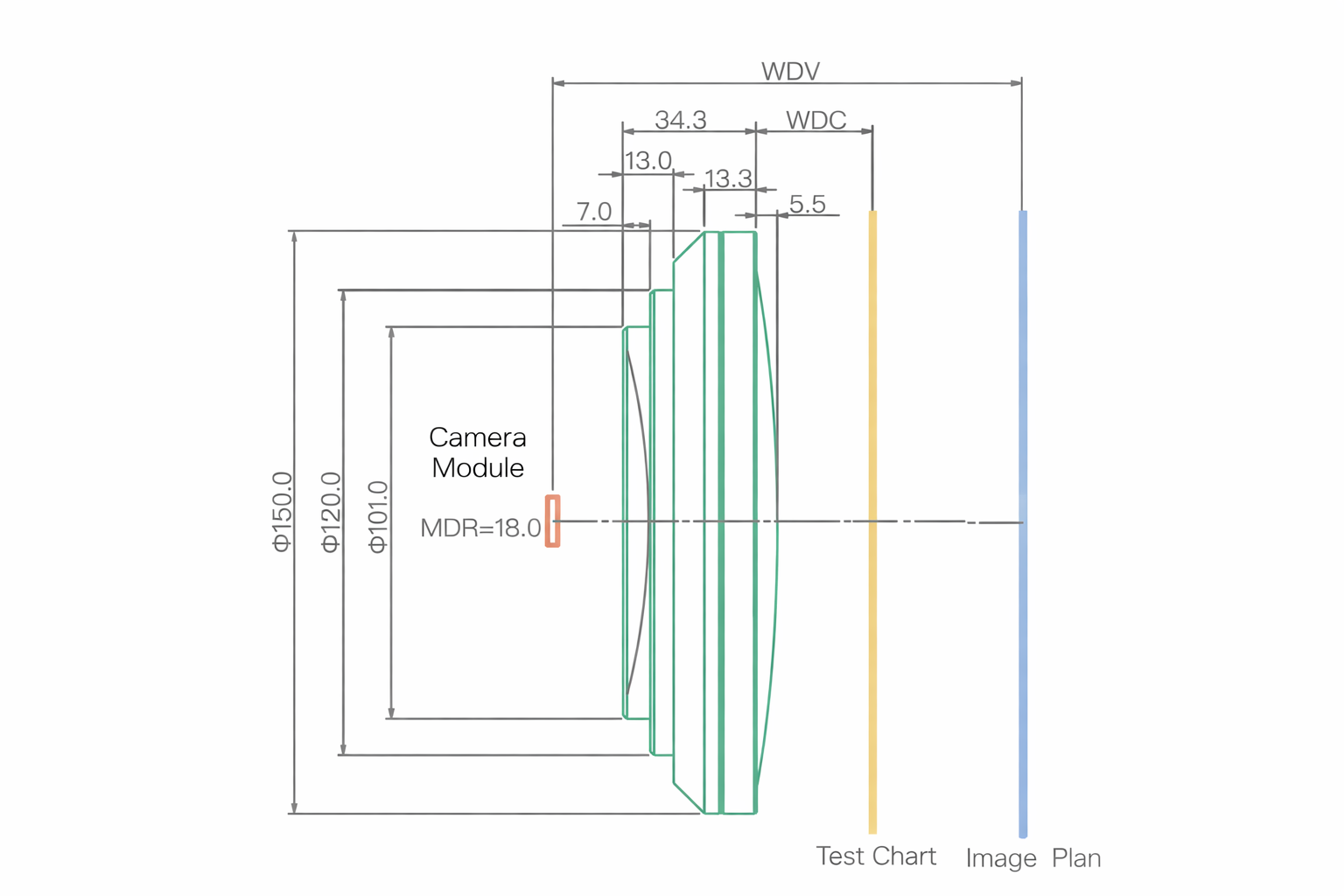

Mechanical Dimension Drawing
* MDR: Installation distance from camera module to relay lens image-side interface
WDV: Distance from camera module to simulated image position
WDC: Distance from relay lens object side to test chart
WDV: Distance from camera module to simulated image position
WDC: Distance from relay lens object side to test chart
Test Chart Size at Maximum Field Angle
| WDV (mm) | WDC (mm) | Test Chart Size (L × W) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera to Simulated Image Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 400 | 171.5 | 595.0 | 334.7 | 546.1 | 409.6 |
| 1000 | 248.0 | 806.5 | 453.7 | 740.3 | 555.2 |
| 5000 | 316.0 | 994.7 | 559.5 | 913.0 | 684.7 |
| Infinity | 338.3 | 1056.2 | 594.1 | 969.5 | 727.1 |
