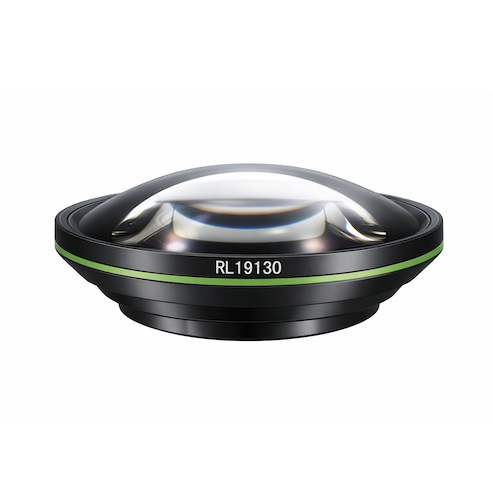

- Relay Lens RL19130
Relay lens
Relay Lens RL19130

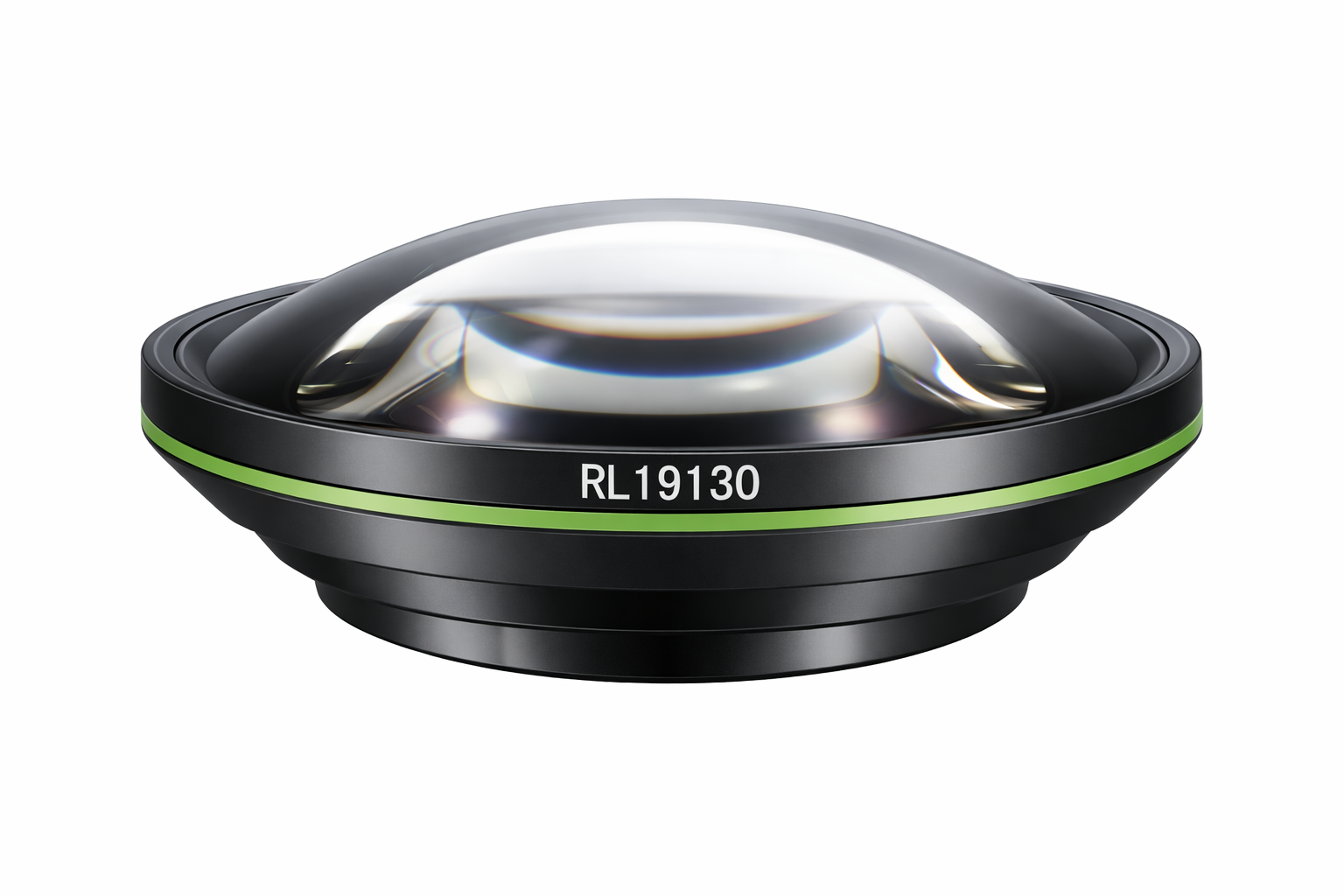

Relay Lens RL19130
Key Features
- ① High fidelity / high correlation
- ② Strong versatility
- ③ Supports focus and end-of-line (EOL) testing up to 130°
- ④ Applicable to wide-angle products such as automotive and security cameras
Specifications
| Model | FOV | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL19130 | 130° | 19mm | 4mm | 1.48kg | 400-INFmm | <30% | Φ145x48.94mm |

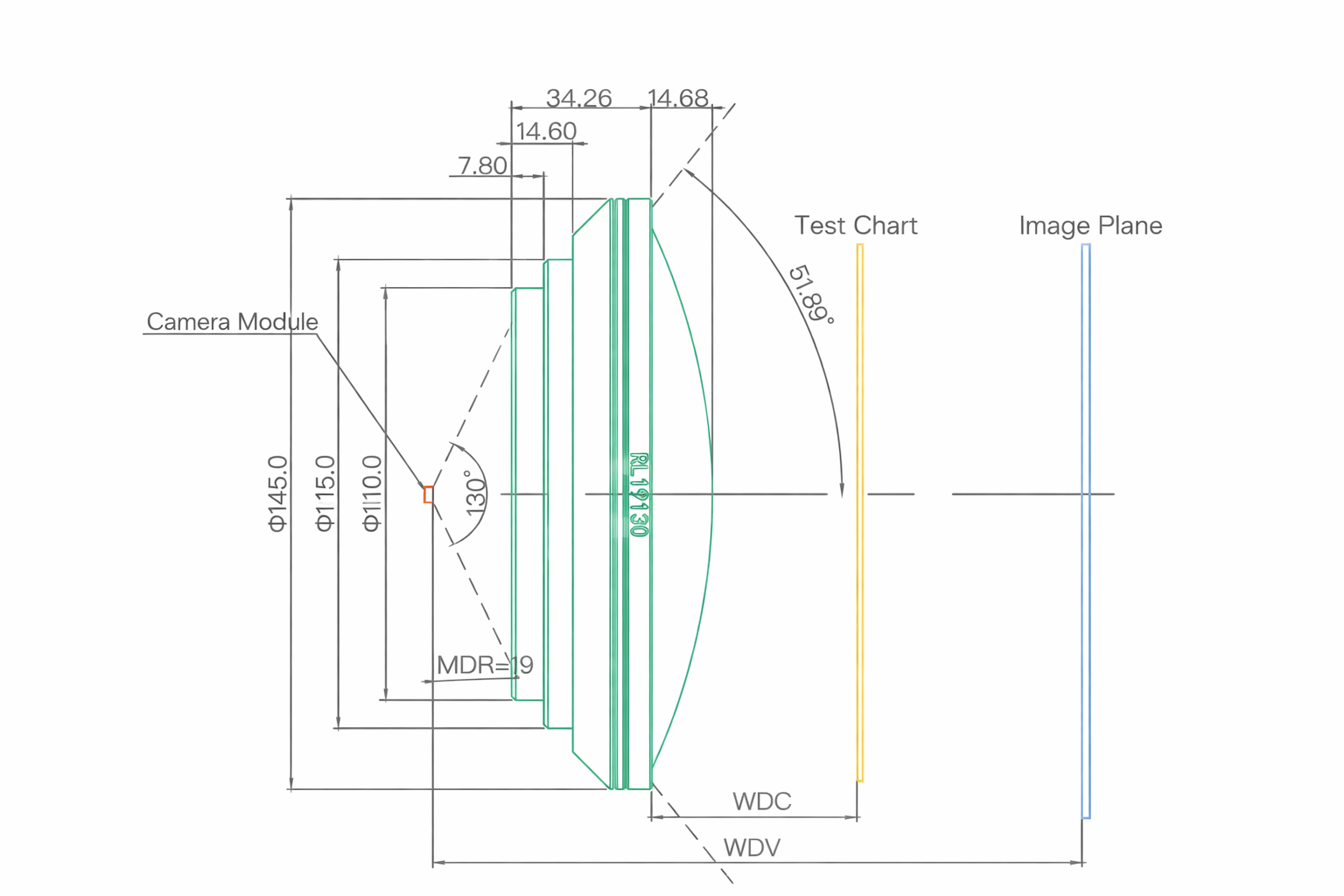

Mechanical Dimension Drawing
* MDR: Installation distance from camera module to relay lens image-side interface
WDV: Distance from camera module to simulated image position
WDC: Distance from relay lens object side to test chart
WDV: Distance from camera module to simulated image position
WDC: Distance from relay lens object side to test chart
Test Chart Size at Maximum Field Angle
| WDV (mm) | WDC (mm) | Test Chart Size (L×W) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera to Simulated Image Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 400 | 206.21 | 579.06 | 325.72 | 531.50 | 398.63 |
| 1000 | 315.10 | 822.27 | 462.53 | 754.75 | 566.06 |
| 5000 | 424.10 | 1065.73 | 599.47 | 978.21 | 733.66 |
| Infinity | 455.75 | 1136.41 | 639.23 | 1043.09 | 782.32 |
