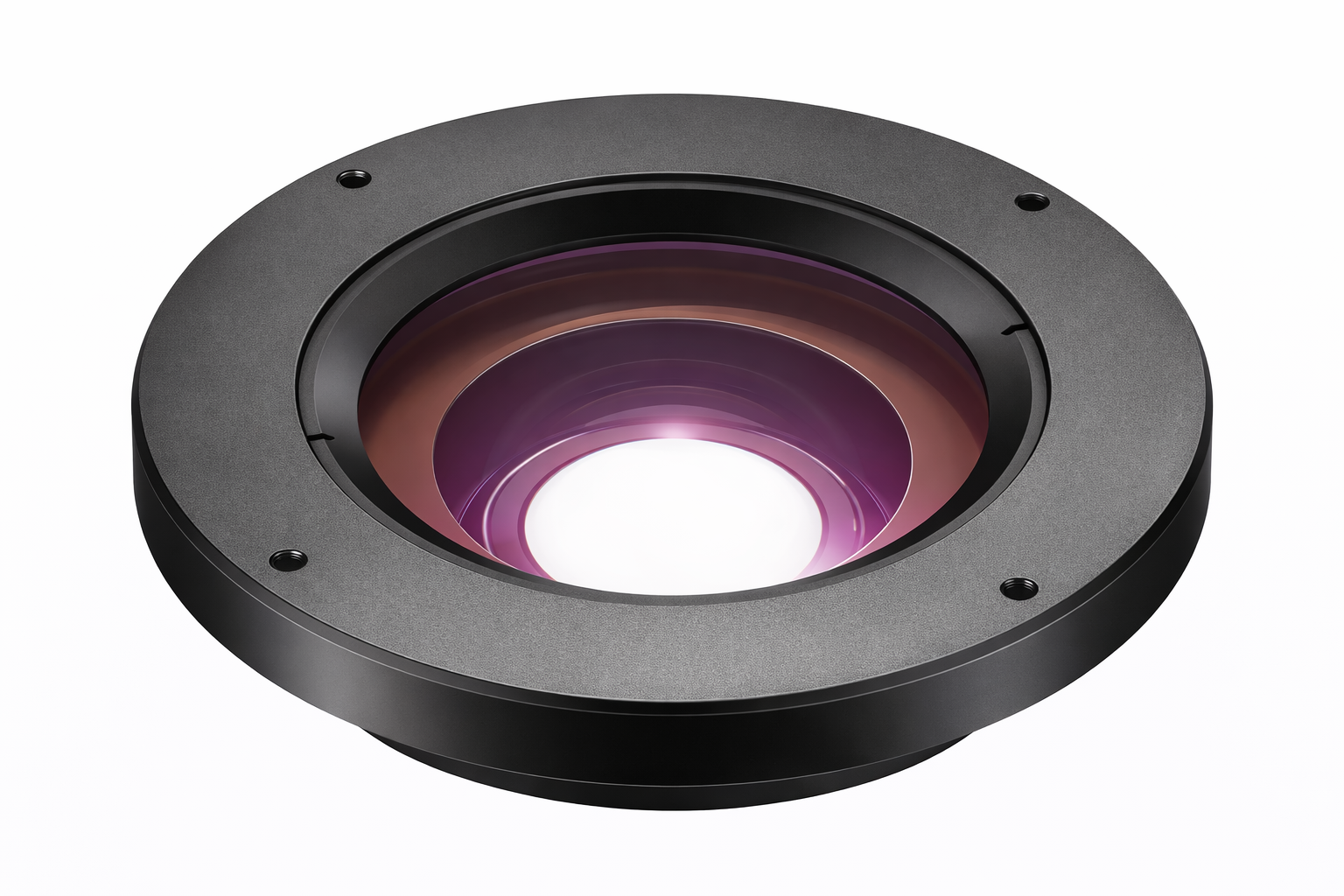

Relay Lens RL1590-267
Relay Lens RL1590-267
Product Features
- ① Ultra-small test chart size, short test distance
- ② Designed for imaging inspection with compact equipment and light boxes
- ③ Imaging inspection
- ④ Periscope zoom
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL1590-267 | 90° | 12.3mm | 3mm | 0.745kg | 300-INF mm | <0.5% | Φ130x49.5mm |

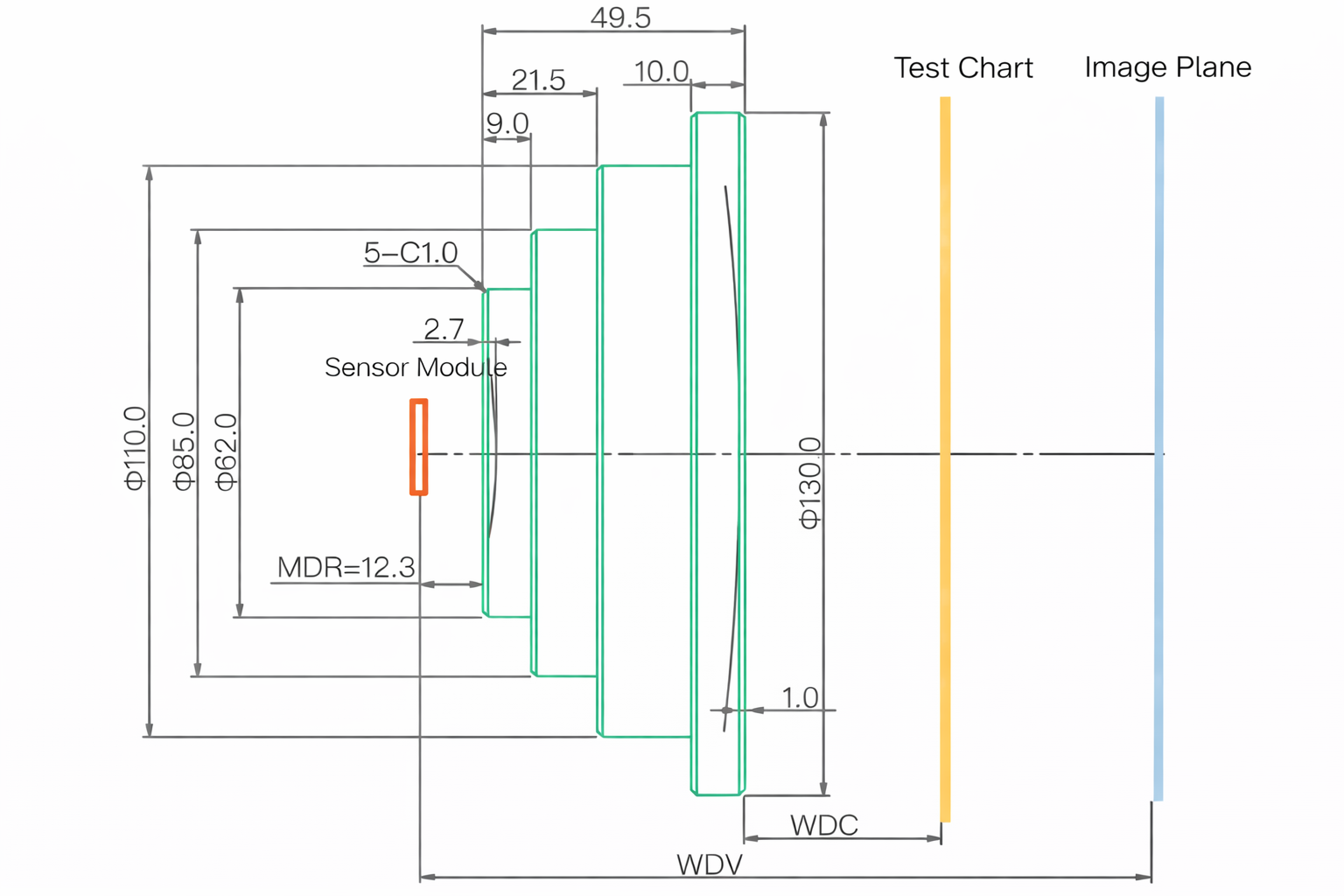

Mechanical Dimensions
*MDR: Installation distance from camera module to relay lens image-side
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
Test Chart Size at Maximum Field of View
| WDV (mm) | WDC (mm) | Test Chart Size (LxW) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera Module to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 400 | 70.19 | 217.89 | 122.57 | 200.00 | 150.00 |
| 1000 | 98.65 | 270.67 | 152.25 | 248.44 | 186.33 |
| 5000 | 120.28 | 310.88 | 174.87 | 285.35 | 214.01 |
| Infinity | 126.72 | 322.71 | 181.52 | 296.21 | 222.16 |
