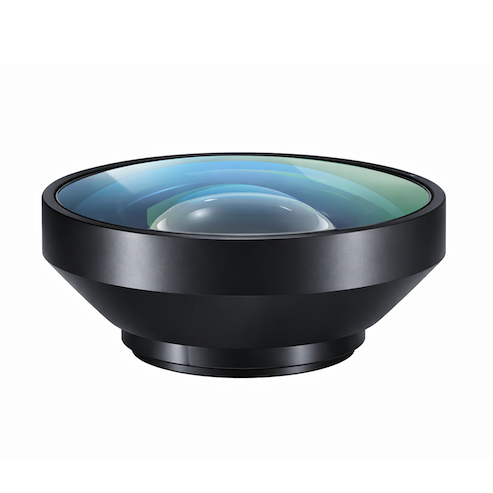

Relay Lens RL15130
Relay Lens RL15130
Key Features
- ① Designed for AA (Active Alignment) equipment
- ② 130° ultra-wide field of view
- ③ Ultra-low field curvature: 2 μm
- ④ Simulation distance range: 300–2000 mm
Specifications
| Model | FOV | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL15130 | 130° | 15 mm | 5 mm | 5.0 kg | 420–900 mm | 0.38% | Φ201 × 92.34 mm |

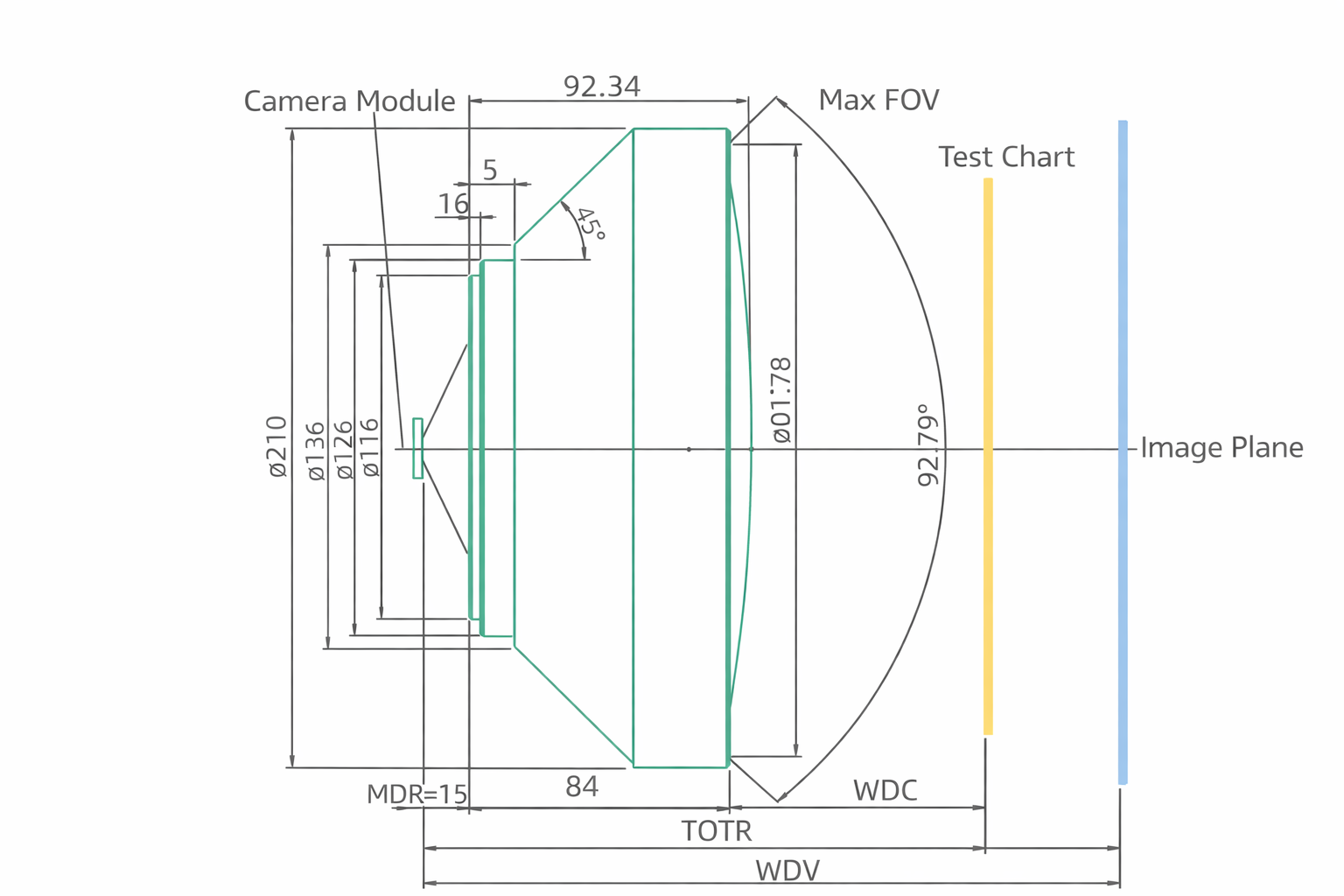

Mechanical Dimension Drawing
.png)
* MDR: Installation distance from camera module to relay lens image-side interface
WDV: Distance from camera module to simulated image position
WDC: Distance from relay lens object side to test chart
WDV: Distance from camera module to simulated image position
WDC: Distance from relay lens object side to test chart
Test Chart Size at Maximum Field Angle
| WDV (mm) | WDC (mm) | Test Chart Size (L × W) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera to Simulated Image Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 2000 | 202.2 | 546.5 | 307.4 | 501.6 | 376.2 |
| 5000 | 219.4 | 578.1 | 325.2 | 578.1 | 325.2 |
| 10000 | 225.5 | 589.6 | 331.6 | 541.1 | 405.9 |
| Infinity | 232.0 | 601.5 | 338.3 | 552.1 | 414.1 |
