Relay lens

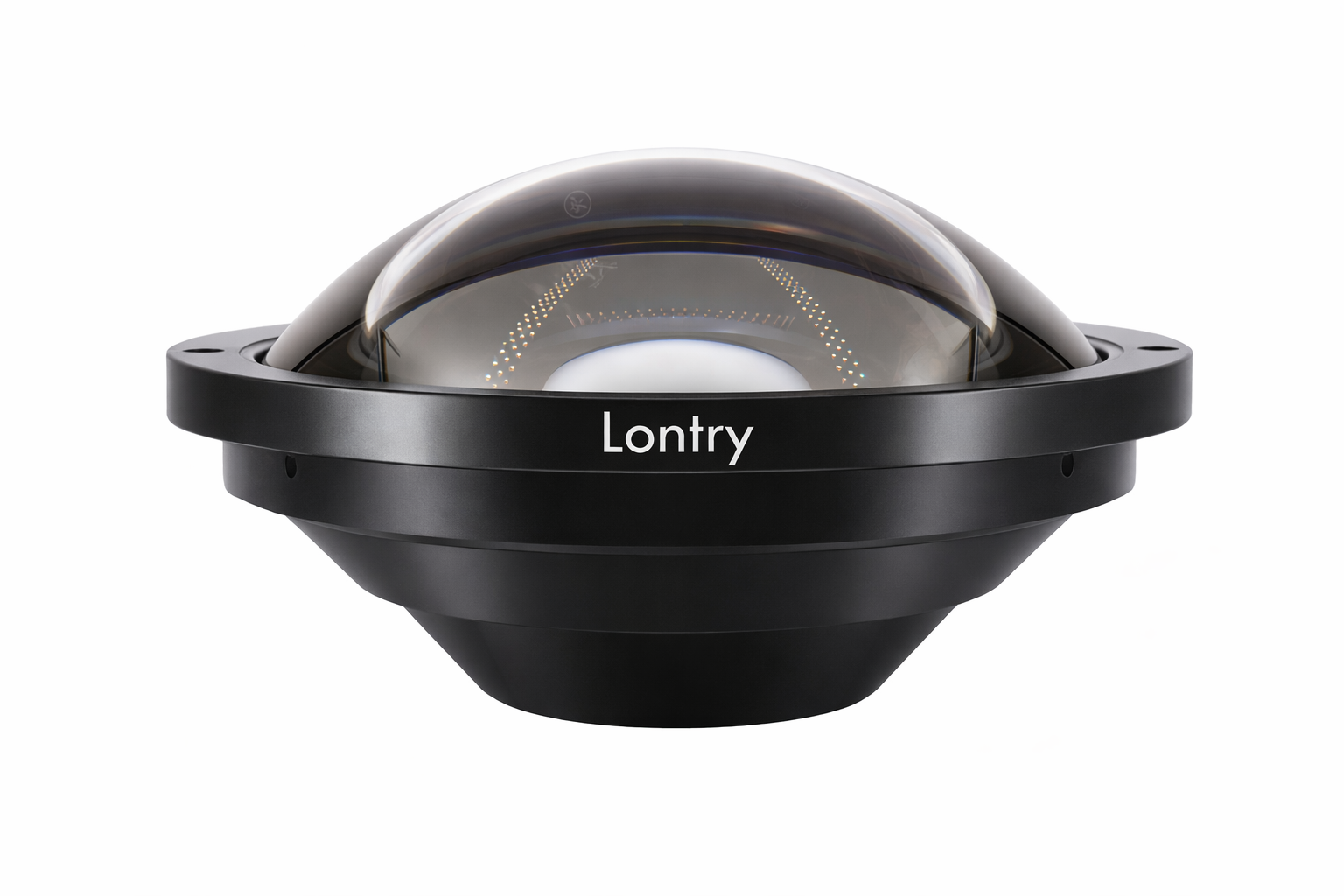

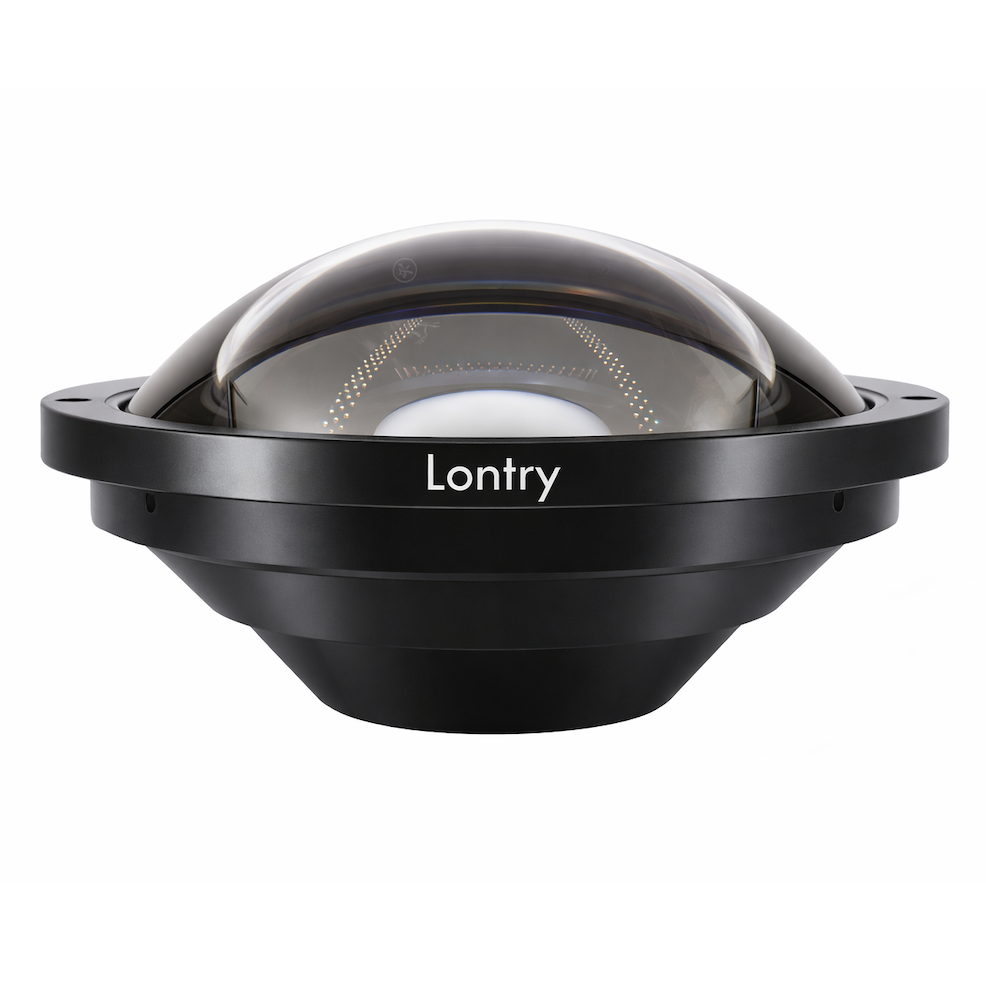

Relay Lens RL11125
Relay Lens RL11125
Product Features
- ① 125° ultra-wide field of view
- ② Distortion less than 0.2%
- ③ Compact test chart with short test distance
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL11125 | 125° | 11 mm | 4 mm | 3.32 kg | 700 – INF mm | < 0.2% | Φ199 × 102.15 mm |
Mechanical Dimensions
* MDR: Installation distance from camera module to relay lens image-side
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
Test Chart Size at Maximum Field of View
| WDV (mm) | WDC (mm) | Test Chart Size (L × W) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera Module to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 450 | 73.53 | 430.38 | 242.09 | 395.04 | 296.28 |
| 1000 | 96.10 | 521.12 | 293.13 | 478.32 | 358.74 |
| 5000 | 116.49 | 603.04 | 339.21 | 553.52 | 415.14 |
| Infinity | 122.59 | 627.53 | 352.99 | 576.00 | 432.00 |
