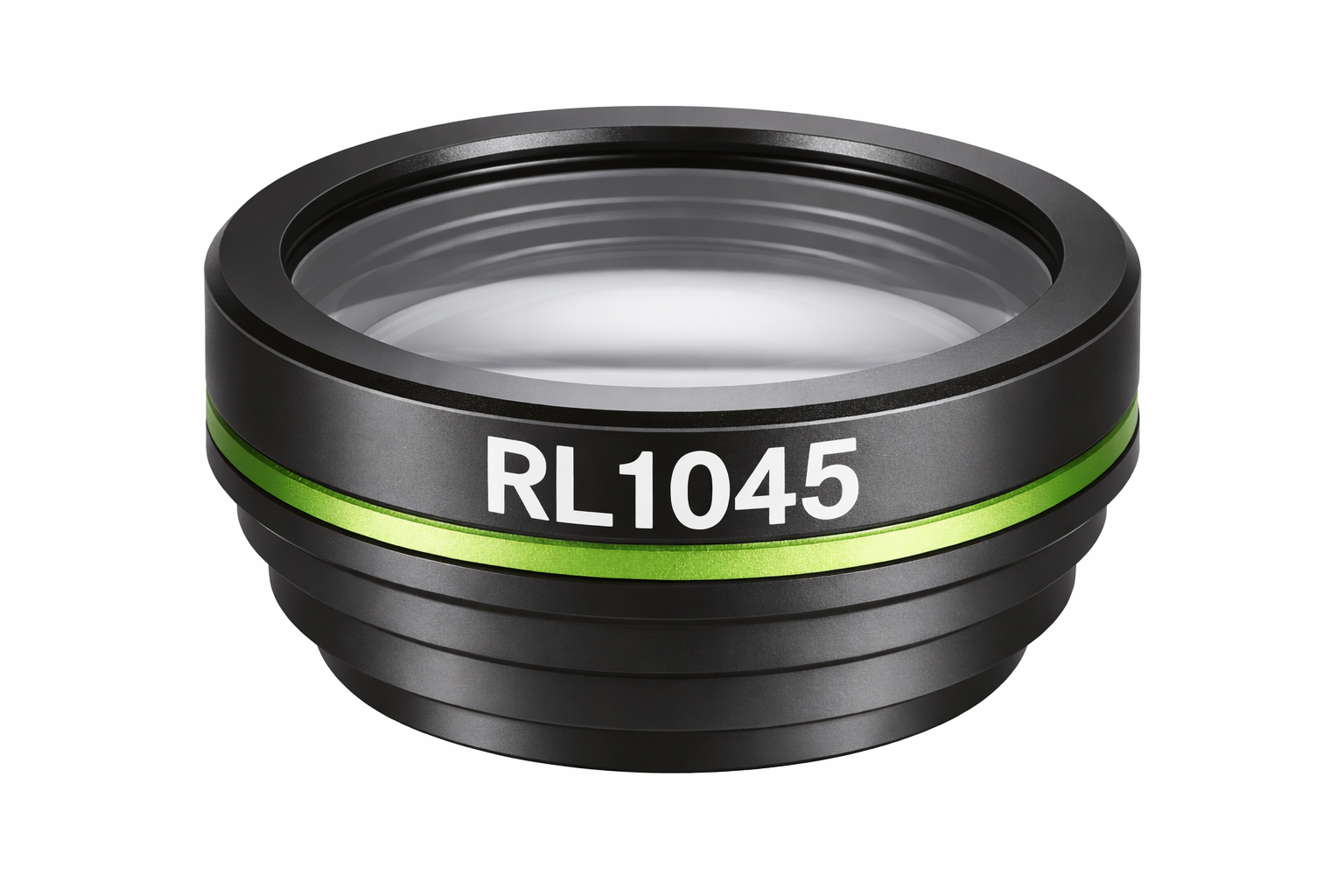

Relay Lens RL1045
Relay Lens RL1045
Key Features
- ① Ultra-compact lens design
- ② Large exit pupil supporting up to 18 mm diameter
- ③ Suitable for telephoto and periscope lens inspection
- ④ Suitable for array-based inspection
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL1045 | 45° | 10 mm | 18 mm | 0.2 kg | 400 – INF mm | < 0.45% | Φ30 × 12 mm |

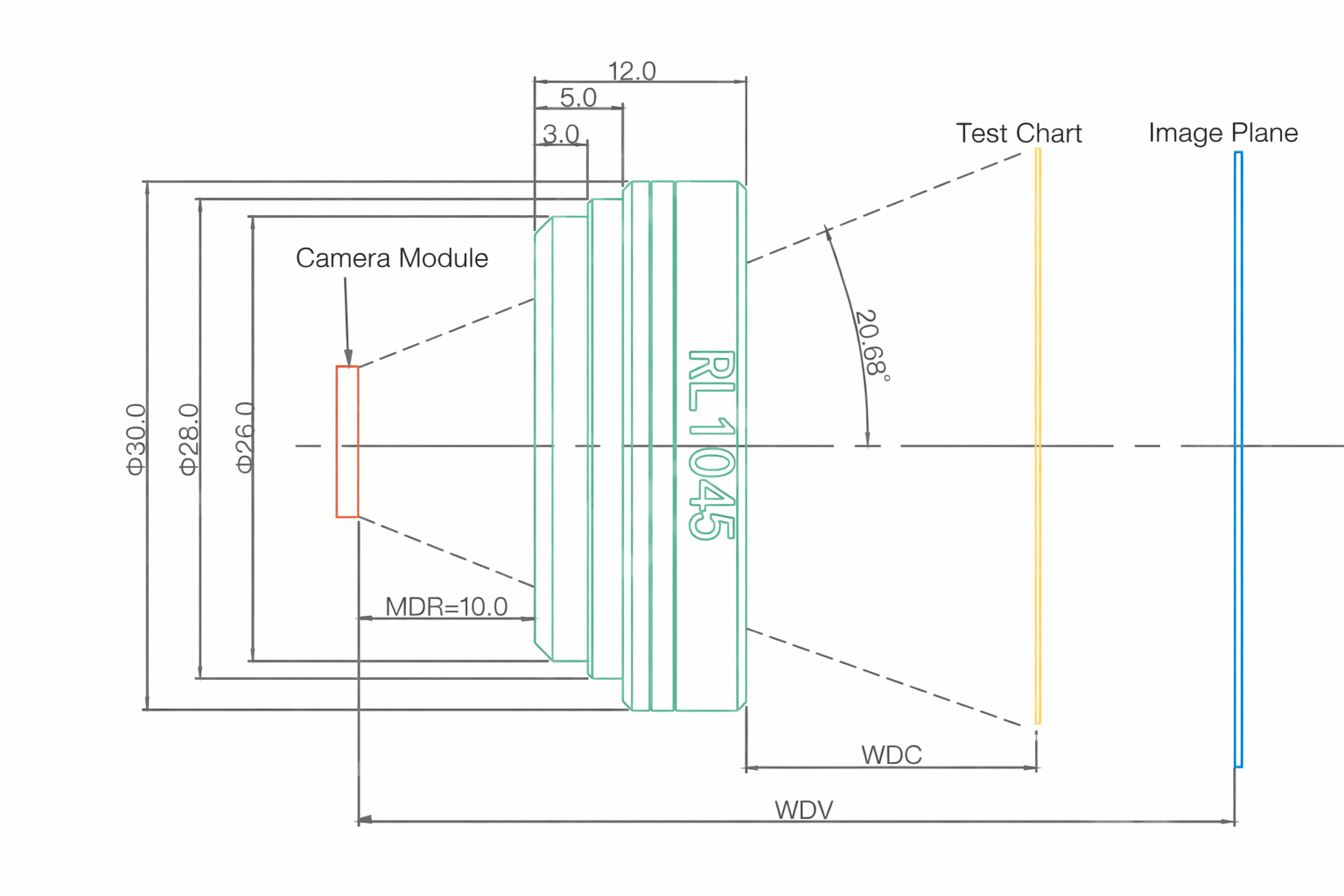

Mechanical Dimensions
* MDR: Mounting distance from camera module to the image-side of the relay lens WDV: Distance from camera module to the simulated image plane WDC: Distance from relay lens object side to the test chart
Test Chart Size at Maximum Angle
| WDV (mm) | WDC (mm) | Test Chart Size (L × W) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 400 | 191.55 | 143.20 | 80.55 | 131.44 | 98.58 |
| 1000 | 274.43 | 199.24 | 112.07 | 182.88 | 137.16 |
| 5000 | 352.15 | 251.79 | 141.63 | 231.12 | 173.34 |
| Infinity | 378.43 | 269.57 | 151.63 | 247.43 | 185.57 |
