Relay lens

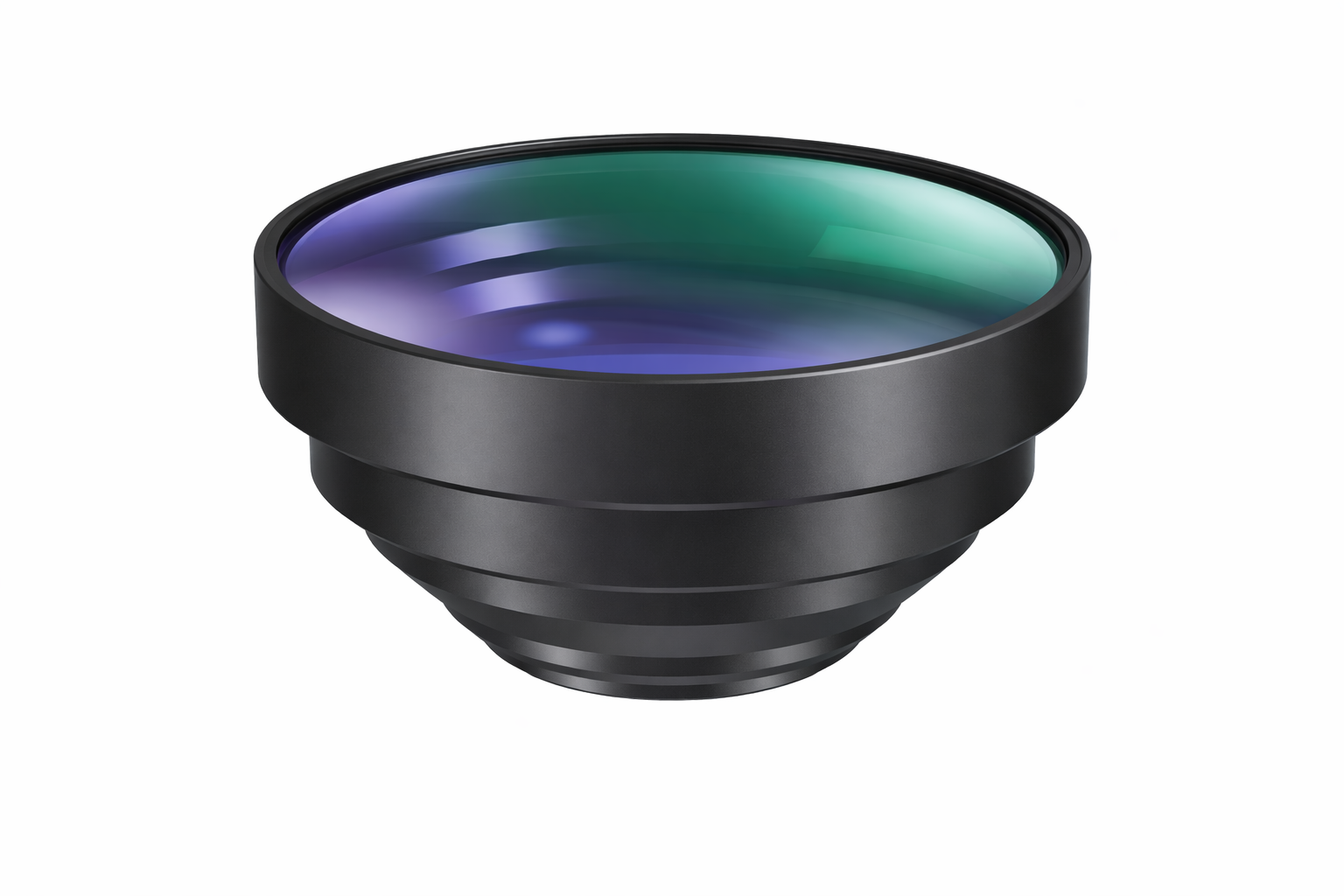

Relay Lens RL10120
Relay Lens RL10120
Product Features
- ① Wide-angle FOV with large exit pupil
- ② Suitable for end-of-line inspection of smartphone rear cameras
- ③ Low distortion
- ④ Compact test chart requirement with short inspection distance
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL10120 | 120° | 10mm | 7mm | 2.05kg | 5000-INFmm | 5% | Φ156x81.34mm |

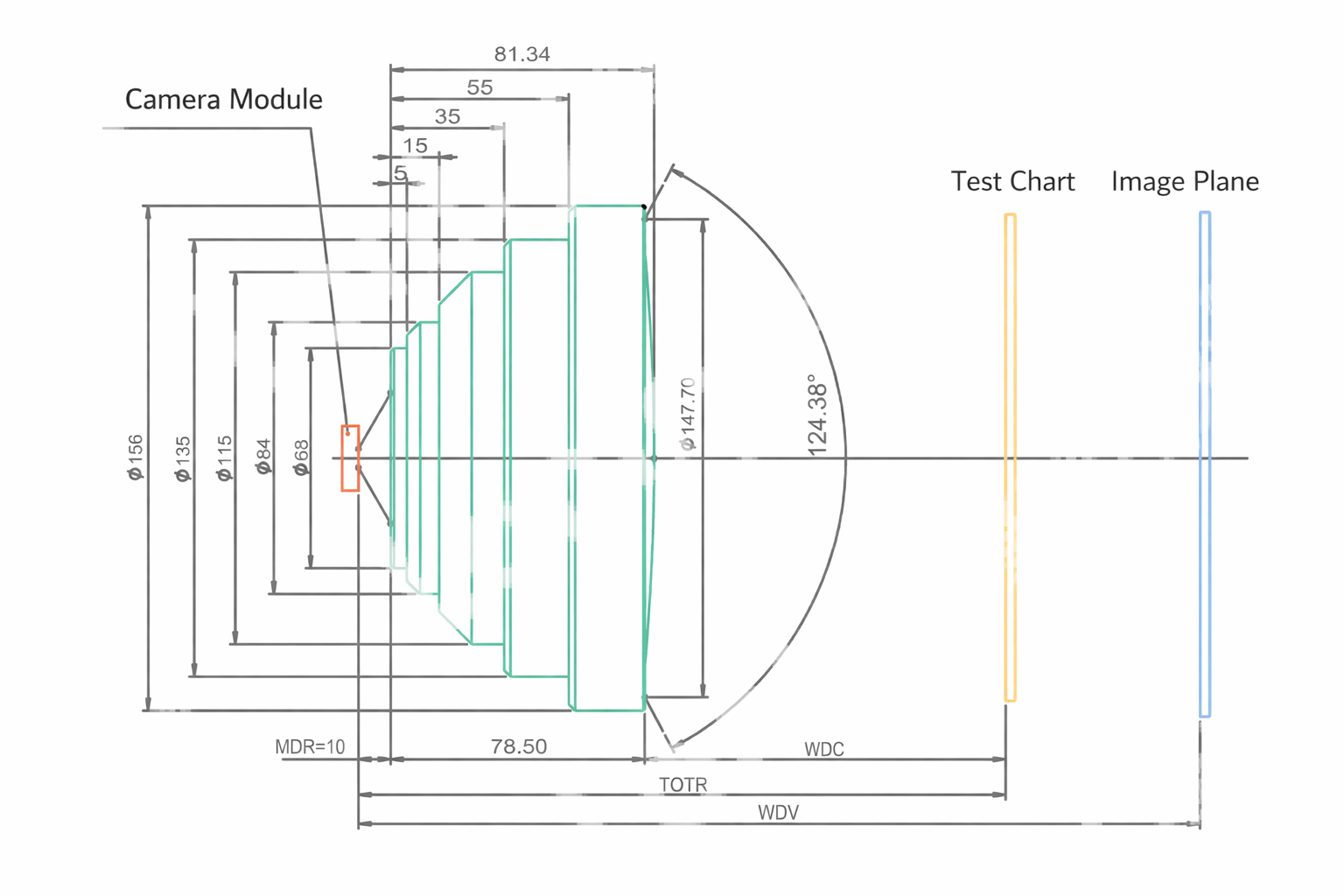

Mechanical Dimensions
*MDR: Installation distance from camera module to relay lens image-side
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
Test Chart Size at Maximum Field of View
| WDV (mm) | WDC (mm) | Test Chart Size (LxW) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera Module to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 5000 | 108.9 | 488.8 | 275 | 448.7 | 336.5 |
| 10000 | 111.8 | 498.3 | 280.3 | 457.4 | 343 |
| 20000 | 113.2 | 503.1 | 283 | 461.8 | 346.4 |
| Infinity | 114.7 | 508.1 | 285.8 | 466.3 | 349.8 |
