Relay lens

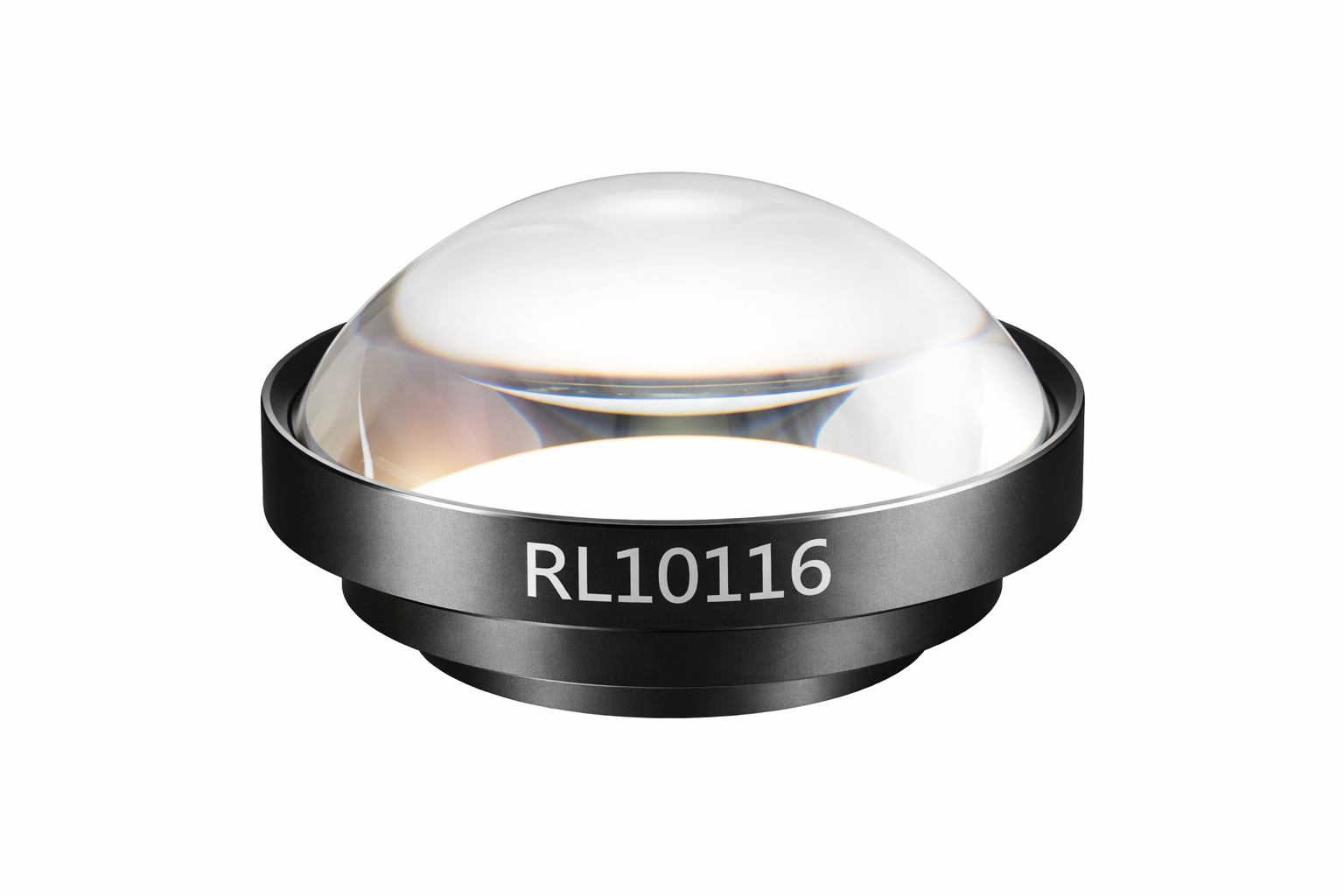

Relay Lens RL10116
Relay Lens RL10116
Product Features
- ① Wide-angle FOV with large exit pupil
- ② Suitable for wide-angle end-of-line inspection
- ③ Smartphone assembly applications
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL10116 | 116° | 10mm | 4.5mm | 0.51kg | 350-INF mm | <20% | Φ89.5x48.54mm |

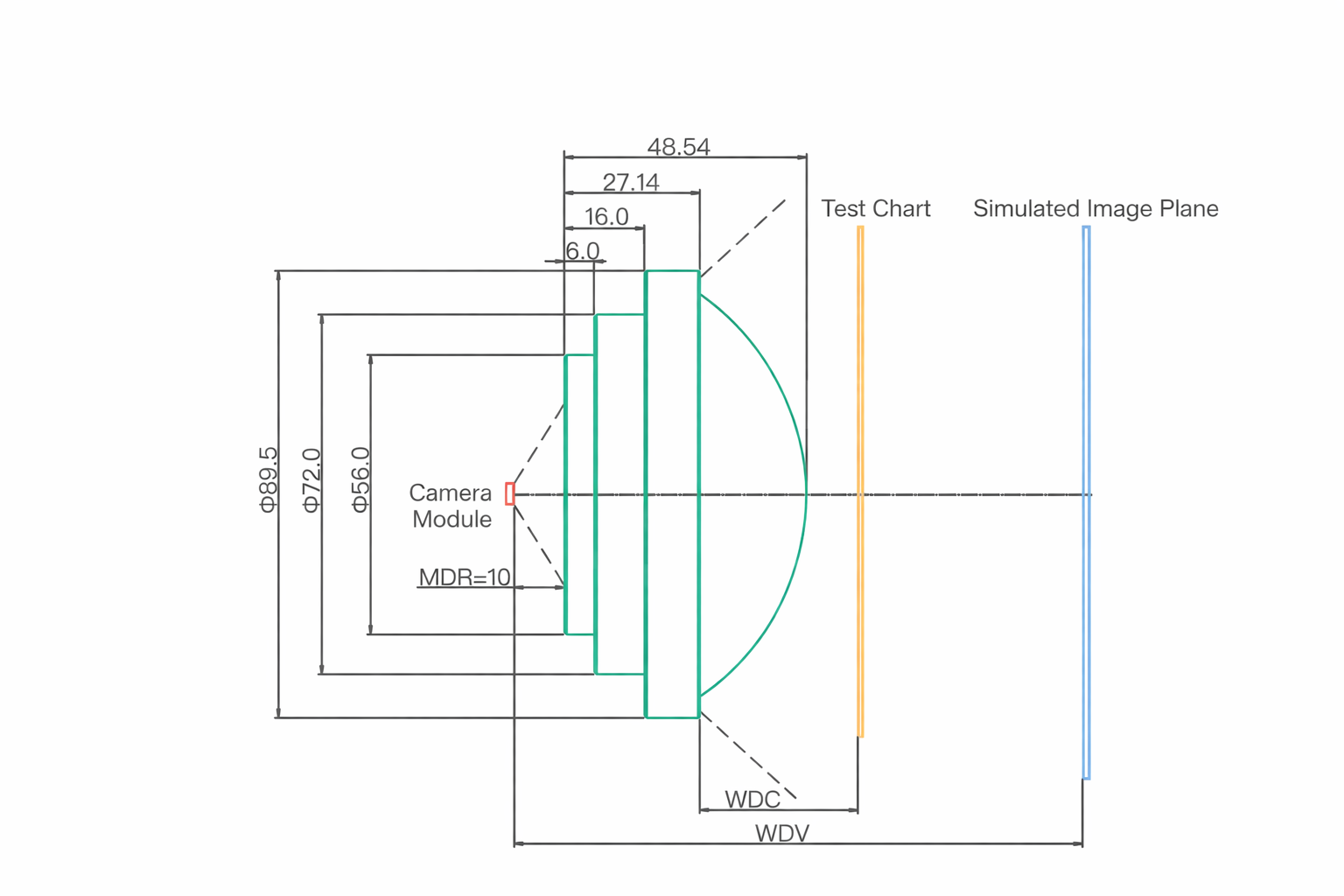

Mechanical Dimensions
*MDR: Installation distance from camera module to relay lens image-side
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
Test Chart Size at Maximum Field of View
| WDV (mm) | WDC (mm) | Test Chart Size (LxW) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera Module to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 400 | 213.18 | 415.22 | 233.56 | 381.12 | 285.84 |
| 1000 | 275.43 | 515.19 | 289.79 | 472.88 | 354.66 |
| 5000 | 322.57 | 590.93 | 332.40 | 542.40 | 406.80 |
| Infinity | 336.59 | 613.41 | 345.05 | 563.04 | 422.28 |
