Relay Lens RL09150B

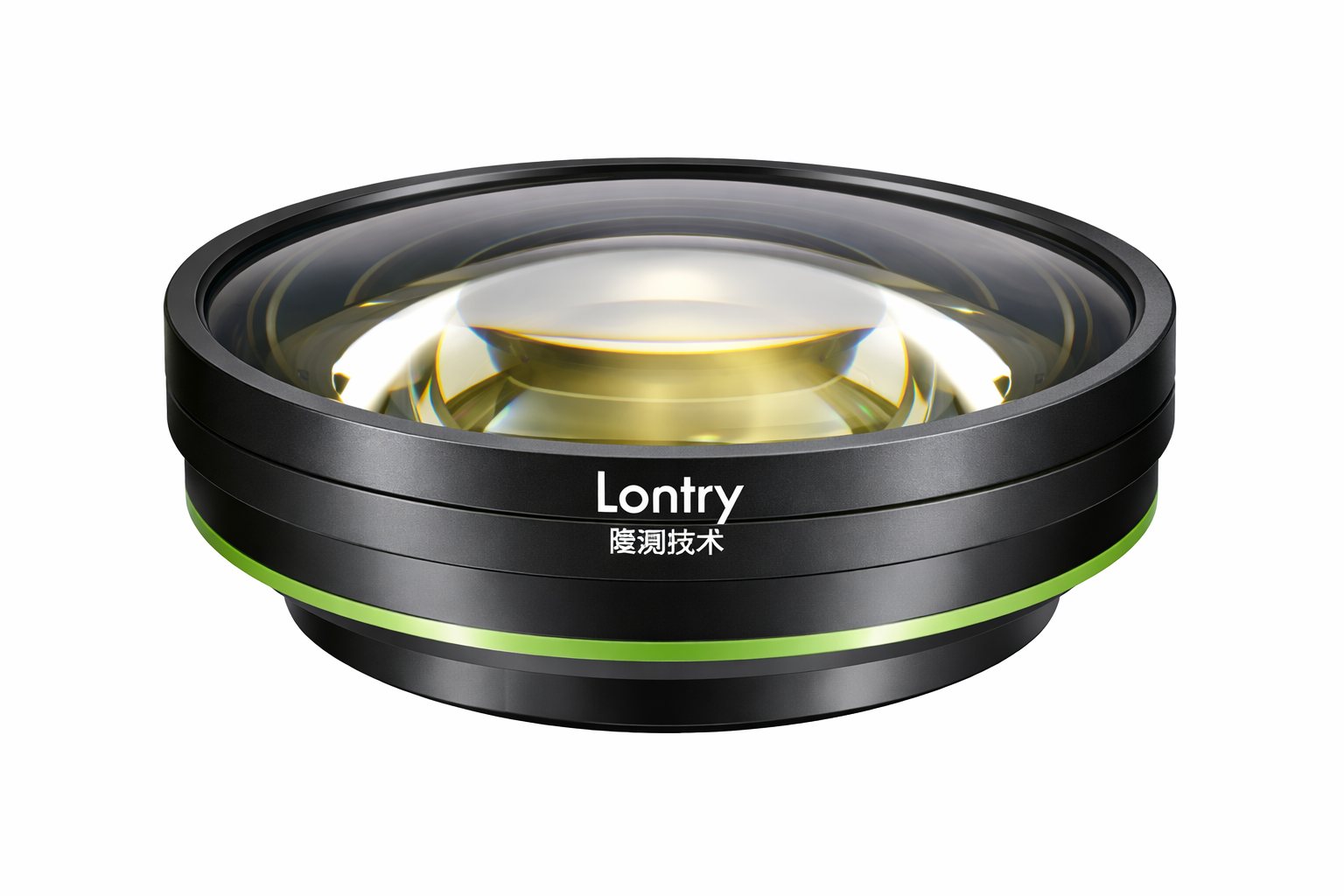

Relay Lens RL09150B
Key Features
- ① Supports ultra-wide-angle testing up to 150°
- ② Suitable for autofocus (AF) and end-of-line (EOL) inspection
Specifications
| Model | FOV | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL09150B | 150° | 9 mm | 5 mm | 4.2 kg | 400–INF mm | <60% | Φ185 × 75.48 mm |

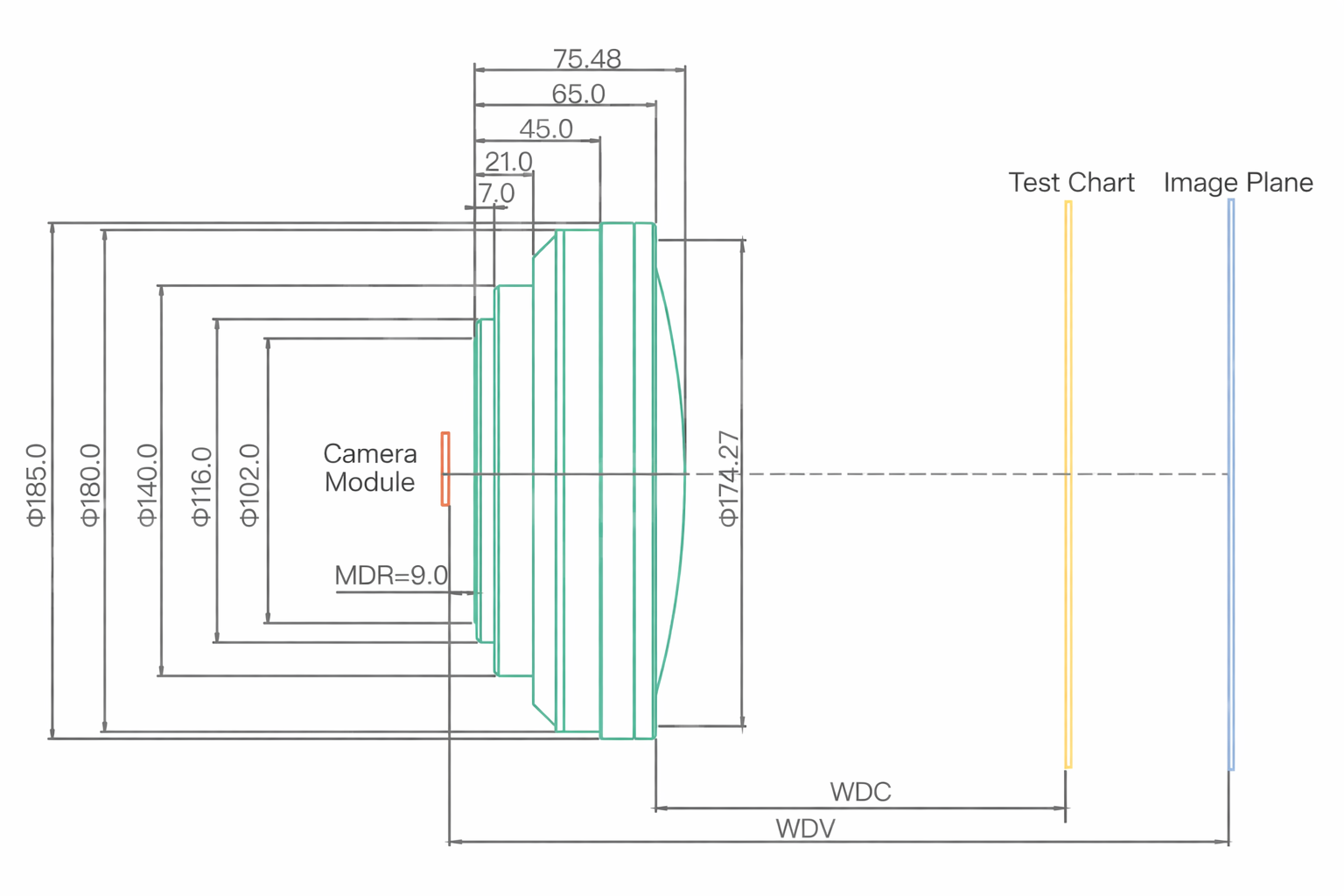

Mechanical Dimension Drawing
* MDR: Installation distance from camera module to relay lens image-side interface
WDV: Distance from camera module to simulated image position
WDC: Distance from relay lens object side to test chart
WDV: Distance from camera module to simulated image position
WDC: Distance from relay lens object side to test chart
Test Chart Size at Maximum Field Angle
| WDV (mm) | WDC (mm) | Test Chart Size (L × W) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera to Simulated Image Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 400 | 139.78 | 425.15 | 239.15 | 390.24 | 292.68 |
| 1000 | 168.55 | 482.07 | 271.16 | 442.48 | 331.86 |
| 5000 | 186.71 | 518.06 | 291.41 | 475.52 | 356.64 |
| Infinity | 191.60 | 527.74 | 296.85 | 484.40 | 363.30 |
