Relay lens

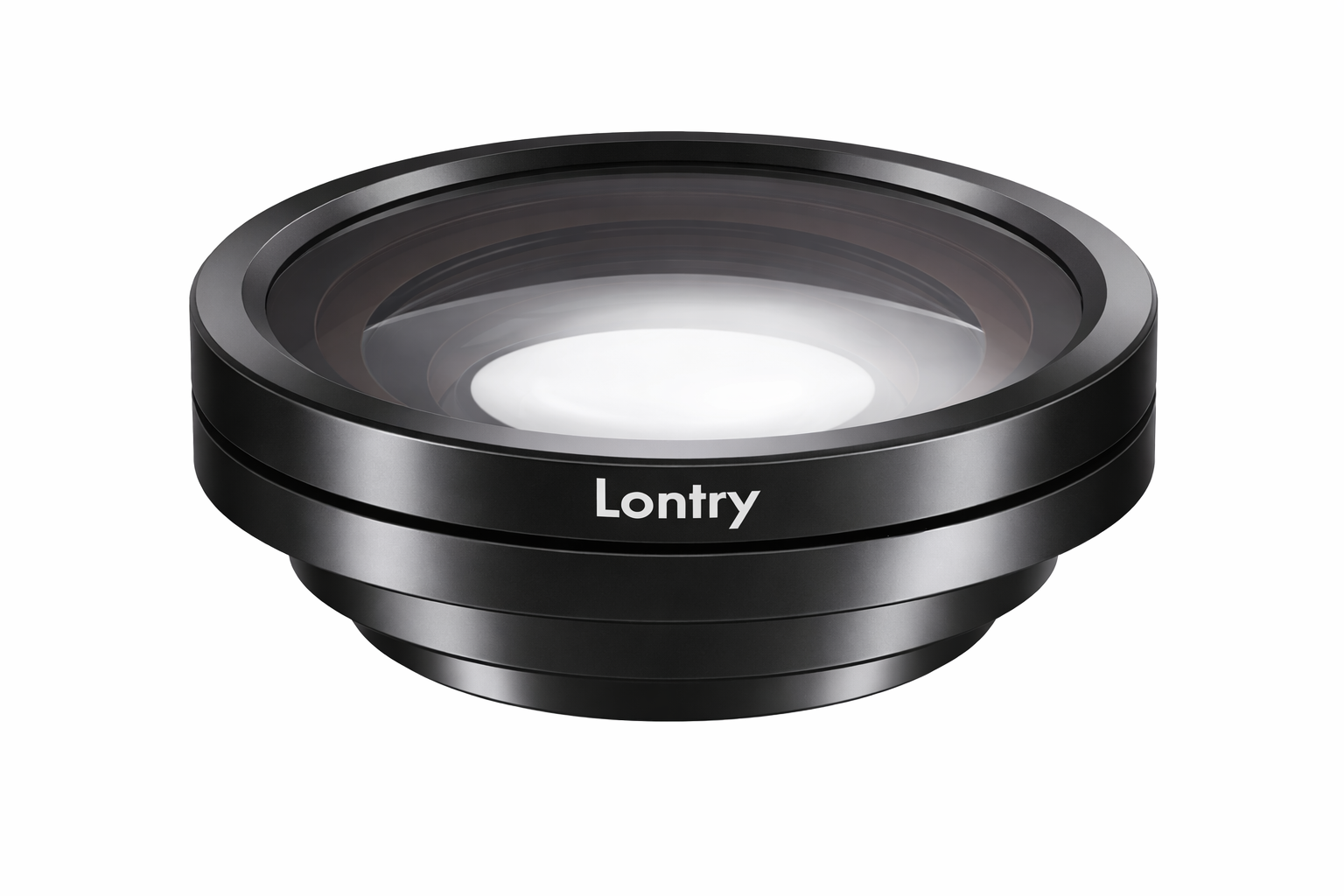

Relay Lens RL07120
Relay Lens RL07120
Product Features
- ① Compact lens body
- ② Low distortion
- ③ Supports imaging inspection up to 120°
- ④ Suitable for array-based inspection of end products
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| RL07120 | 120° | 7mm | 4mm | 0.16kg | 300-INFmm | <2% | Φ70x23.48mm |

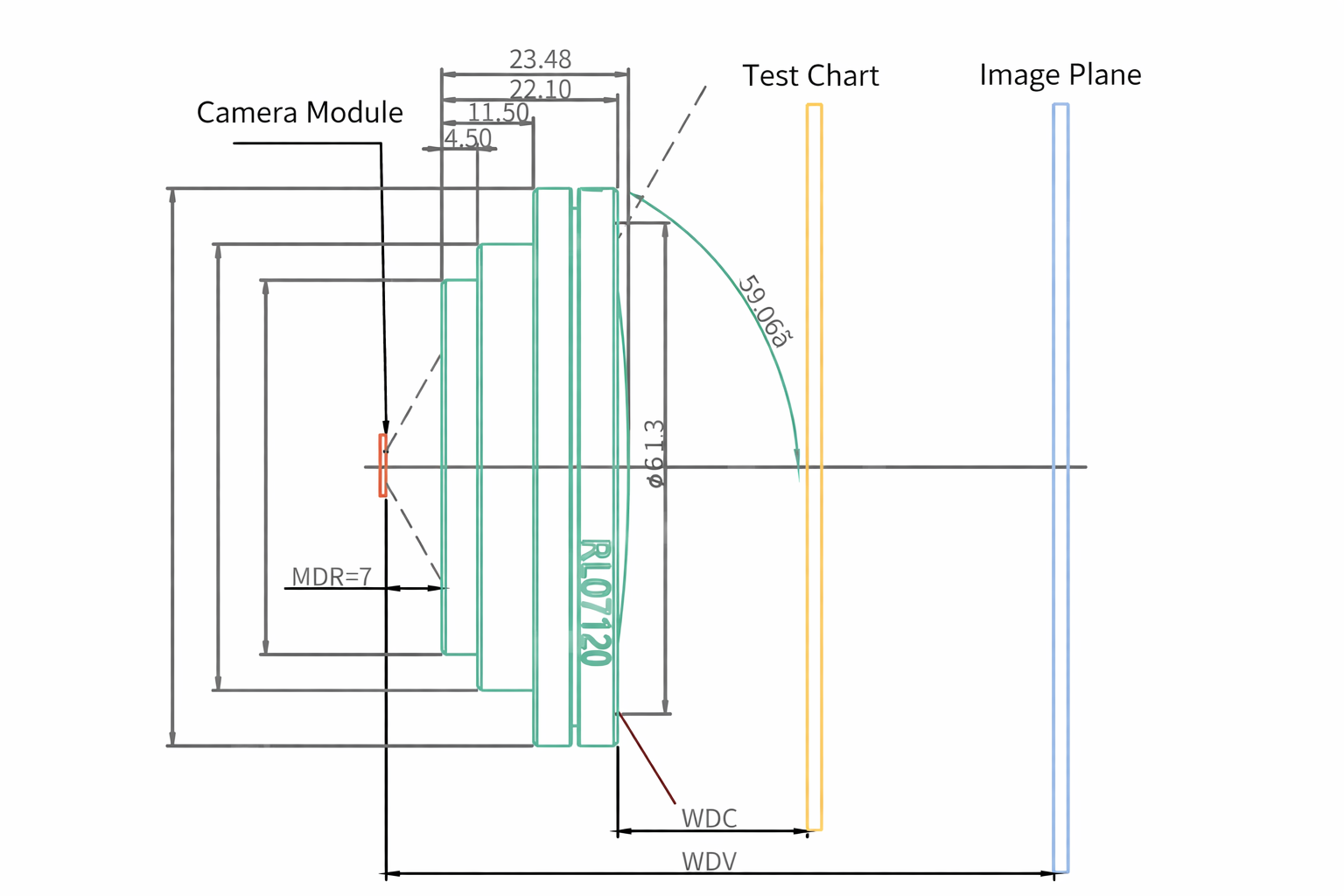

Mechanical Dimensions
*MDR: Installation distance from camera module to relay lens image-side
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
Test Chart Size at Maximum Field of View
| WDV (mm) | WDC (mm) | Test Chart Size (LxW) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera Module to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 400 | 156.29 | 508.48 | 286.02 | 466.72 | 350.04 |
| 1000 | 215.40 | 681.69 | 383.45 | 625.71 | 469.28 |
| 5000 | 266.49 | 831.40 | 467.70 | 763.10 | 572.30 |
| Infinity | 282.90 | 879.51 | 494.72 | 807.28 | 605.46 |
