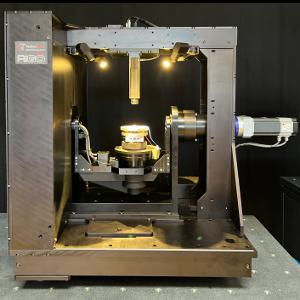

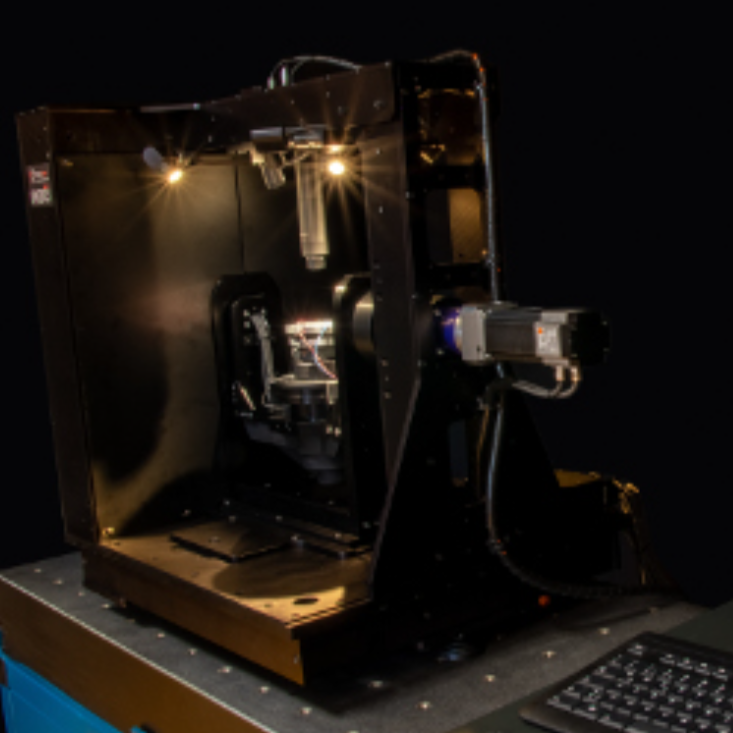

Goniophotometer RIGO801 Micro-LED
- Features
- High resolution ray files of Micro LEDs and conventional LEDs.
Description
The RiGO801 – Micro-LED goniopotometer was specially developed for measuring high-resolution ray data from very small LEDs. For high-precision measurement of light sources < 0.1 mm, an image resolution and position accuracy in the small single-digit µm range is required.
The RiGO801 – Micro-LED Goniophotometer has an image resolution of 1.2 µm / pixel and a position accuracy of the ray data of < 3 µm. This allows for the measurement of micro LEDs with very high quality starting from a size of approximately 30 µm.
| Basic technical data | |
|---|---|
| Size of the device under test | ≤ 100 mm (diameter) |
| Angular range | +/- 100 deg |
| Space requirements / weight | LxWxH = approx. 600 x 900 x 900 mm³, weight approx. 50 kg |
| Measuring position / movement | DUT upright, rotated in two directions |
| Resolution | 1.2 µm |
| Measuring camera | LMK 6-12 color |
| Position accuracy of the ray data | < 0.003 mm |
Ray file simulation
Examples of high resolution ray file simulation results
Sequence of views
Ray file simulated sequence of views
