RIGO801 Near-field Optics - Light Ray Chromatic Luminance Distribution RAY FILE Measurement System

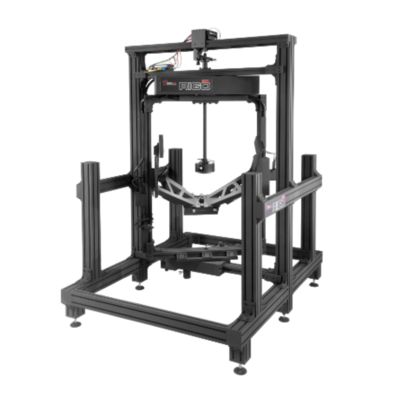

Goniophotometer RIGO801–LED
- Features
- Goniophotometer for measuring Ray Data of LEDs and other small light sources.
Description
This compact goniophotometer has been specially designed for the precise measurement of Ray Data from small light sources such as LEDs, OLEDs and modules. The positional accuracy of the rays is 0.01 mm, so that even very small LEDs can be measured with high quality.
As with all RiGO801 goniophotometers, the luminous intensity distribution, Ray File, and the luminous flux are also measured here. Spectral multi-channel measurements are supported with the filter wheel version (option) of our measuring cameras. Goniospectrometric measurements are carried out with a spectroradiometer (option).
The ray data are stored in the TechnoTeam file format TTR. For the conversion into all common ray data file formats we provide the free software Converter801.
| Basic technical data | |
|---|---|
| Size of the device under test | ≤ 200 mm (diameter) |
| Space requirements | LxWxH = approx. 700 x 700 x 1000 mm³ |
| Movement | The sensors are moved on a circular path around the measuring object (horizontal axis, theta). The DUT is rotated in an upright position on a vertical rotation axis (phi) |
| Measuring position | Upright and vertically rotating |
| Measuring camera | LMK 6-5 / LMK 6-5 color |
| Position accuracy of the ray data | < 0.01 mm |
Luminous intensity distribution
High angular resolution, fast measurement
Ray file measurement
High precision and angular resolution, fast
Goniospectrometric measurements
Spectral data, color coordinates, CRI, IES TM30-15
LED alignment
Coordinate system of the measured ray file
Test socket
Universal, easy mountable, exchangeable

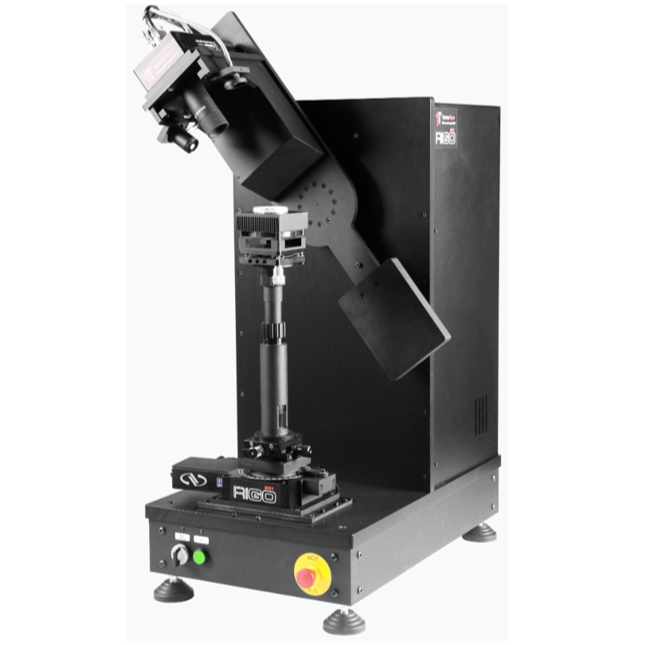

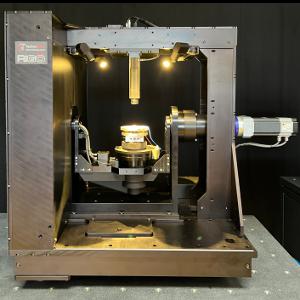

Side view
Compact tabletop device
