Colorimeter
PCM2X-102
Admesy ColorimeterPCM2X-102
0.00005 - 60000 cd/m²
Colorimeter with 10 mm spot
and high-sampling rate
for X, Y and Z
The new PCM2X-102 colorimeter features advanced low-noise electronics and XYZ high-speed sampling, enabling rapid and precise color and flicker measurements. Its innovative optical engine minimizes light loss, ensuring maximum accuracy and consistency in readings.

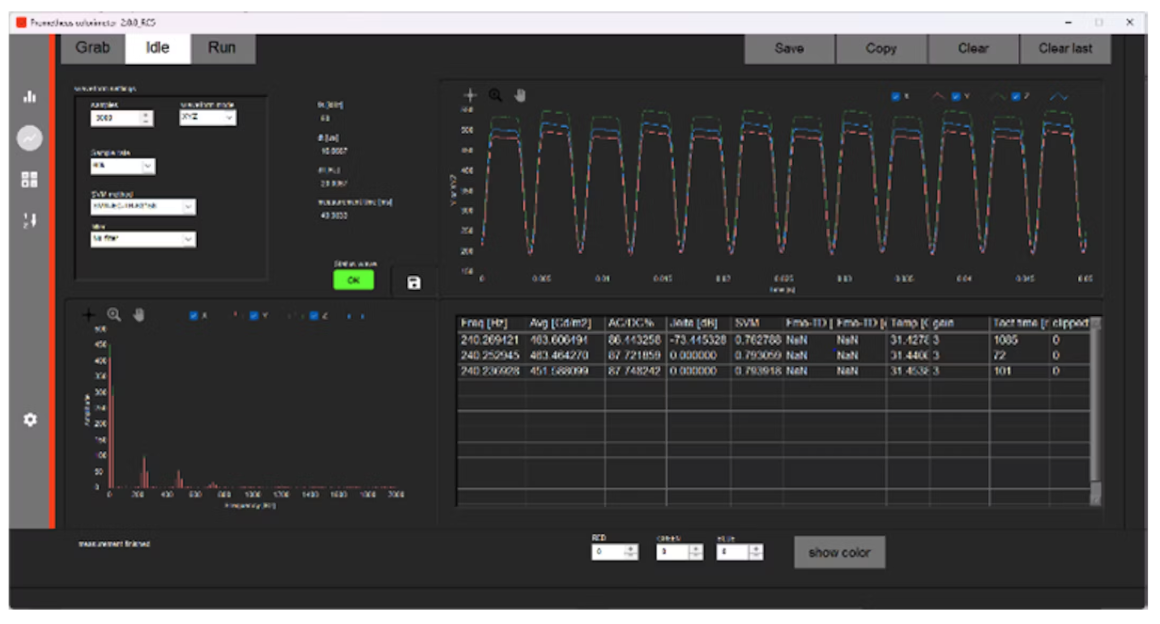

A key feature is its ability to measure flicker and waveform for X, Y, and Z components with up to 600k samples/s, providing deeper insights into complex signals even at extreme low luminance levels.
Highlights
Specification
Software
Insights
- High speed Flicker of 600 000 samples/s for X, Y and Z
- New patent pending optical engine with virtually no light loss
- Powerful MCU enables virtually any FFT based flicker calculation (Fma, Jeita, custom)
- Time based Fma flicker calculation, for example variable refresh rate (VRR)
- VSYNC hardware trigger
| Luminance range [cd/m²] | 0.00005 - 60,000 |
| Chromaticity range [cd/m²] | 0.0005 - 60,000 |
| Flicker Waveform (XYZ) | 600000 sampling frequency |
| Acceptance angle | ±8.5° |
| Measurement spot size | 10mm (@ 25mm working distance) |
| Firmware | Prometheus & PCM2 Colorimeter |
| Manual | Prometheus Colorimeter |
| Software | Prometheus Suite for Windows and macOS |
| Libusbmtc driver for Windows (alternative driver for Calman and ColourSpace) |
| Application Note | Choosing a Spectrometer or a Colorimeter for Display Measurement |
| Application Note | Choosing a Spectrometer or a Colorimeter for Display Measurement |
