Spectrometer

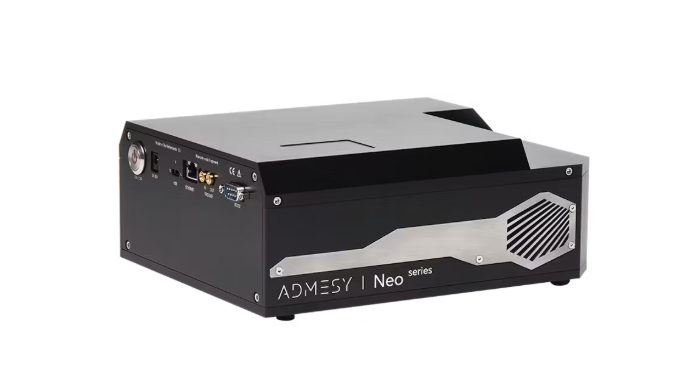

Neo High-End Display Spectrometer

Admesy Spectrometer


Neo High-End Display
Spectrometer

VIS 360 - 940 nm





The ultimate solution for radiance measurement

PCM2X-271 device

The Neo radiance spectroradiometer enhances the capability to measure radiance with high precision and flexibility, making it a valuable tool in scientific and industrial applications.

Quantifying the spectral radiance of light sources makes this spectrometer ideal for applications where accurate radiometric data is critical, such as in environmental monitoring, optical material analysis, and quality control in lighting industries.

Highlights
Specification
Software
Insights
  • Radiance wavelength calibration range 360 - 830 nm
  • Luminance range up to 10 000 cd/m²
  • High optical throughput design
  • Flicker function
  • Very low stray light
PCM2X-271 device
Spectral range 360 -940 nm
Radiance calibration range 360 - 830 nm
Wavelength accuracy ± 0.06 nm
Luminance range 0.0005 - 10 000 cd/m²
FWHM ~ 2.6 nm
Integration time 1.6 ms – 30 min
Firmware Neo
Manual Neo
Software Neo Suite for Windows and macOS

Application Note Choosing a Spectrometer or a Colorimeter for Display Measurement
