Relay lens

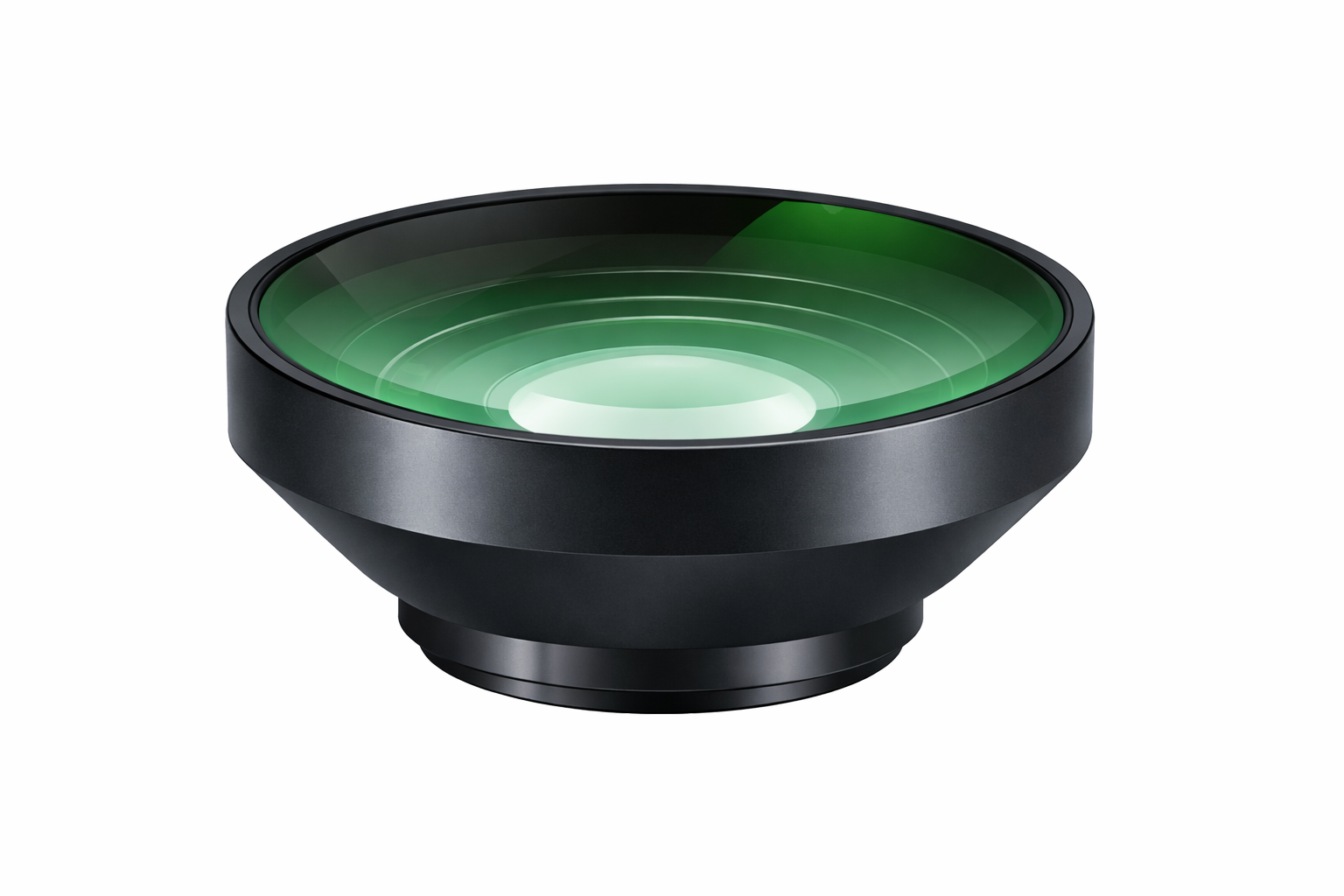

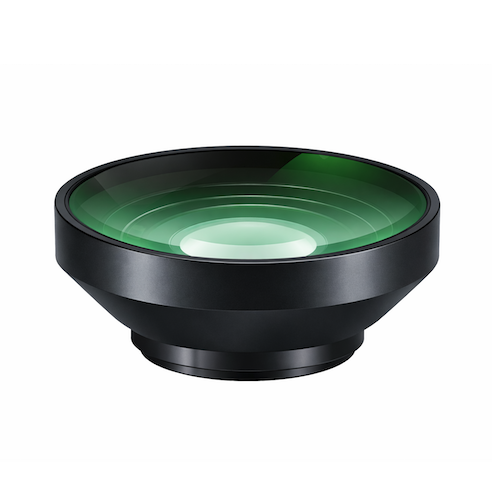

Relay Lens FL15130
Relay Lens FL15130
Key Features
- ① Designed for AA (Active Alignment) equipment
- ② 130° ultra-wide field of view
- ③ Ultra-low field curvature: 2 μm
- ④ Simulation distance range: 300–2000 mm
Specifications
| Model | FOV | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| FL15130 | 130° | 15 mm | 5 mm | 4.95 kg | 350–2000 mm | 0.27% | Φ198 × 96.5 mm |

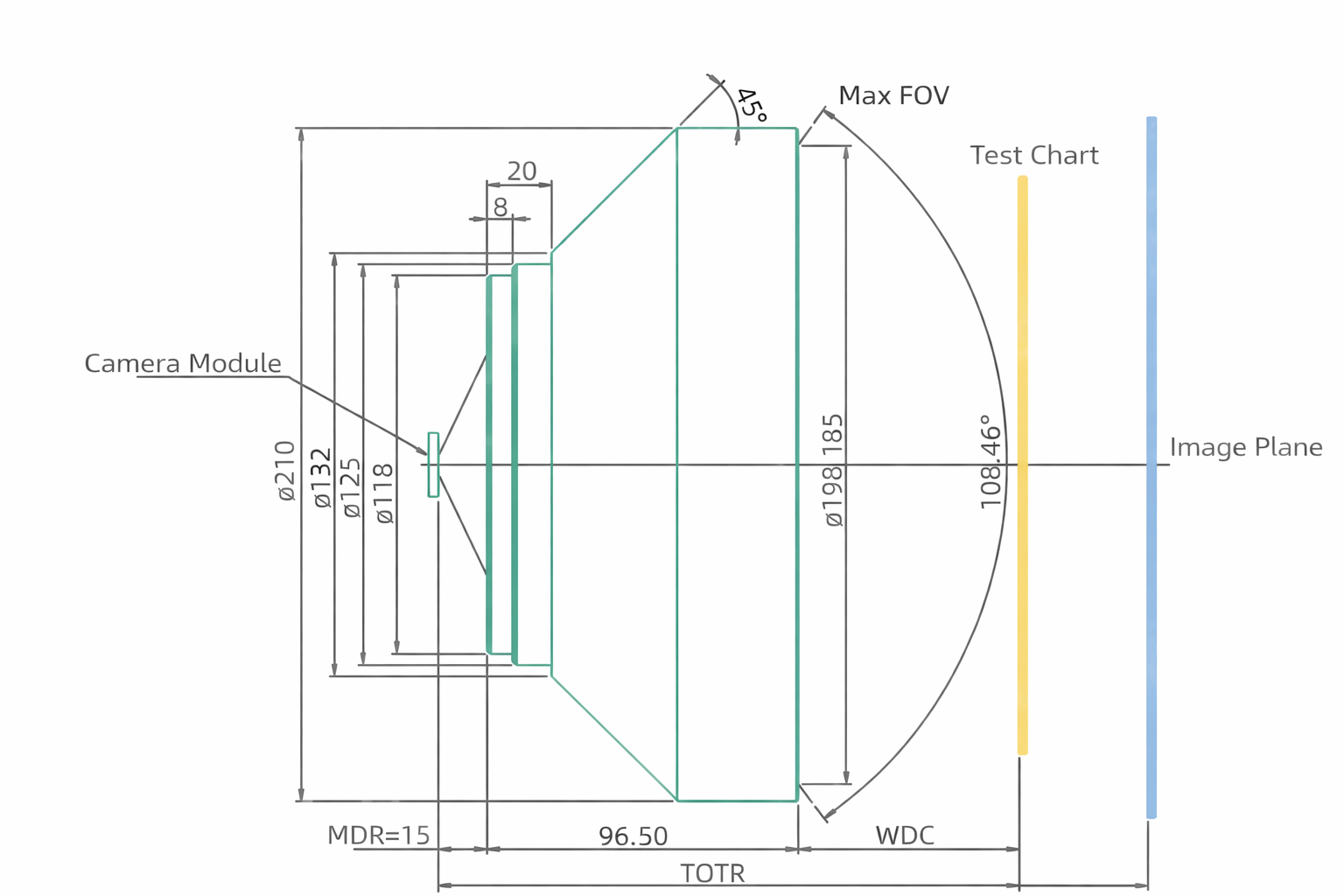

Mechanical Dimension Drawing
* MDR: Installation distance from camera module to relay lens image-side interface
WDV: Distance from camera module to simulated image position
WDC: Distance from relay lens object side to test chart
WDV: Distance from camera module to simulated image position
WDC: Distance from relay lens object side to test chart
Test Chart Size at Maximum Field Angle
| WDV (mm) | WDC (mm) | Test Chart Size (L × W) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera to Simulated Image Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 350 | 91.5 | 402.8 | 226.6 | 369.7 | 277.3 |
| 1000 | 146.1 | 540.9 | 304.2 | 496.4 | 372.3 |
| 1500 | 159.5 | 574.9 | 323.4 | 527.7 | 395.8 |
| 2000 | 166.8 | 593.4 | 333.8 | 544.7 | 408.5 |
