Relay lens

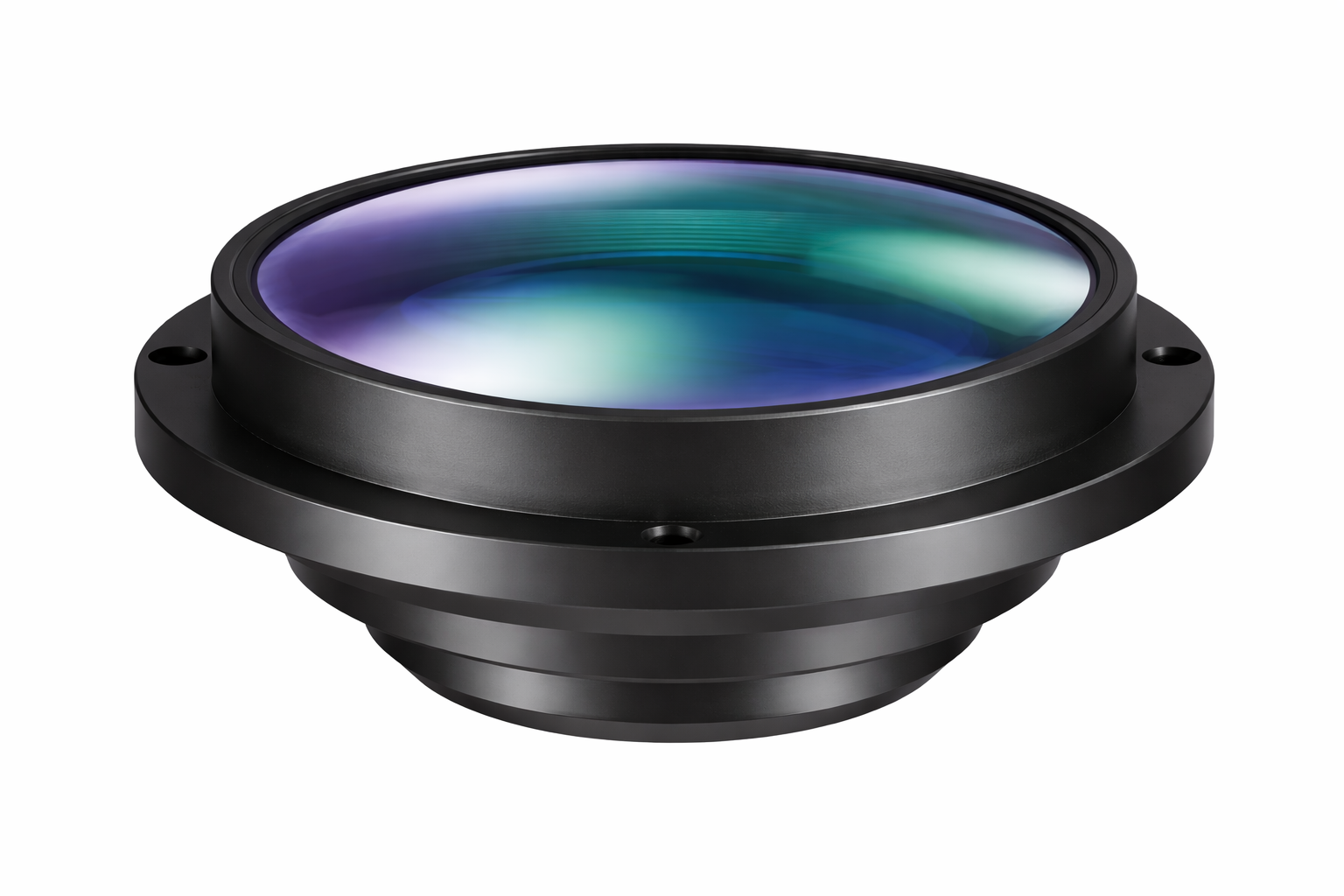

Relay Lens FL10120
Relay Lens FL10120
Product Features
- ① Wide-angle FOV with large exit pupil
- ② Suitable for end-of-line inspection of smartphone front cameras
- ③ Low distortion
- ④ Compact test chart requirement with short inspection distance
Specifications
| Model | Field of View | MDR | Exit Pupil Diameter | Weight | Simulation Distance Range | Distortion | Outline Dimensions |
|---|---|---|---|---|---|---|---|
| FL10120 | 120° | 10mm | 6mm | 1.27kg | 450-2000mm | 5% | Φ145x51.95mm |

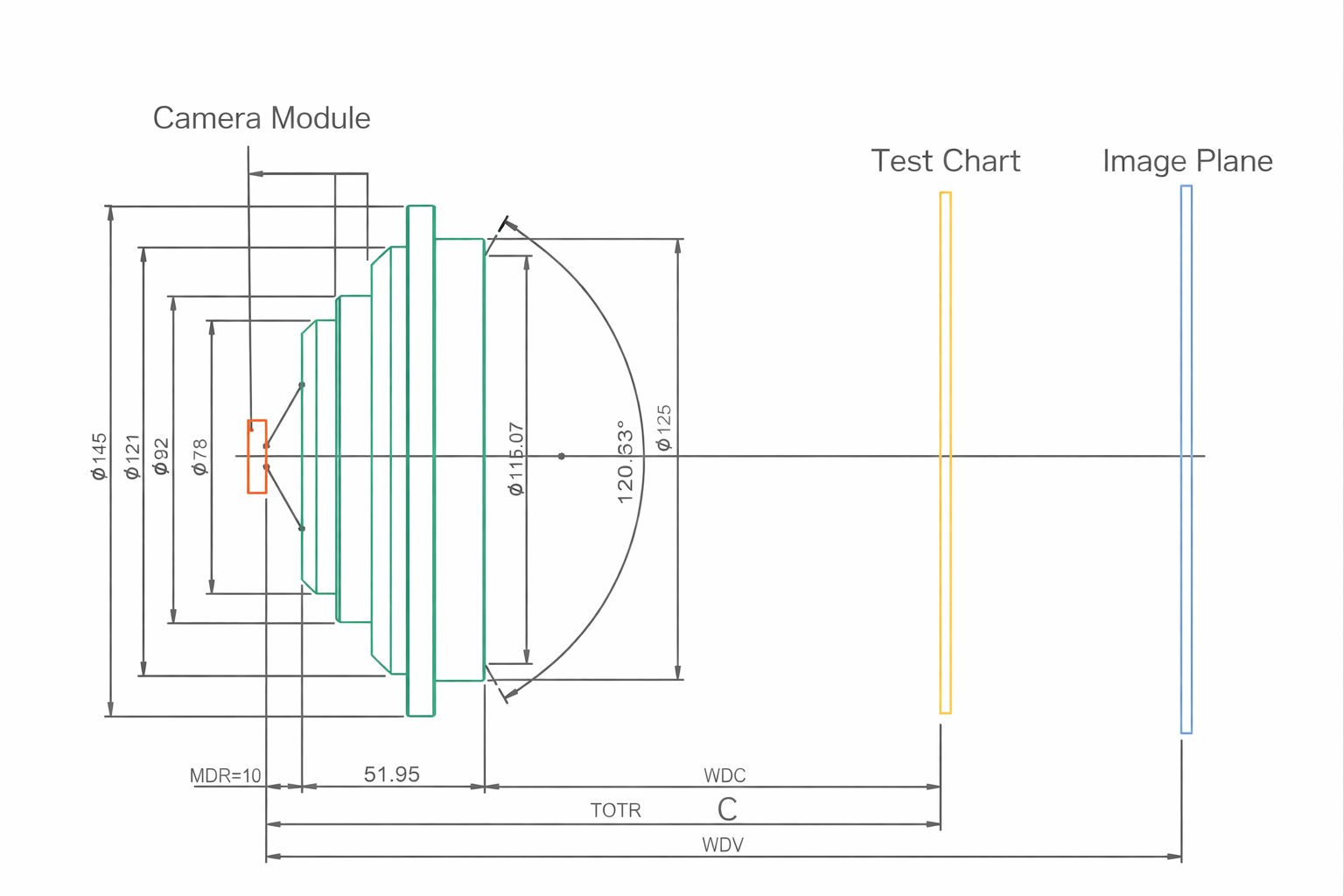

Mechanical Dimensions
*MDR: Installation distance from camera module to relay lens image-side
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
WDV: Distance from camera module to simulated image plane
WDC: Distance from relay lens object-side to test chart
Test Chart Size at Maximum Field of View
| WDV (mm) | WDC (mm) | Test Chart Size (LxW) | |||
|---|---|---|---|---|---|
| 16:9 Format | 4:3 Format | ||||
| Camera Module to Image Plane Distance | Relay Lens to Test Chart Distance | Length (mm) | Width (mm) | Length (mm) | Width (mm) |
| 450 | 100.21 | 405.4 | 228 | 372.2 | 279.1 |
| 1000 | 128.97 | 494 | 277.9 | 453.5 | 340.1 |
| 1500 | 138.93 | 524.8 | 295.2 | 481.8 | 361.3 |
| 2000 | 144.36 | 541.5 | 304.6 | 497.1 | 372.8 |
