Colorimeter

Colorimeter X 27 mm

Admesy Colorimeter


Colorimeter X 27 mm

0.0001 - 2 800 cd/m²




Fastest Colorimeter and Flicker Meter

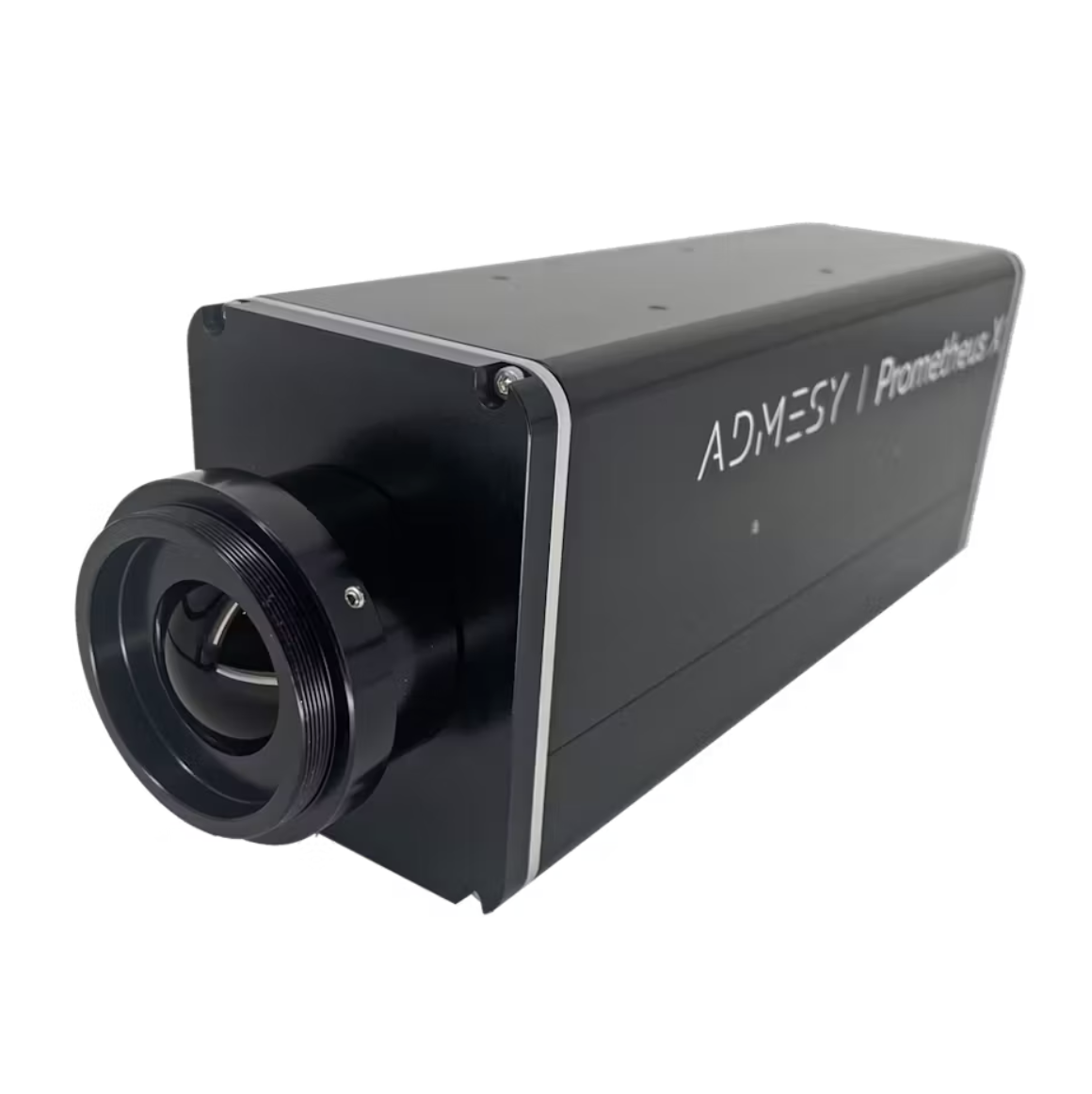

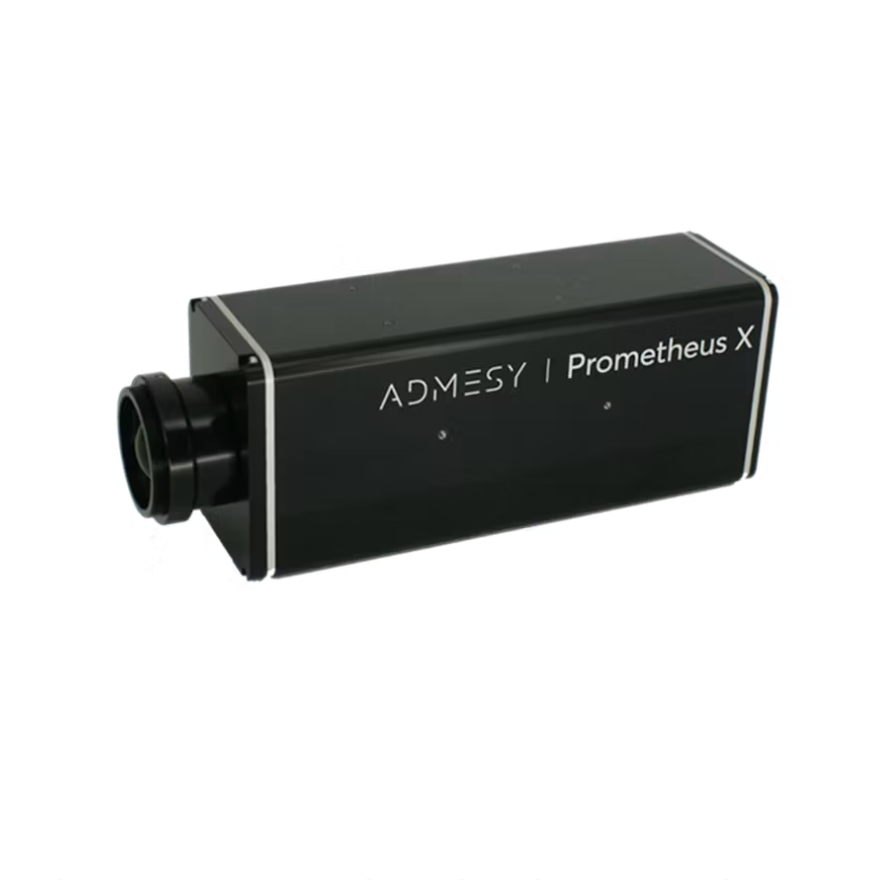

PCM2X-271 device

The Prometheus X combines the fastest colorimeter with a high-speed Y flicker channel capable of up to 800 000 samples per second. The integration of a colorimeter and an ultra-high sample rate waveform analyzer is unique.

This setup allows for the fastest and most accurate color measurement while capturing the signal waveform in the highest resolution possible.

Highlights
Specification
Software
Insights
  • Fast measurements, even at low luminance levels of 0.0001 cd/m² in just one second
  • Separate Y channel for detailed waveform analysis with up to 800 000 samples/s
  • CIE 1931 or CIE 170-2:2015 CMF available
  • Auto-range function
  • Directly supported in virtually any language
PCM2X-271 device
Luminance range [cd/m²] 0.0001 - 2 800 cd/m²
Chromaticity range [cd/m²] 0.001 cd/m² - 2 800 cd/m²
UHL mode[cd/m²] 20 000 cd/m²
Acceptance angle 10° (± 5°)
Measurement spot size 29.6 mm at 25 mm WD
Firmware Prometheus & PCM2 Colorimeter
Manual Prometheus Colorimeter
Software Prometheus Suite for Windows and macOS
  Libusbmtc driver for Windows (alternative driver for Calman and ColourSpace)
Application Note Choosing a Spectrometer or a Colorimeter for Display Measurement
