Curved Surface Displays
Measurement with Robot


Multi-Curved Display Optical Measurement Solution: By utilizing a Robot-controlled system in conjunction with the LMK image luminance meter, measuring the uniformity of complex curved surfaces becomes feasible. The main features include single-point and multi-point luminance measurement, overall uniformity, chromaticity, spectrum, viewing angle measurement, flicker, response time, Black Mura, and other characteristics.

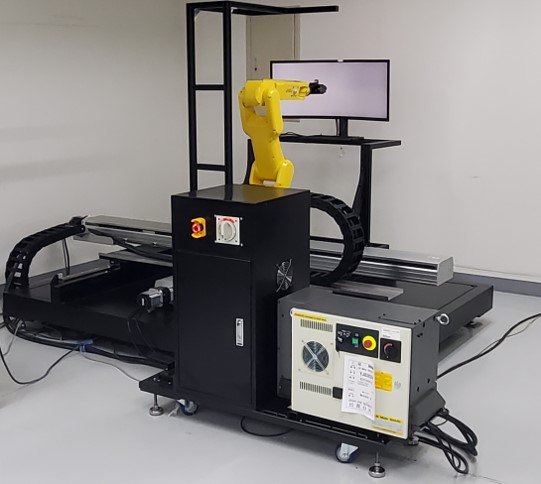

This system provides an optical characterization solution for evaluating multi-curved displays, particularly for automotive instrument panel displays. It is primarily designed for special curved surfaces, addressing the challenges posed by traditional flat display linear multi-axis measurement systems. Through the integration of a robotic arm and the seventh axis application, this system can be combined with single-point or imaging luminance meters to achieve a comprehensive solution for optical assessment of special curved surfaces.
