LMK 鏡頭
LMK 自動對焦鏡頭
LMK 6- 特點
- LMK 6-12 配備了新型鏡頭底座，可容納所有鏡頭，允許使用卡口簡化鏡頭安裝。電子觸點的額外放置允許更靈活地調整各種光學參數，如焦點。此外，物鏡的ID會自動讀出，並與LabSoft校準數據進行比較。這可確保在軟體中自動檢測到任何不正確的設置，並顯示警告消息。TechnoTeam提供一系列帶有EF / S卡口和電子控制對焦的鏡頭，可與LMK LabSoft的自動對焦功能一起使用。
- 單擊下面相應的LMK型號以獲取有關測量距離和視場角的具體資訊，這些資訊因相機型號而異。
| Lens | ||
|---|---|---|
| 14 mm |
x |
x |
| 24 mm |
x |
x |
| 50 mm |
x |
x |
| 85 mm |
x |
x |
| 135 mm |
x |
x |
| Camera | Available lenses |
|---|---|
| LMK 6-12 | 14 mm, 24 mm, 50 mm, 85 mm, 135 mm |
| LMK 6-30 | 14 mm, 24 mm, 50 mm, 85 mm, 135 mm |

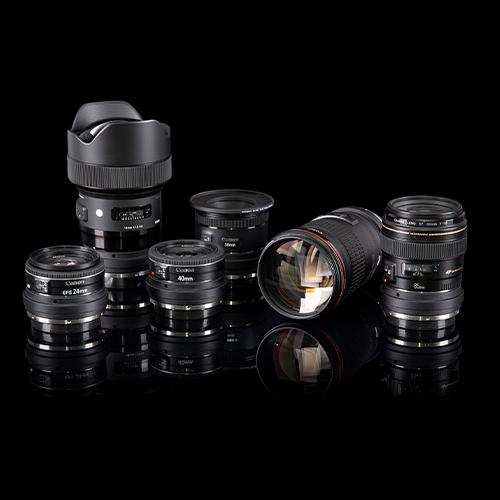

適用於 LMK 6-12 的自動對焦鏡頭
有多種自動對焦鏡頭可用於 LMK 6-12。
該範圍包括以下焦距：f' = 14 mm、24 mm、50 mm、85 mm 和 135 mm。
根據客戶要求，這些鏡頭可以在校準和交付之前通過指定對焦範圍和/或f值來定義。
| Lens type | TT AF 14 | TT AF 24 | TT AF 50 | TT AF 85 | TT AF 135 |
|---|---|---|---|---|---|
| Focus type | HSM | STM | STM | USM | USM |
| Focal length | 14 mm | 24 mm | 50 mm | 85 mm | 135 mm |
| Measuring distance | > 310 mm | > 160 mm | > 330 mm | > 830 mm | > 855 mm |
| Min. object field (H × V) | 422 mm × 268 mm | 56 mm × 40 mm | 62 mm × 45 mm | 110 mm × 80 mm | 70 mm × 51 mm |
| Field of view (H × V) | ≈ 53° × 40° | ≈ 32° × 24° | ≈ 16° × 12° | ≈ 9.0° × 6.5° | ≈ 6.0° × 4.5° |
| Lens length | 155 mm | 50 mm | 65 mm | 97 mm | 140 mm |
| TT AF 14 | Focus type: HSM Focal length: 14 mm Measuring distance: > 310 mm Min. object field (H × V): 422 mm × 268 mm Field of view (H × V): ≈ 53° × 40° Lens length: 155 mm |
| TT AF 24 | Focus type: STM Focal length: 24 mm Measuring distance: > 160 mm Min. object field (H × V): 56 mm × 40 mm Field of view (H × V): ≈ 32° × 24° Lens length: 50 mm |
| TT AF 50 | Focus type: STM Focal length: 50 mm Measuring distance: > 330 mm Min. object field (H × V): 62 mm × 45 mm Field of view (H × V): ≈ 16° × 12° Lens length: 65 mm |
| TT AF 85 | Focus type: USM Focal length: 85 mm Measuring distance: > 830 mm Min. object field (H × V): 110 mm × 80 mm Field of view (H × V): ≈ 9.0° × 6.5° Lens length: 97 mm |
| TT AF 135 | Focus type: USM Focal length: 135 mm Measuring distance: > 855 mm Min. object field (H × V): 70 mm × 51 mm Field of view (H × V): ≈ 6.0° × 4.5° Lens length: 140 mm |
適用於 LMK 6-30 的自動對焦鏡頭
有多種自動對焦鏡頭可用於 LMK 6-30。
該範圍包括以下焦距：f' = 14 mm、24 mm、50 mm、85 mm 和 135 mm。
根據客戶要求，這些鏡頭可以在校準和交付之前通過指定對焦範圍和/或f值來定義。
| Lens type | TT AF 14 | TT AF 24 | TT AF 50 | TT AF 85 | TT AF 135 |
|---|---|---|---|---|---|
| Focus type | HSM | USM | USM | USM | HSM |
| Focal length | 14 mm | 24 mm | 50 mm | 85 mm | 135 mm |
| Measuring distance | > 210 mm | > 235 mm | > 425 mm | > 825 mm | > 860 mm |
| Min. object field (H × V) | 145 mm × 106 mm | 125 mm × 93 mm | 144 mm × 107 mm | 173 mm × 129 mm | 109 mm × 82 mm |
| Field of view (H × V) | ≈ 73° × 58° | ≈ 50° × 38° | ≈ 24° × 18° | ≈ 15° × 11° | ≈ 9.6° × 7.1° |
| Lens length | 155 mm | 112 mm | 92 mm | 97 mm | 140 mm |
| TT AF 14 | Focus type: HSM Focal length: 14 mm Measuring distance: > 210 mm Min. object field (H × V): 145 mm × 106 mm Field of view (H × V): ≈ 73° × 58° Lens length: 155 mm |
| TT AF 24 | Focus type: USM Focal length: 24 mm Measuring distance: > 235 mm Min. object field (H × V): 125 mm × 93 mm Field of view (H × V): ≈ 50° × 38° Lens length: 112 mm |
| TT AF 50 | Focus type: USM Focal length: 50 mm Measuring distance: > 425 mm Min. object field (H × V): 144 mm × 107 mm Field of view (H × V): ≈ 24° × 18° Lens length: 92 mm |
| TT AF 85 | Focus type: USM Focal length: 85 mm Measuring distance: > 825 mm Min. object field (H × V): 173 mm × 129 mm Field of view (H × V): ≈ 15° × 11° Lens length: 140 mm |
| TT AF 135 | Focus type: HSM Focal length: 135 mm Measuring distance: > 860 mm Min. object field (H × V): 109 mm × 82 mm Field of view (H × V): ≈ 9.6° × 7.1° Lens length: 140 mm |
